Parking Operation Stops and ! System cannot guide under current conditions. is Displayed (No DTC is Output)

PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: Parking Operation Stops and "! System cannot guide under current conditions." is Displayed (No DTC is Output)
- Parking Operation Stops and "! System cannot guide under current conditions." is Displayed (No DTC is Output)

INSPECTION PROCEDURE

NOTICE:
* When "System initializing" is displayed on the display and navigation module display after the cable is disconnected from the negative (-) battery terminal, correct the steering angle neutral point Initialization.
* Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the advanced parking guidance system may be needed Calibration.

PROCEDURE

1. CHECK TIRE

(a) Check the tire size, tire pressure and tire wear.

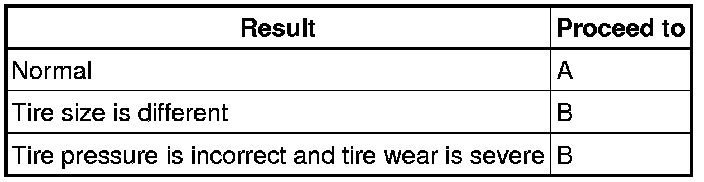

Result





B -- ADJUST TIRE PRESSURE OR REPLACE TIRE
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (WHEEL ODOMETER INFORMATION)

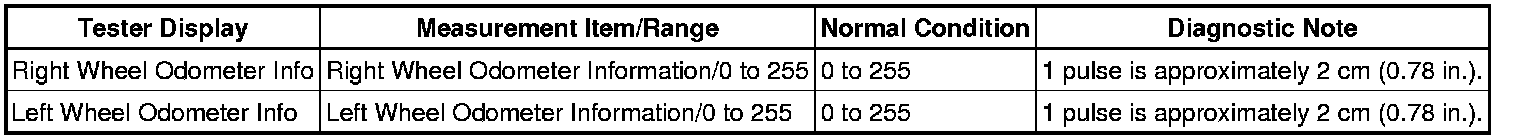

(a) Use the Data List to check if the wheel odometer is functioning properly Advanced Parking Guidance System.

Advanced Parking Guidance System

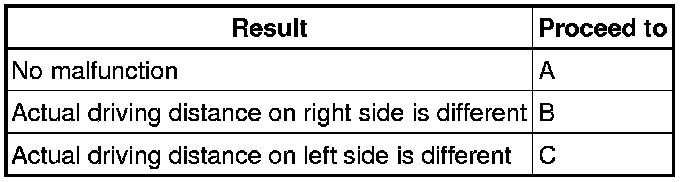

Result





B -- REPLACE REAR SPEED SENSOR RH Removal

C -- REPLACE REAR SPEED SENSOR LH Removal

A -- REPLACE PARKING ASSIST ECU Removal
