Pre-Collision System (w/ Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): TERMINALS OF ECU

1. CHECK SEAT BELT CONTROL ECU

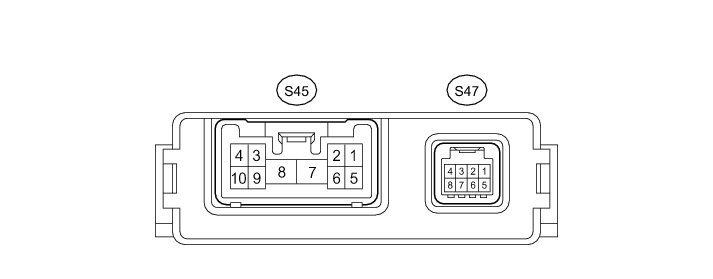

(a) Disconnect the S45 and S47 ECU connectors.

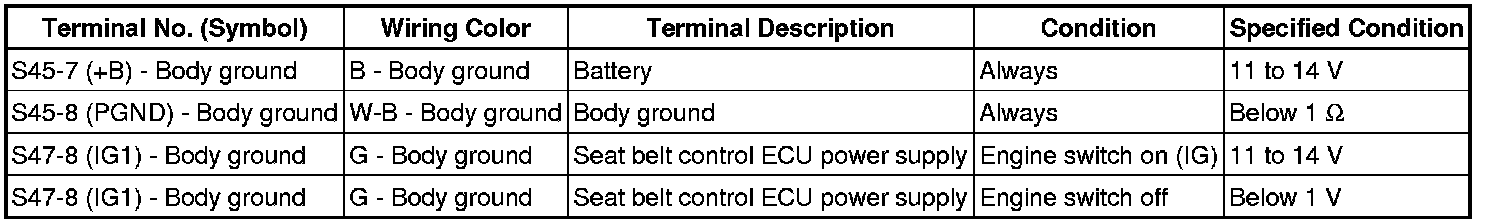

(b) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the S45 and S47 connectors.

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the ECU may be malfunctioning.

2. CHECK DRIVING SUPPORT ECU

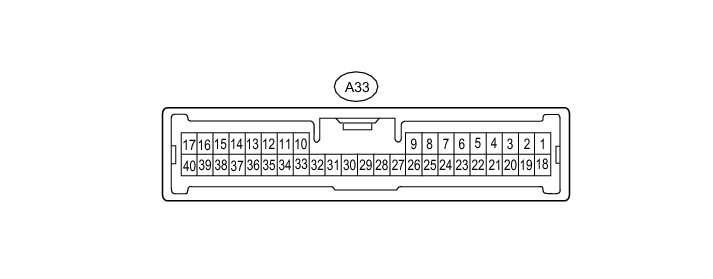

(a) Disconnect the A33 ECU connector.

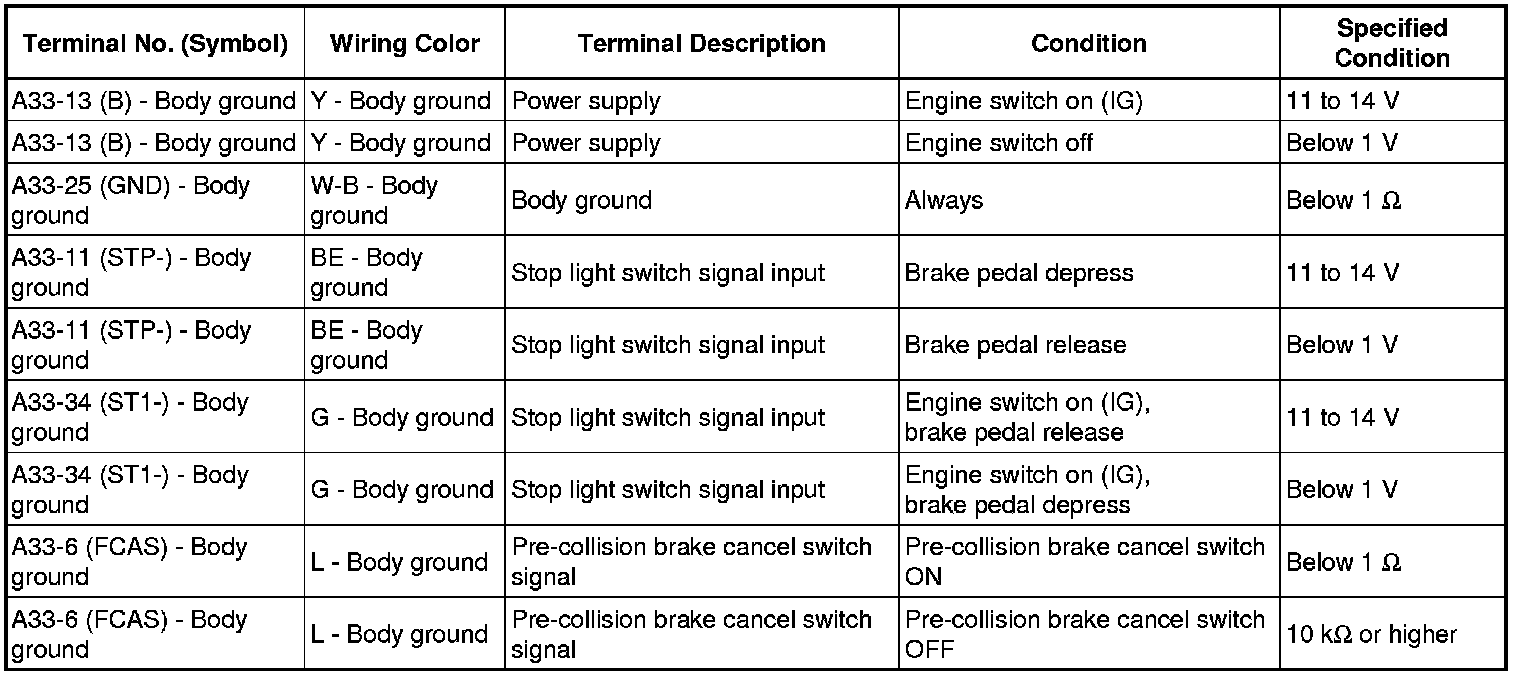

(b) Measure the voltage and resistance according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.

3. CHECK OBJECT RECOGNITION ECU

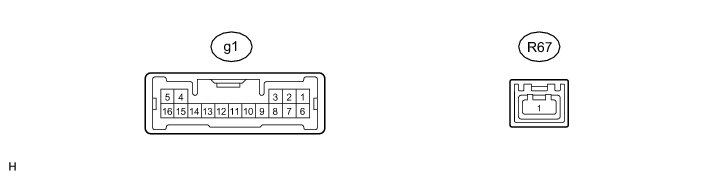

(a) Disconnect the g1 ECU connector.

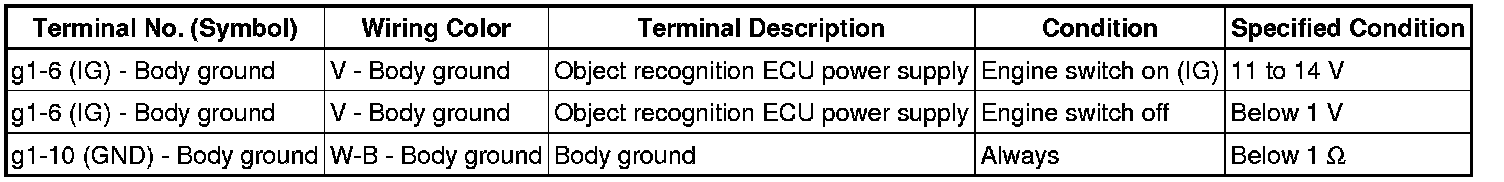

(b) Measure the resistance and voltage according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction on the wire harness side.
