Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

NEXT -- Continue to next step.

3. CHECK DTC OF NAVIGATION SYSTEM

(a) Refer to the DTC check/clear procedures for the navigation system.

HINT
For navigation systems (for DVD), refer to the following procedures Navigation System (for HDD).

For navigation systems (for HDD), refer to the following procedures Navigation System (for HDD).

Result





B -- DTC IS OUTPUT (Go to navigation system)
A -- Continue to next step.

4. PROBLEM SYMPTOM CONFIRMATION

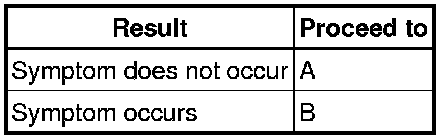

Result





B -- SYMPTOM OCCURS (Go to step 6)
A -- Continue to next step.

5. SYMPTOM SIMULATION

NEXT -- Continue to next step.

6. CHECK IF SAME SYMPTOM APPEARS IN NAVIGATION SYSTEM

(a) Refer to the navigation system.

HINT
For navigation systems (for DVD), refer to the following table Problem Symptoms Table.

For navigation systems (for HDD), refer to the following table Problem Symptoms Table.

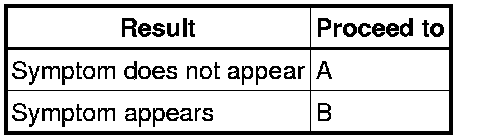

Result





B -- SYMPTOM APPEARS (FOLLOW THE NAVIGATION SYMPTOM CHART TO PERFORM TROUBLESHOOTING)
A -- Continue to next step.

7. PROBLEM SYMPTOMS TABLE

(a) Refer to the problem symptoms table Intuitive Parking Assist System.

Result





B -- CORRESPONDING SYMPTOM EXISTS (Go to step 9)
A -- Continue to next step.

8. BASED ON MALFUNCTION SYMPTOM, PERFORM TROUBLESHOOTING BELOW

(a) Terminals of ECU Rear View Monitor System (w/o Navigation System)

NEXT -- Continue to next step.

9. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

10. CONFIRMATION TEST

NEXT -- END
