Fail-Safe Chart





PARK ASSIST / MONITORING: ADVANCED PARKING GUIDANCE SYSTEM: FAIL-SAFE CHART

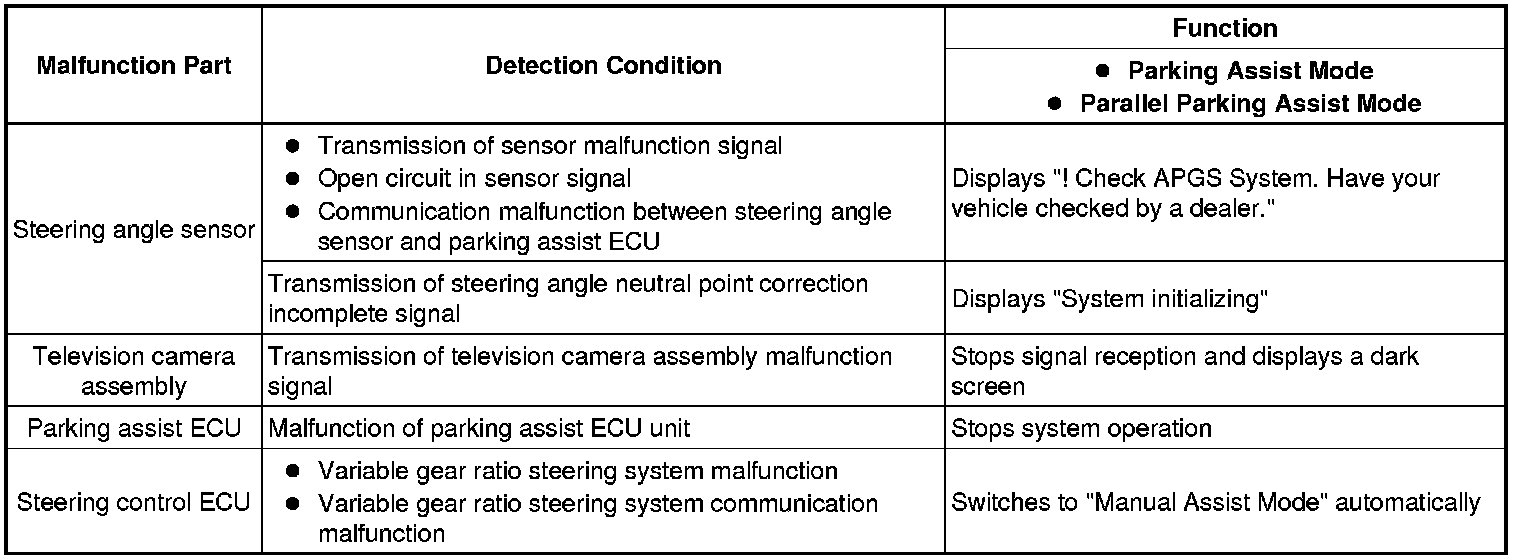

If the parking assist ECU detects a malfunction, the fail-safe functions shown in the table below are activated.
