Clearance Warning ECU Power Source Circuit

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: Clearance Warning ECU Power Source Circuit
- Clearance Warning ECU Power Source Circuit

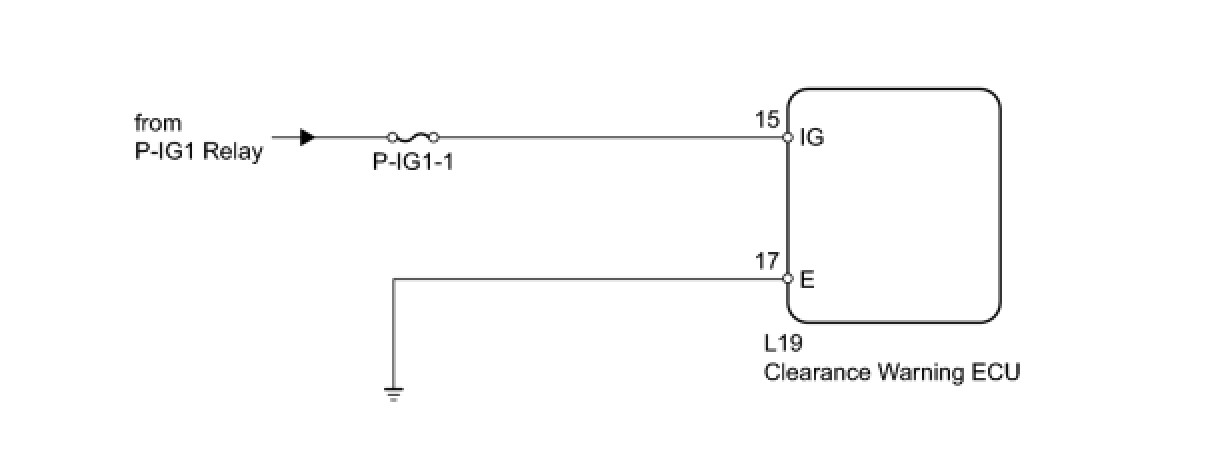

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (P-IG1-1)

(a) Remove the P-IG1-1 fuse from the passenger side junction block.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU POWER SUPPLY)

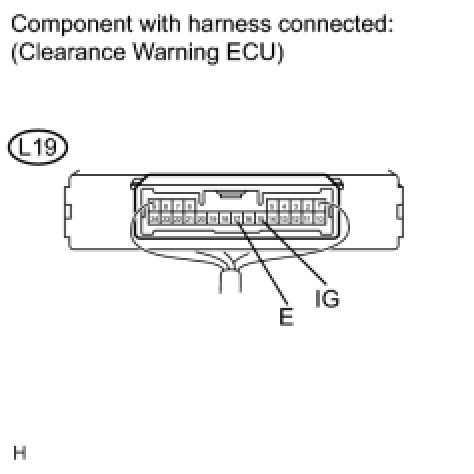

(a) Disconnect the L19 ECU connector.

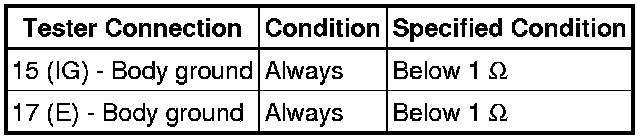

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Intuitive Parking Assist System
