Installation

PRE-COLLISION: DRIVER MONITOR CAMERA: INSTALLATION

1. INSTALL DRIVER MONITOR CAMERA

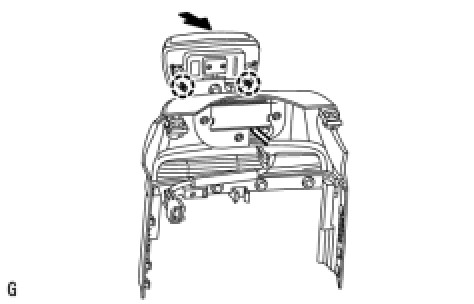

(a) Attach the claws to install the camera.





(b) Install the camera with the 3 screws.

Torque : 1.8 Nm (18 kgf-cm, 16 in-lbf)

2. INSTALL DRIVER MONITOR BRACKET





(a) Attach the claw to install the bracket.

(b) Install the screw.

Torque : 0.9 Nm (9.0 kgf-cm, 8.0 in-lbf)

3. INSTALL STEERING COLUMN COVER (for Upper Side)





(a) Connect the connector.

(b) Attach the claw and 4 clips to install the cover.

4. INSTALL STEERING COLUMN COVER (for Lower Side)





(a) Attach the 2 claws to install the cover.

(b) Install the 3 screws.

5. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Check Mode Procedure.
