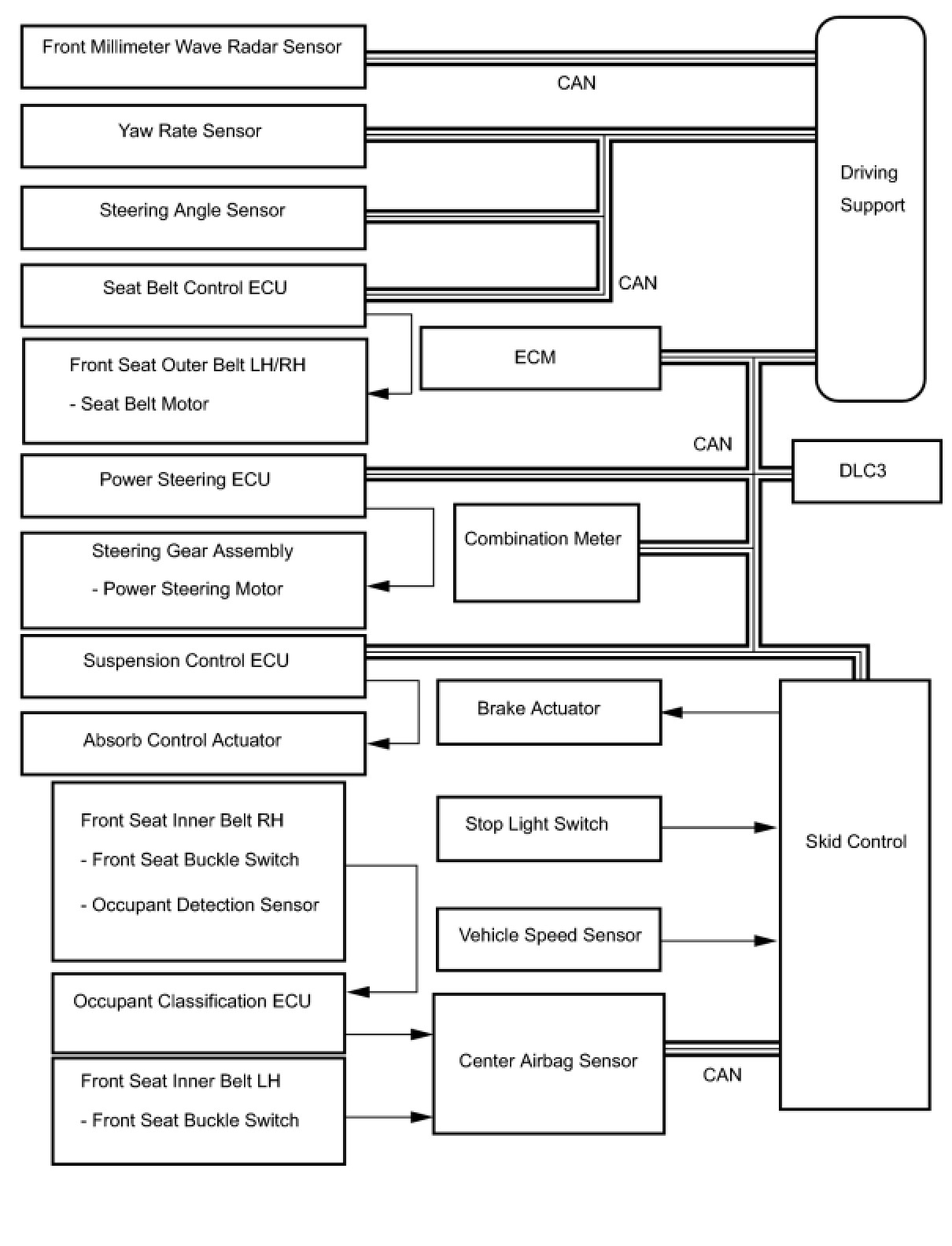

System Diagram
System Diagram
PRE-COLLISION: PRE-COLLISION SYSTEM (w/o Driver Monitor
Camera
): SYSTEM DIAGRAM

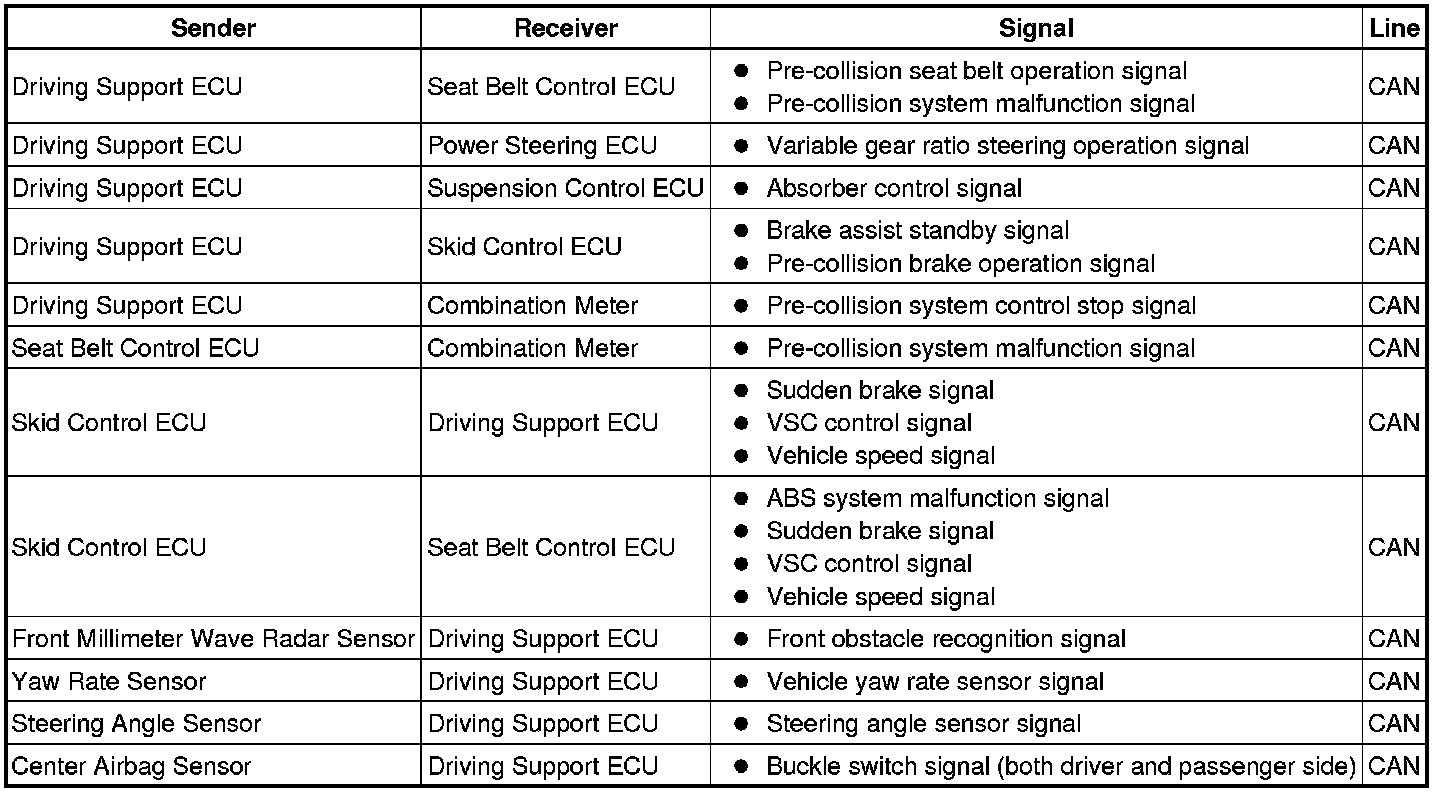

Communication table
