Pre-Collision System (w/ Driver Monitor Camera)
>>

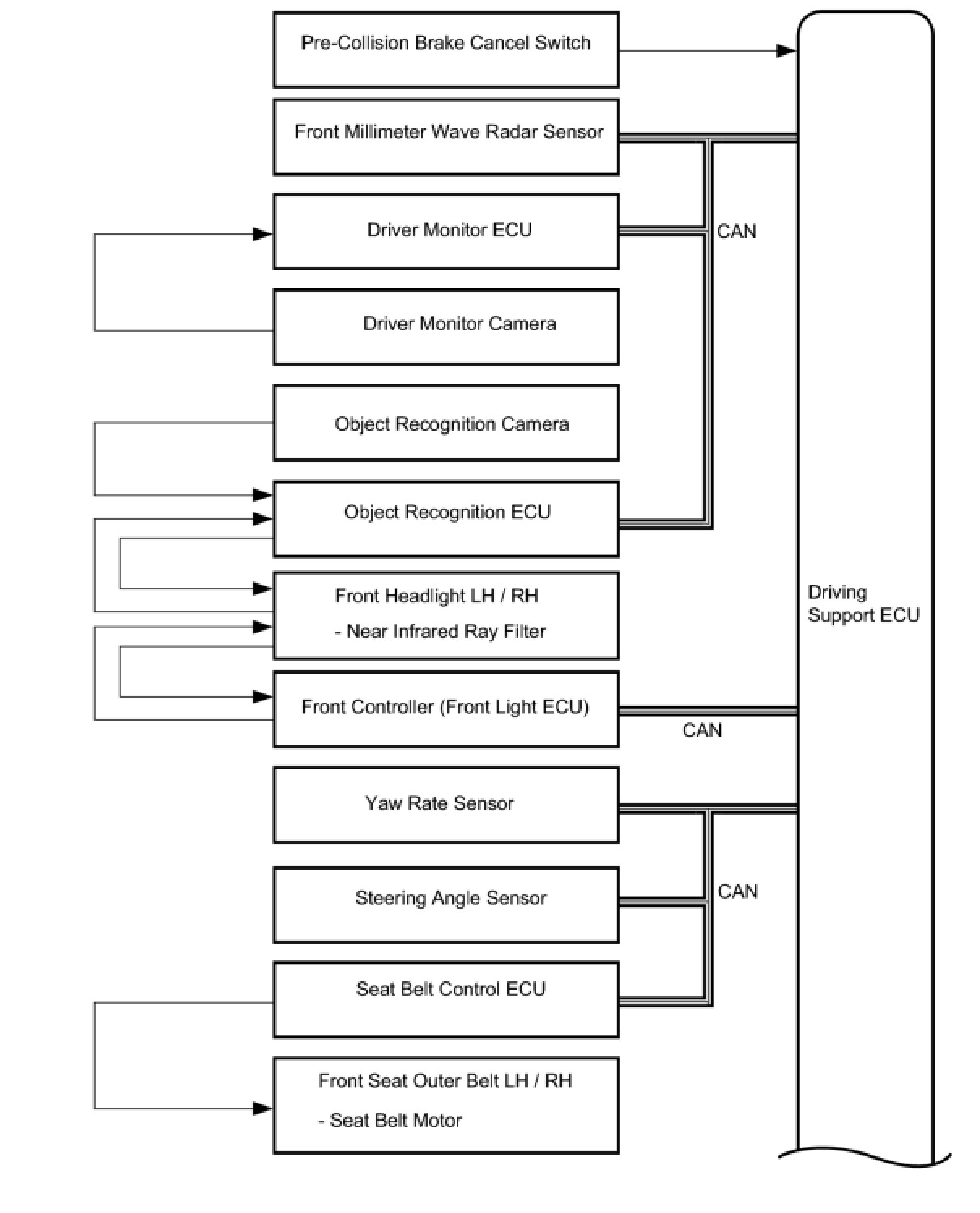

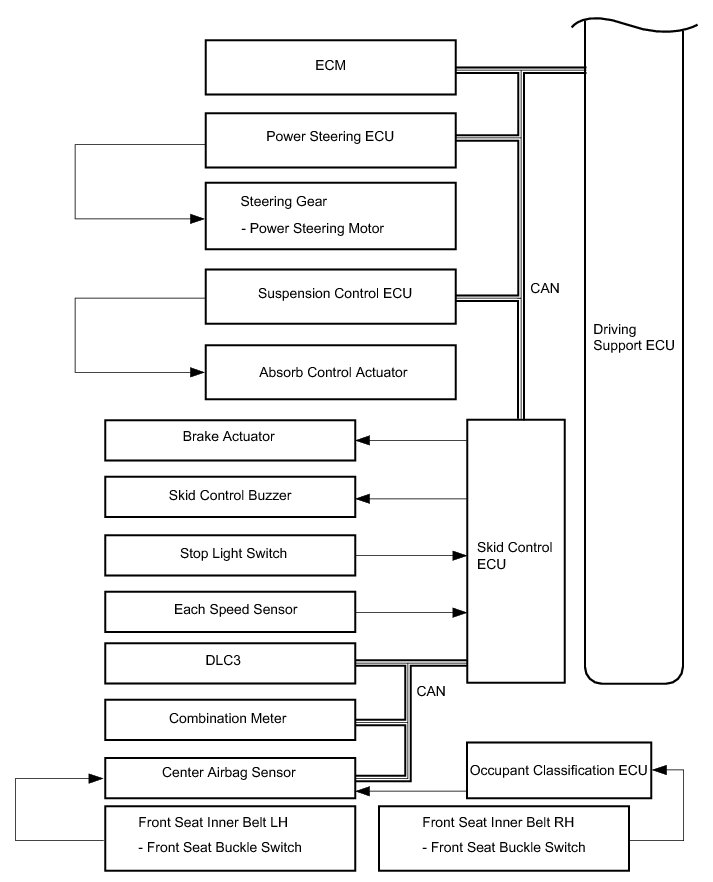

System Diagram
System Diagram
PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor
Camera
): SYSTEM DIAGRAM

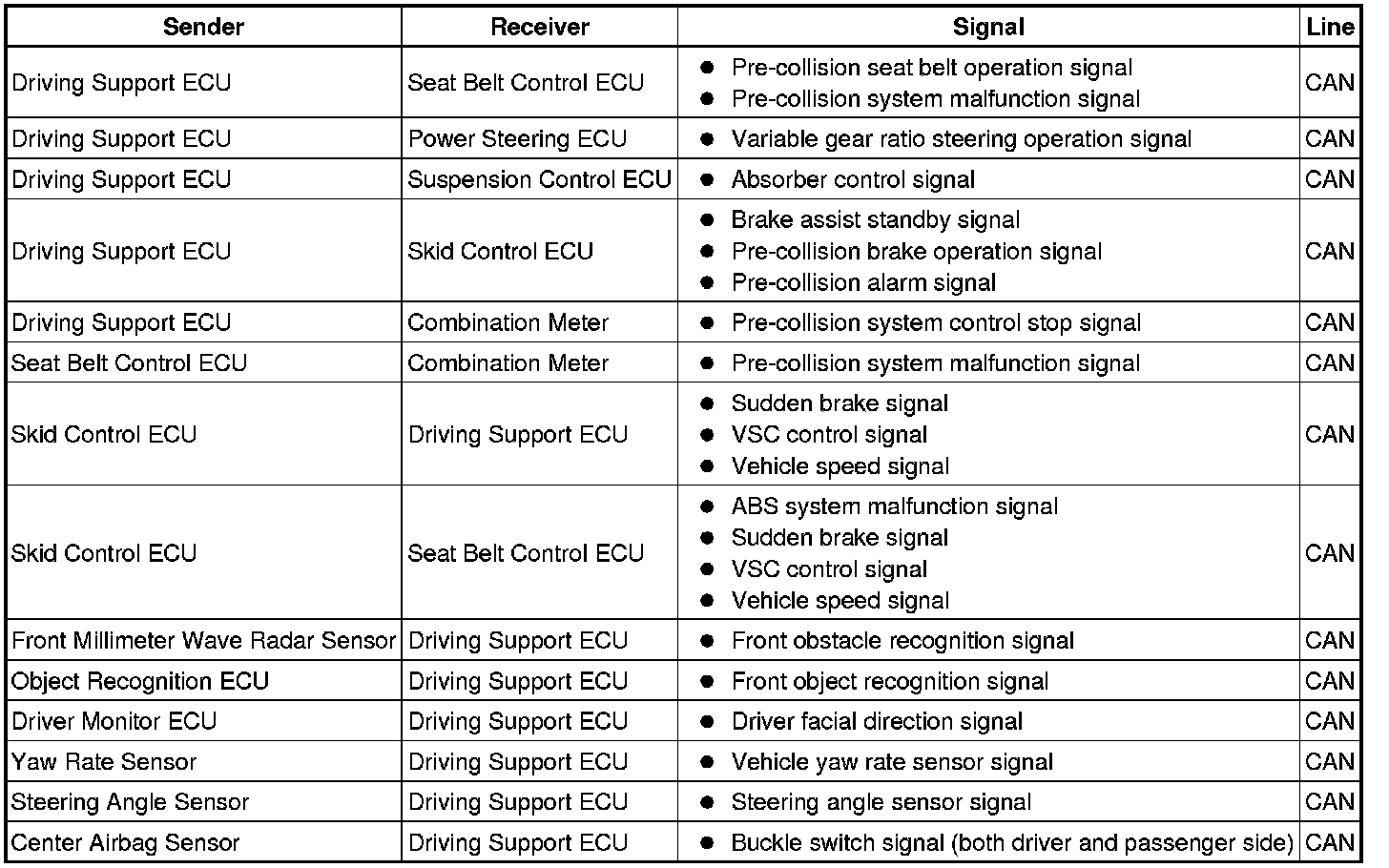

Communication table
