Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Collision Avoidance Module >> Service and Repair >> Object Recognition ECU >> Components

Components

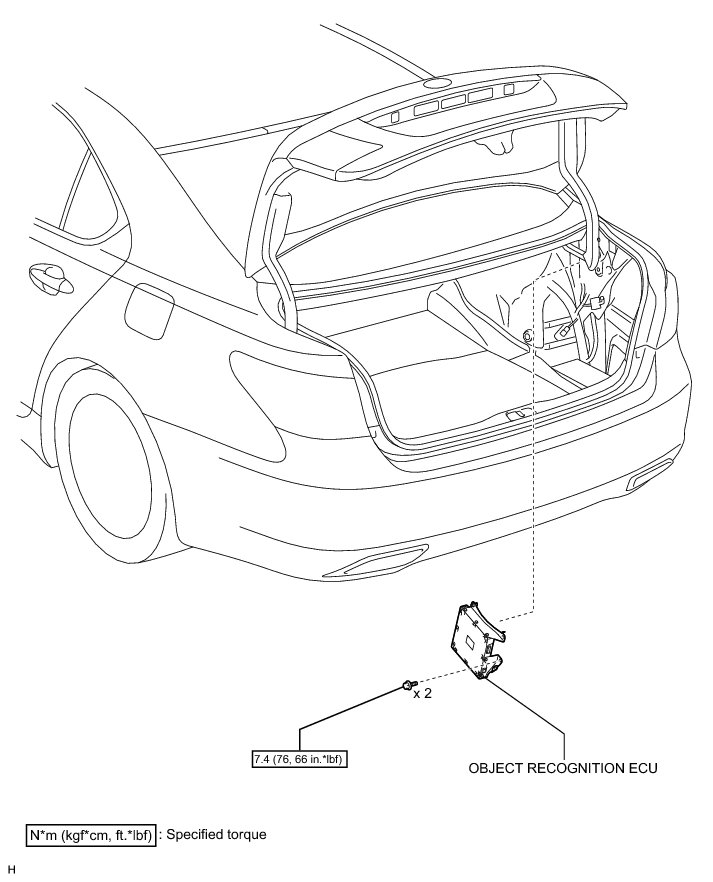

CRUISE CONTROL: OBJECT RECOGNITION ECU: COMPONENTS
