Certification ECU Power Source Circuit

THEFT DETERRENT: THEFT DETERRENT SYSTEM: Certification ECU Power Source Circuit
- Certification ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the certification ECU.

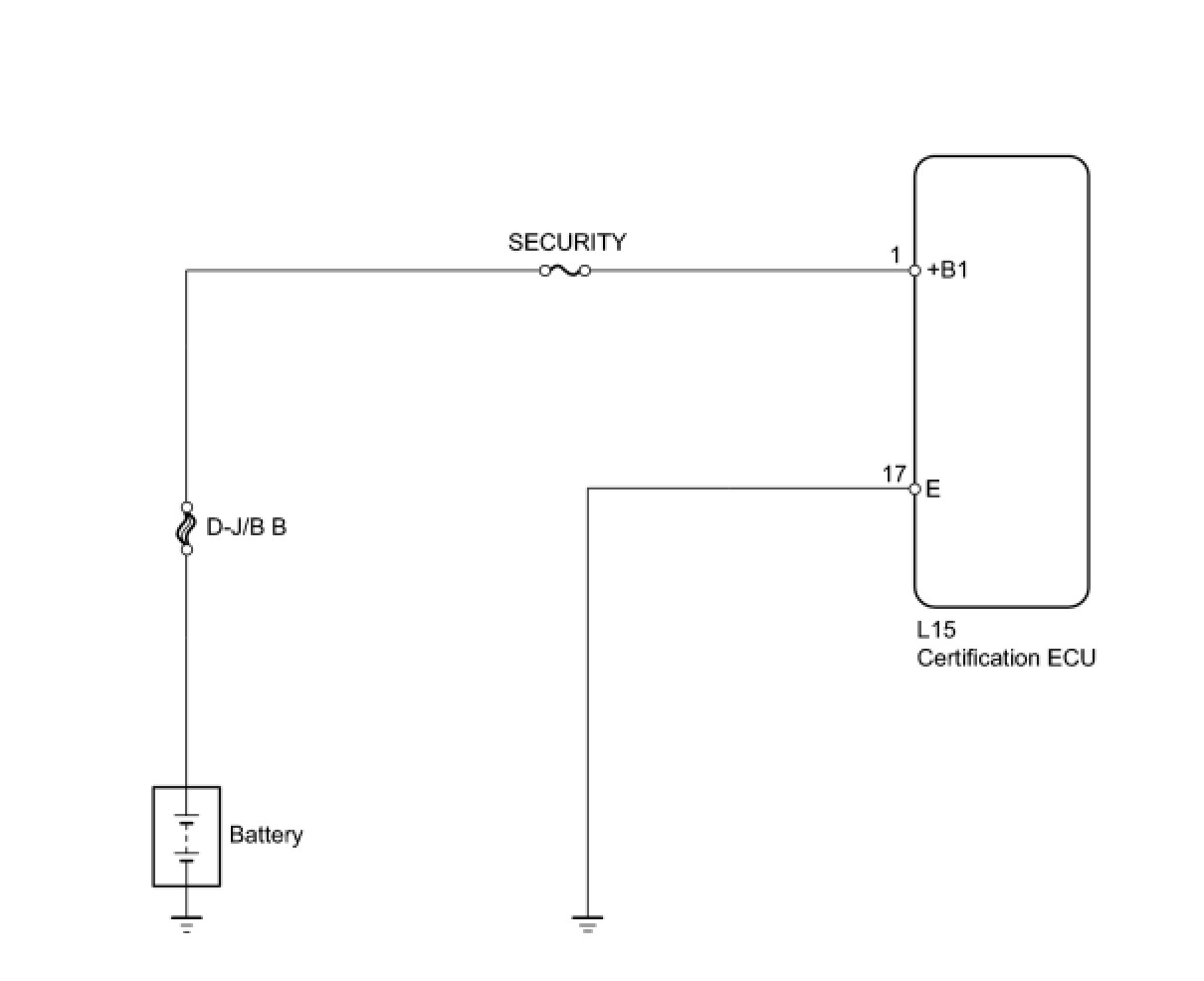

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (SECURITY)

(a) Remove the SECURITY fuse from the main body ECU.

(b) Measure the resistance of the fuse.

Standard resistance:





NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BATTERY AND BODY GROUND)

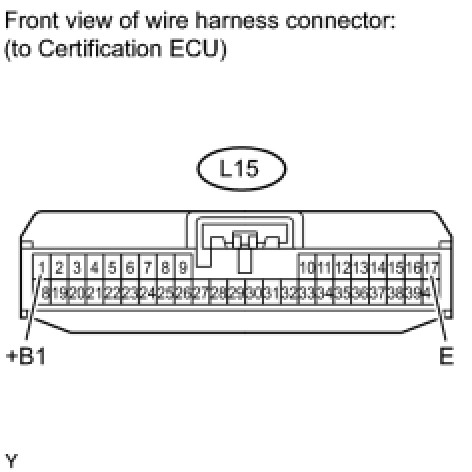

(a) Disconnect the L15 ECU connector.

(b) Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance:

Standard voltage










NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Theft Deterrent System
