Rear Door RH Entry Unlock Function does not Operate

DOOR LOCK: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: Rear Door RH Entry Unlock Function does not Operate
- Rear Door RH Entry Unlock Function does not Operate

DESCRIPTION

If the rear right door entry unlock function does not operate but the entry lock operation operates, the communication line between the vehicle and electrical key transmitter is normal. Either of the following may have occurred: 1) the door outside handle touch sensor is malfunctioning; or 2) the rear door ECU RH receives the door outside handle touch sensor ON signal, but is unable to send the signal to the certification ECU through CAN communication.

WIRING DIAGRAM

Refer to Rear Door RH Entry Lock and Unlock Functions do not Operate Rear Door RH Entry Lock and Unlock Functions do not Operate.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK POWER DOOR LOCK OPERATION

(a) When the master switch assembly's door control switch is operated, check that the locked doors unlock.

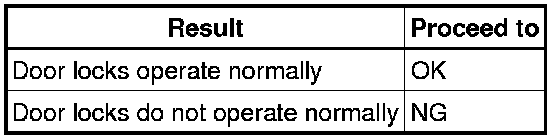

Result





NG -- GO TO POWER DOOR LOCK CONTROL SYSTEM Service Precautions
OK -- Continue to next step.

2. READ VALUE USING TECHSTREAM (DOOR LOCK POSITION SWITCH)

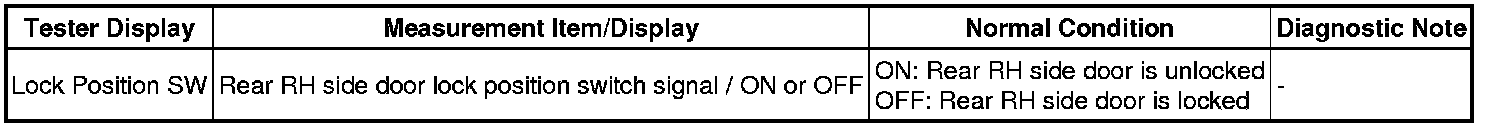

(a) Using the Techstream, read the Data List.

Rear Right Door (Rear door ECU RH)





OK:

On the screen, item changes between ON and OFF according to above chart.

NG -- GO TO POWER DOOR LOCK CONTROL SYSTEM (Proceed to Only Rear Door RH LOCK/UNLOCK Functions do not Operate) Problem Symptoms Table
OK -- Continue to next step.

3. READ VALUE USING TECHSTREAM

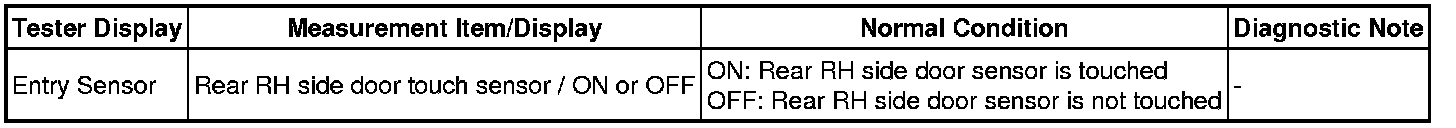

(a) Using the Techstream, read the Data List.

Rear Right Door (Rear door ECU RH)





OK:

On the screen, item changes between ON and OFF according to above chart.

NG -- CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU RH)
OK -- Continue to next step.

4. CHECK REAR DOOR ECU RH (OPERATION)

(a) Replace the rear door ECU RH with a new one or normally functioning one Components.

(b) Check that the entry function operates normally.

OK:

Operates normally

NG -- REPLACE CERTIFICATION ECU

OK -- END (REAR DOOR ECU RH IS DEFECTIVE)

5. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU RH)





(a) Disconnect the O3 ECU connector.

(b) Disconnect the c2 oscillator connector.

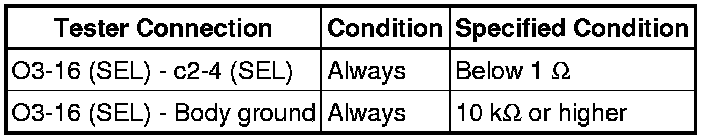

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

6. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE RH)

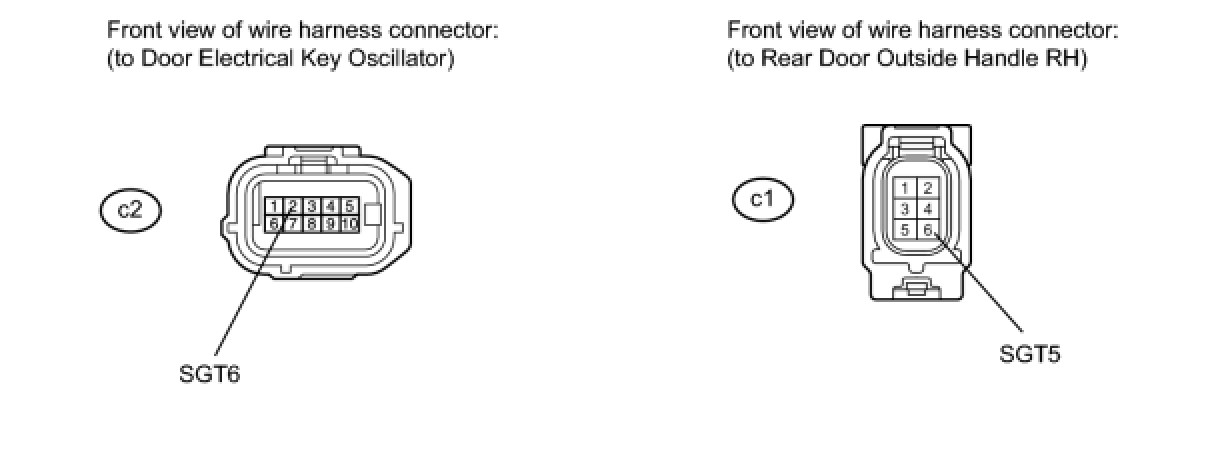

(a) Disconnect the c2 oscillator connector.

(b) Disconnect the c1 handle connector.

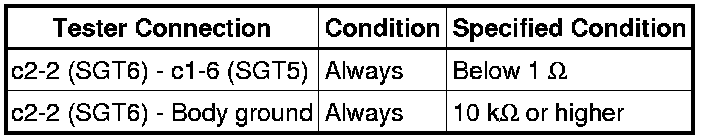

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)

(a) Replace the door electrical key oscillator with a new one or normally functioning one Components.

(b) Check that the entry function operates normally.

OK:

Operates normally

NG -- CHECK REAR DOOR OUTSIDE HANDLE RH (OPERATION)

OK -- END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

8. CHECK REAR DOOR OUTSIDE HANDLE RH (OPERATION)

(a) Replace the rear door outside handle RH with a new one or normally functioning one Removal.

(b) Check that the entry function operates normally.

OK:

Operates normally

NG -- REPLACE REAR DOOR ECU RH (OPERATION)

OK -- END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

9. REPLACE REAR DOOR ECU RH (OPERATION)

(a) Replace the rear door ECU RH with a new one or normally functioning one Components

(b) Check that the entry function operates normally.

OK:

Operates normally

NG -- REPLACE CERTIFICATION ECU

OK -- END (REAR DOOR ECU RH IS DEFECTIVE)
