System Diagram

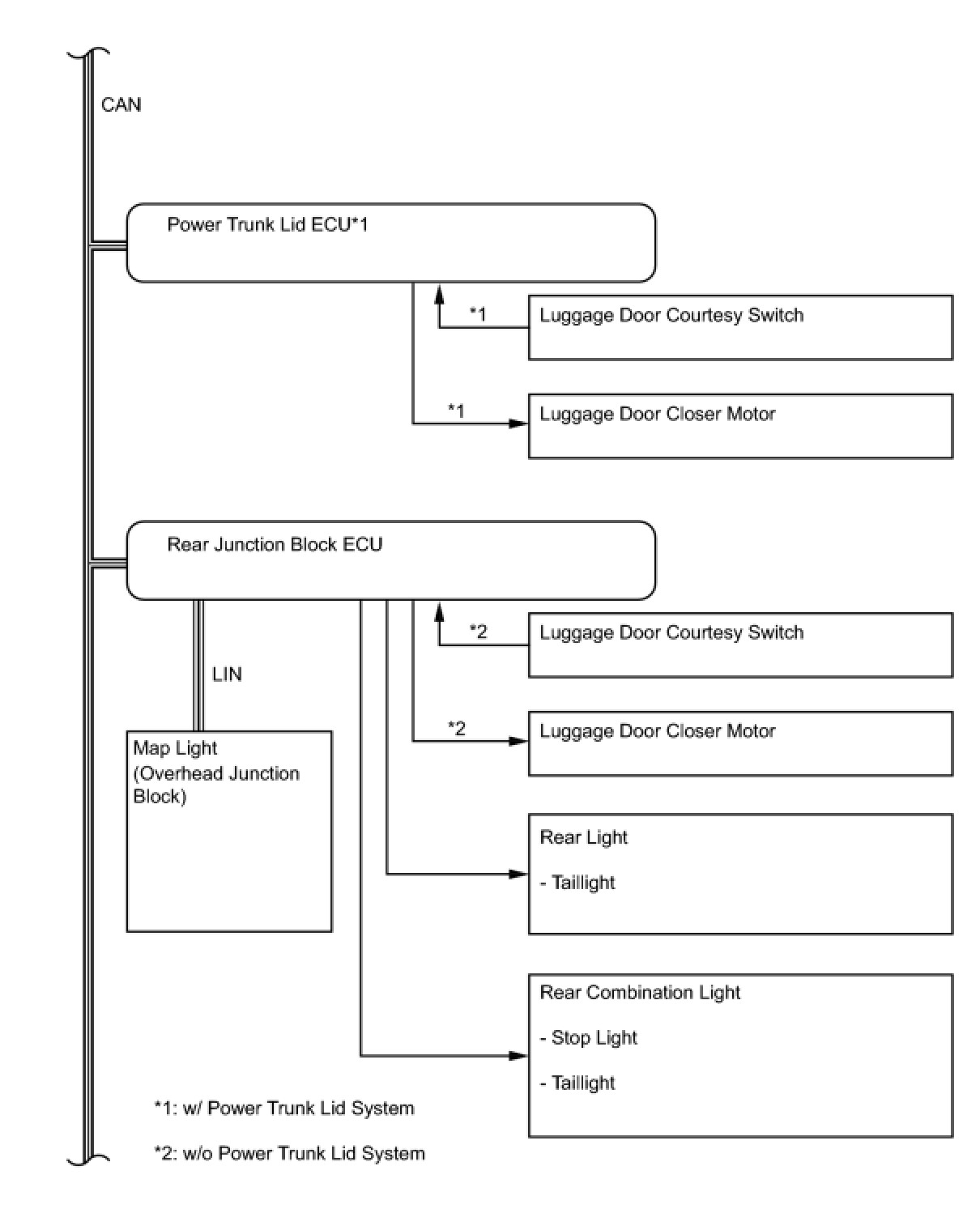

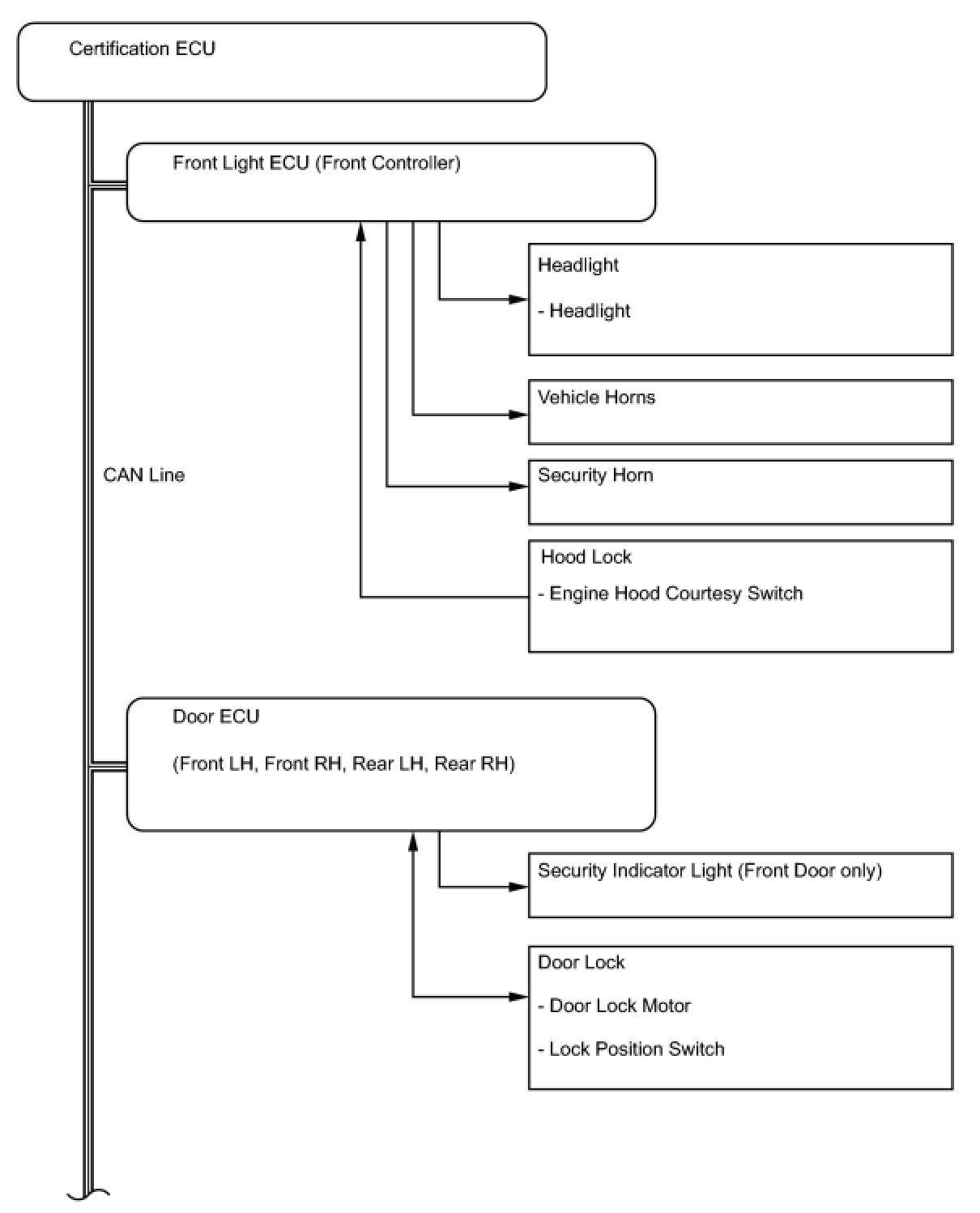

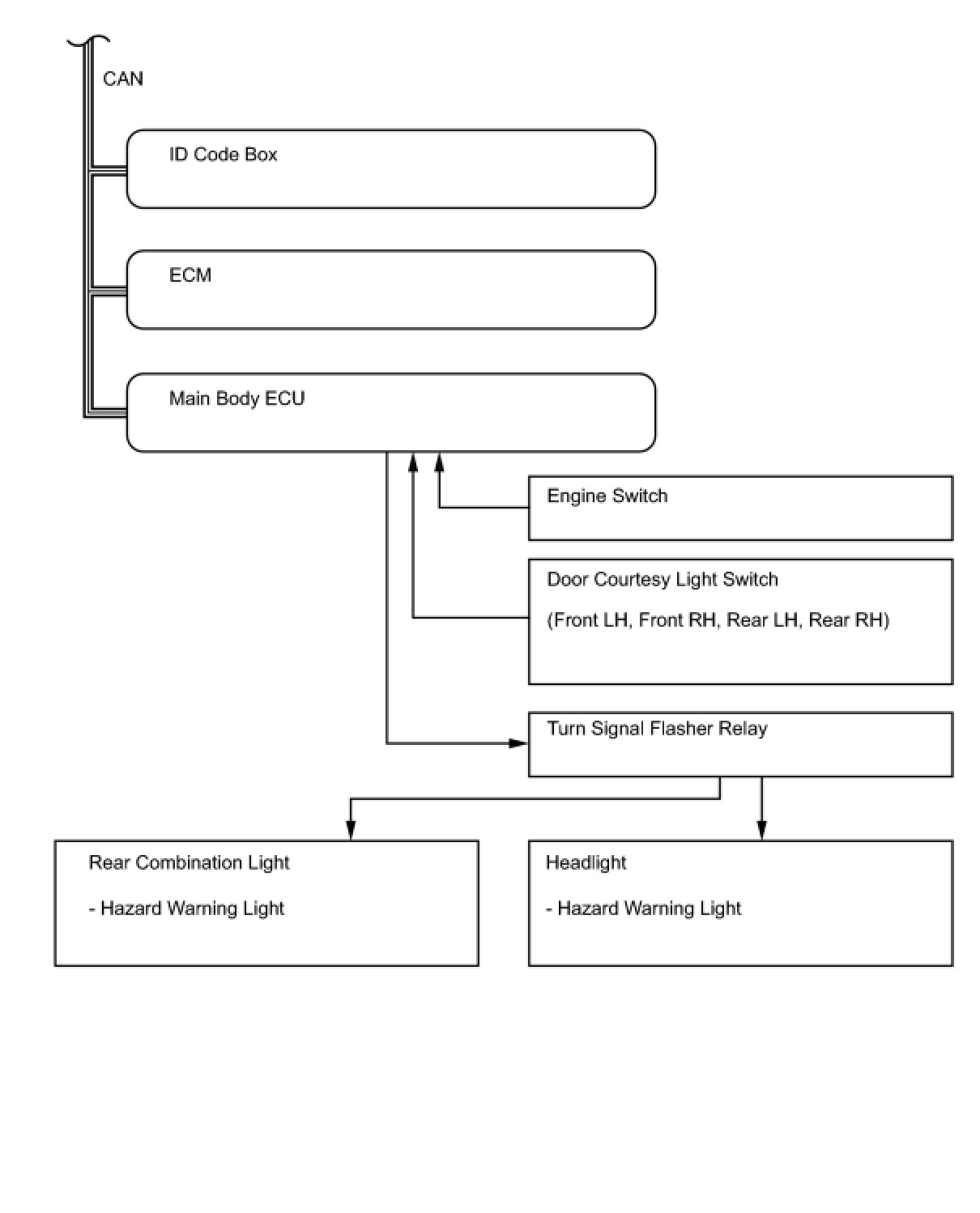

THEFT DETERRENT: THEFT DETERRENT SYSTEM: SYSTEM DIAGRAM

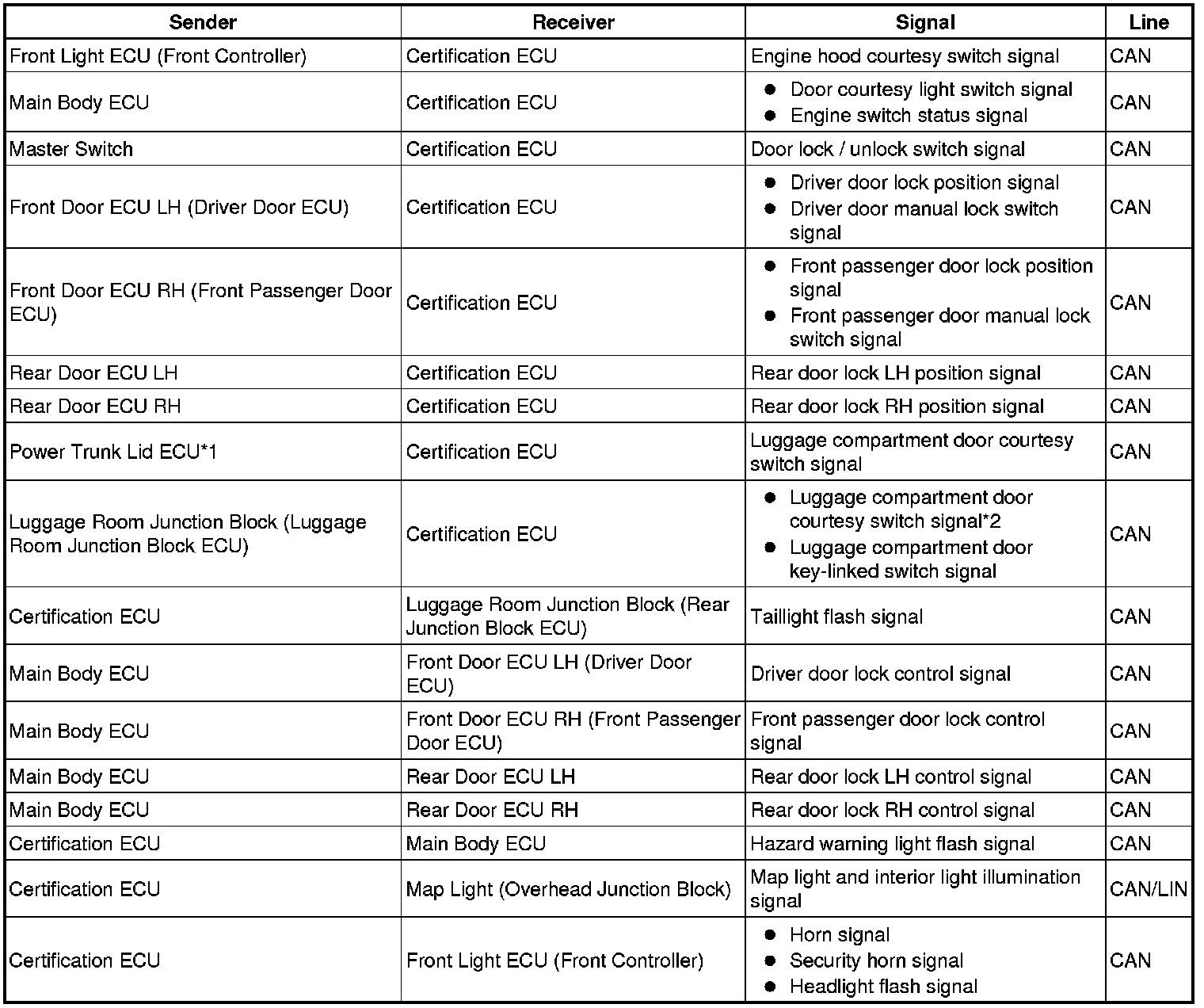

Communication table:





HINT
*1: w/ Power trunk lid system

*2: w/o Power trunk lid system
