Installation

ENGINE IMMOBILISER: ID CODE BOX: INSTALLATION

1. INSTALL ID CODE BOX

(a) Connect the connector.

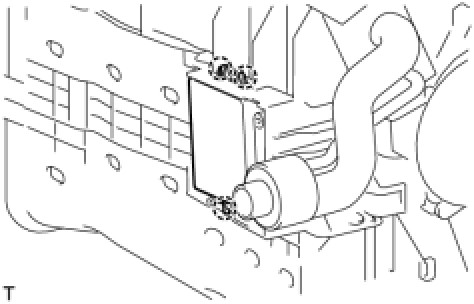

(b) Attach the 3 claws to install the ID code box.





2. INSTALL AIR CONDITIONING UNIT ASSEMBLY

(a) Install the air conditioning unit Installation.

3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Install the instrument panel safety pad Installation.

4. REGISTER ECU CODE

(a) Register the ECU code Engine Immobilizer System.
