Installation

ENGINE IMMOBILISER: CERTIFICATION ECU: INSTALLATION

1. INSTALL CERTIFICATION ECU

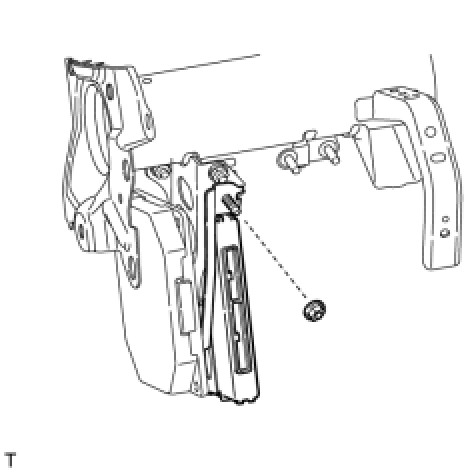

(a) Install the ECU with the nut.





(b) Connect the 2 connectors.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. REGISTER ECU CODE

(a) Register the ECU code Engine Immobilizer System.
