Removal

THEFT DETERRENT: SECURITY HORN ASSEMBLY: REMOVAL

1. REMOVE FRONT WIPER ARM LH Removal

2. REMOVE FRONT WIPER ARM RH Removal

3. REMOVE ENGINE ROOM SIDE COVER LH Removal

4. REMOVE ENGINE ROOM SIDE COVER RH Removal

5. REMOVE FRONT UPPER FENDER PROTECTOR LH Removal

6. REMOVE FRONT UPPER FENDER PROTECTOR RH Removal

7. REMOVE HOOD TO COWL TOP SEAL Removal

8. REMOVE FRONT FENDER TO COWL SIDE SEAL LH Removal

9. REMOVE FRONT FENDER TO COWL SIDE SEAL RH Removal

10. REMOVE COWL TOP VENTILATOR LOUVER LH Removal

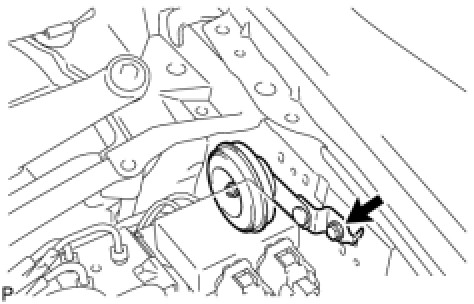

11. REMOVE SECURITY HORN ASSEMBLY





(a) Disconnect the connector.

(b) Remove the bolt and horn.
