Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: U0155, U1114: Lost Communication with Instrument Panel Cluster Control Module (Combination Meter)
U1114 - Lost Communication with Main Switch Module

DESCRIPTION

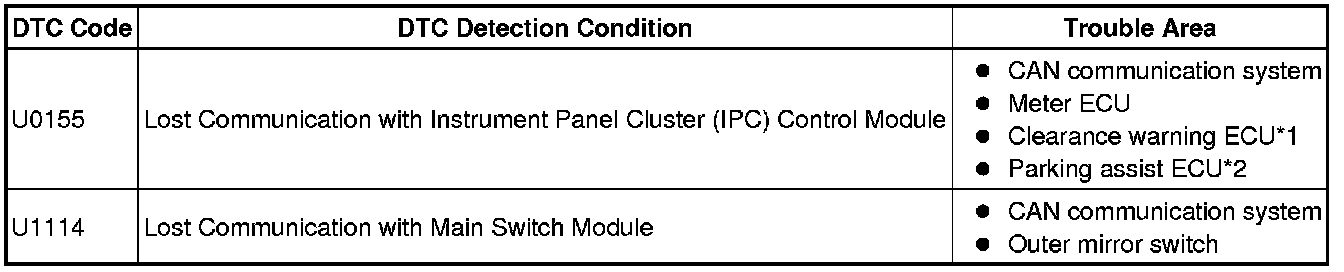

The ECU receives signals from the steering angle sensor, meter ECU and outer mirror switch via the CAN communication system.





HINT
*1: w/o Advanced parking guidance system

*2: w/ Advanced parking guidance system

HINT
When 2 or more DTCs starting with "U" are output simultaneously, inspect the connectors and wire harness of each ECU.

INSPECTION PROCEDURE

Refer to U0155 (CAN communication system) CAN Communication System.

Refer to U1114 (CAN communication system) CAN Communication System.
