U1106 - Lost Communication with Electric Parking Brake Module

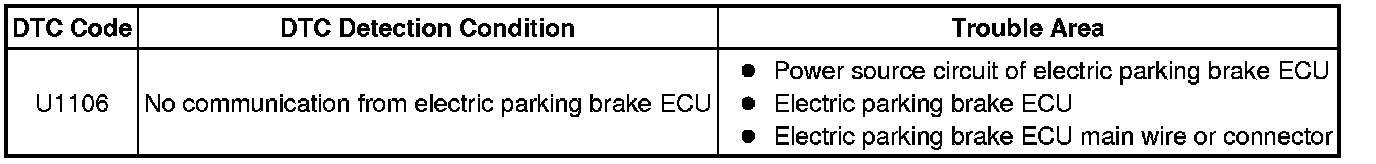

DESCRIPTION

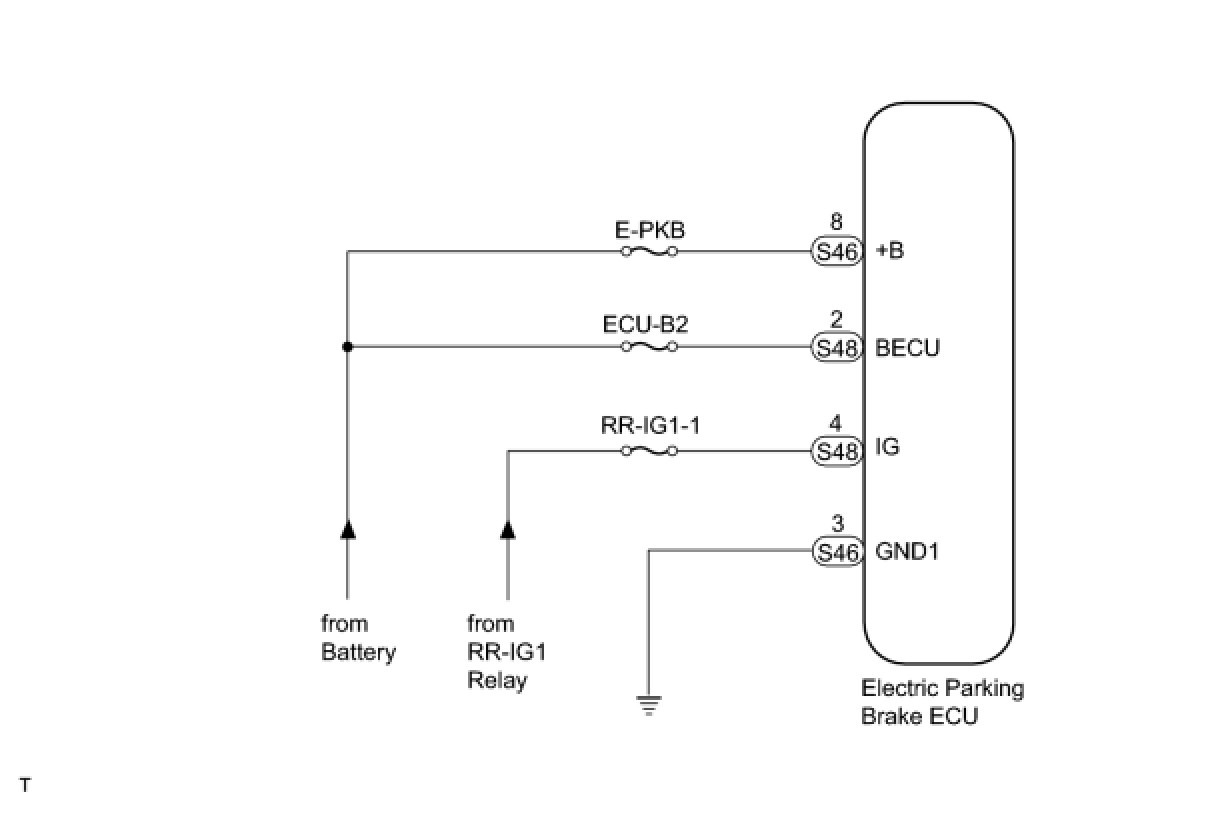

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (ELECTRIC PARKING BRAKE ECU - BATTERY AND BODY GROUND)

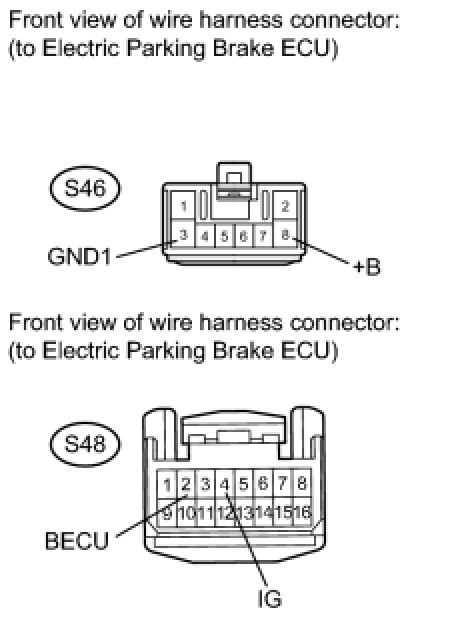

(a) Disconnect the S46 and S48 electric parking brake ECU connectors.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Measure the voltage according to the value(s) in the table below.

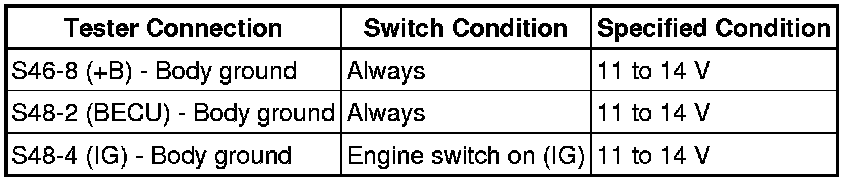

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ELECTRIC PARKING BRAKE ECU Removal
