U1004





CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: U1004: Lost Communication with Engine Gateway Module
U1004 - Lost Communication with Engine Gateway Module

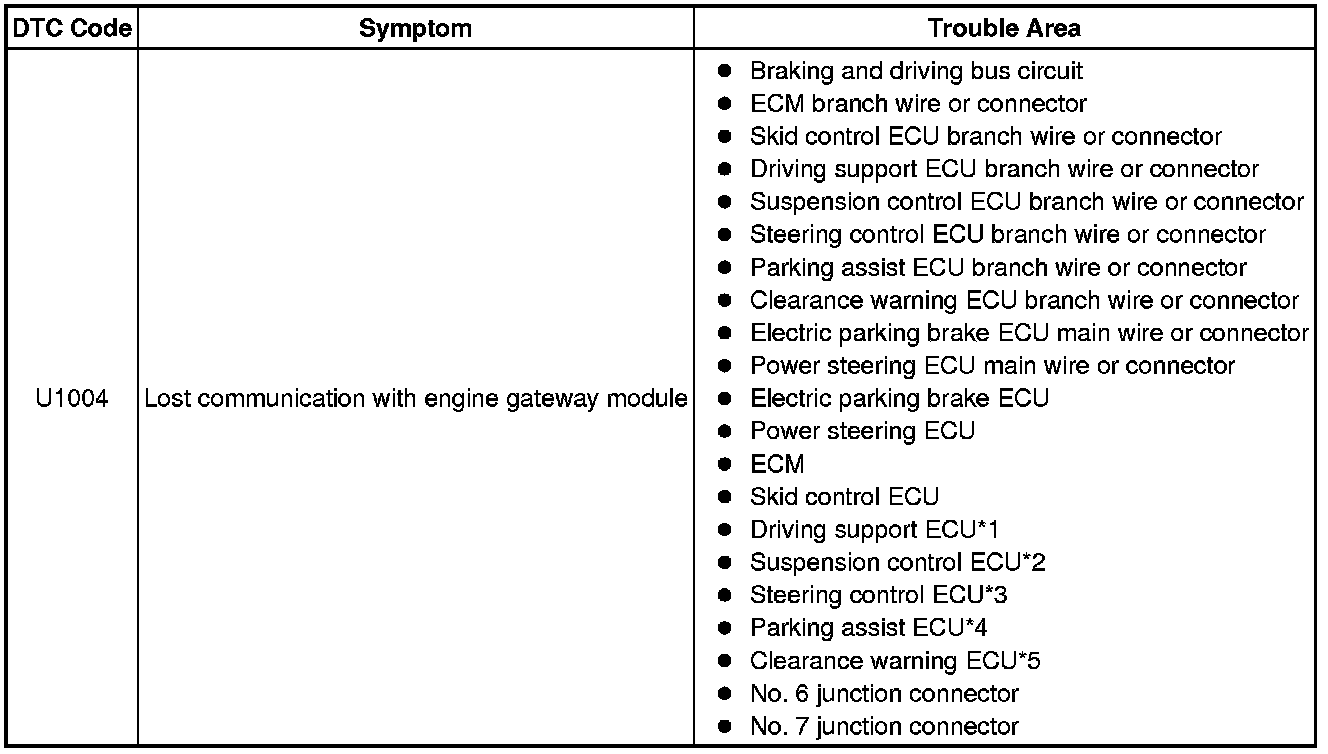

DESCRIPTION

If 2 or more DTCs are output during the DTC check, one side of the CAN branch wire may be open. (One side of the CANH [branch wire]/CANL [branch wire] of the ECU and/or sensor is open.)





HINT
*1: w/ Dynamic Radar Cruise Control System, w/ Pre-collision System or w/ Lane Keeping Assist System

*2: w/ Air Suspension System

*3: w/ Variable Gear Ratio Steering System

*4: w/ Advanced Parking Guidance System and Intuitive Parking Assist System

*5: w/ Intuitive Parking Assist System

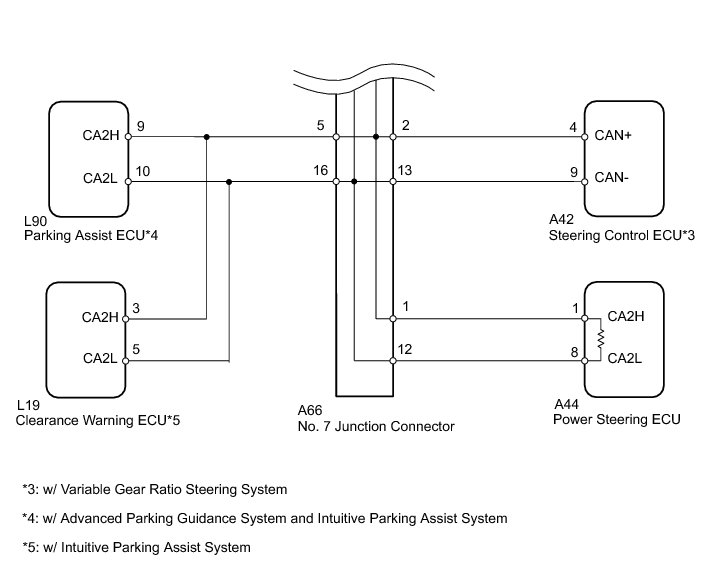

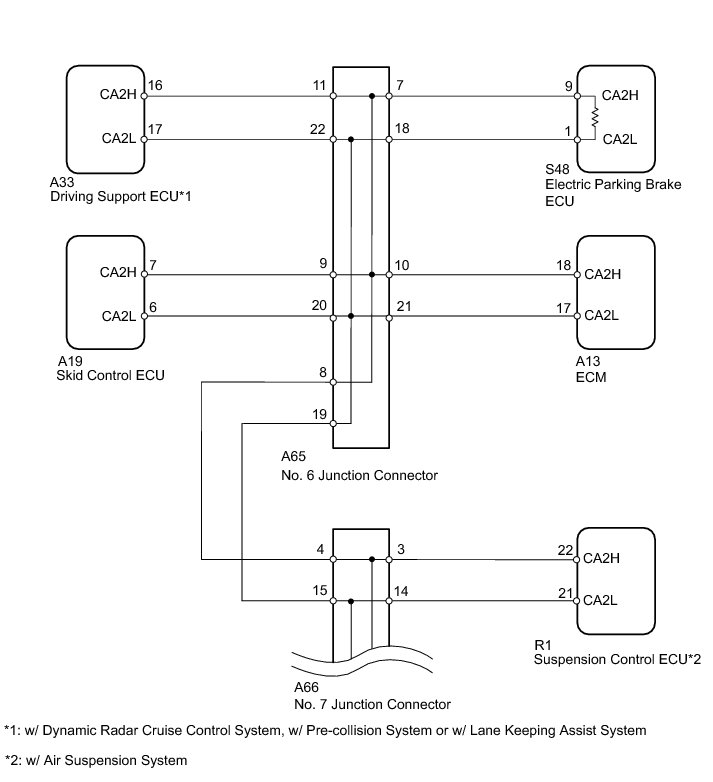

WIRING DIAGRAM









INSPECTION PROCEDURE

PROCEDURE

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

(a) Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
* w/ Navigation System (for HDD):
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

NEXT -- Continue to next step.

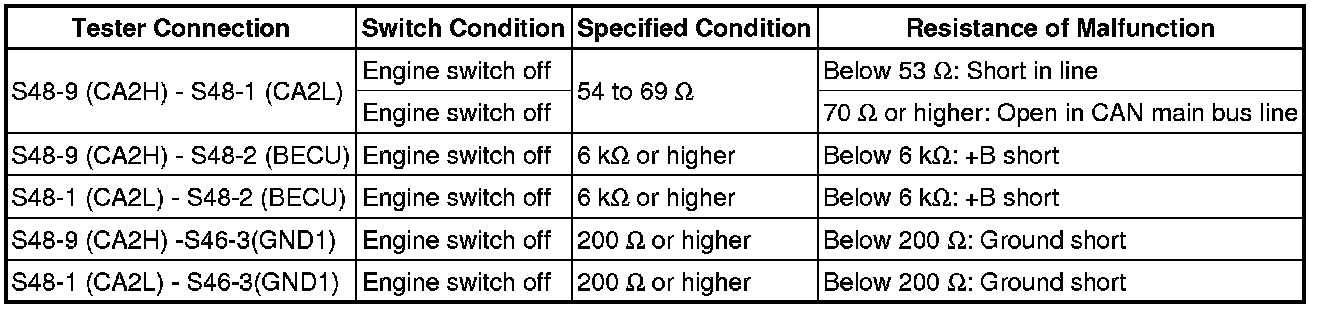

2. CHECK CAN BUS WIRE (MAIN WIRE FOR DISCONNECTION, BUS LINES FOR SHORT CIRCUIT)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:

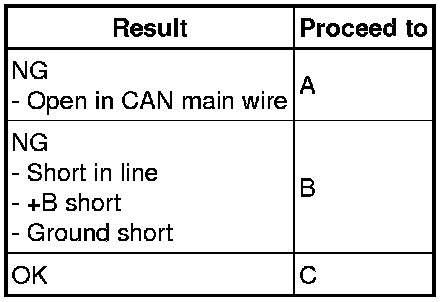

Result





B -- CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR SIDE)

C -- CHECK HARNESS AND CONNECTOR (ECM - BATTERY AND BODY GROUND)
A -- Continue to next step.

3. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 7 JUNCTION CONNECTOR - ELECTRIC PARKING BRAKE ECU)

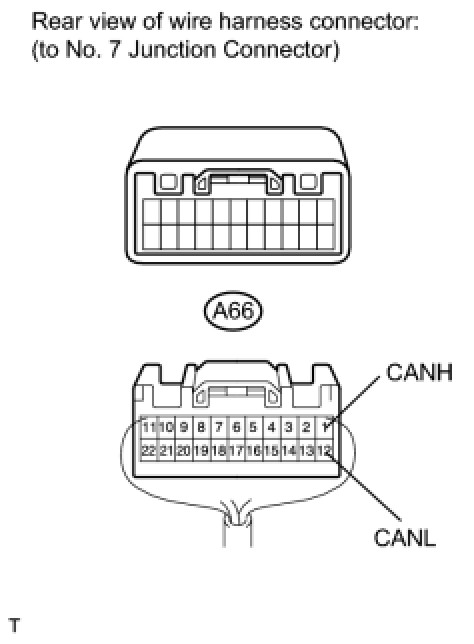

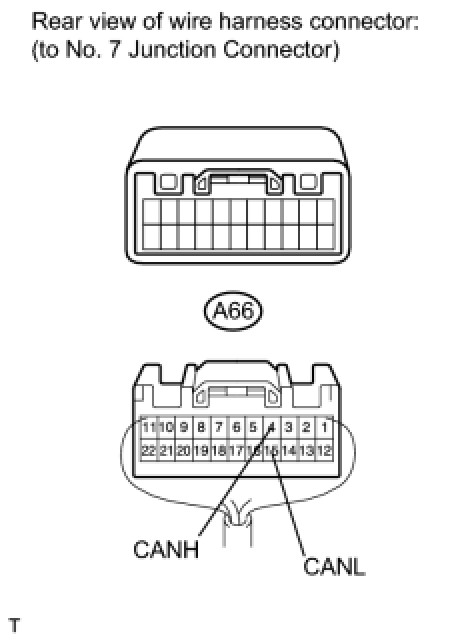

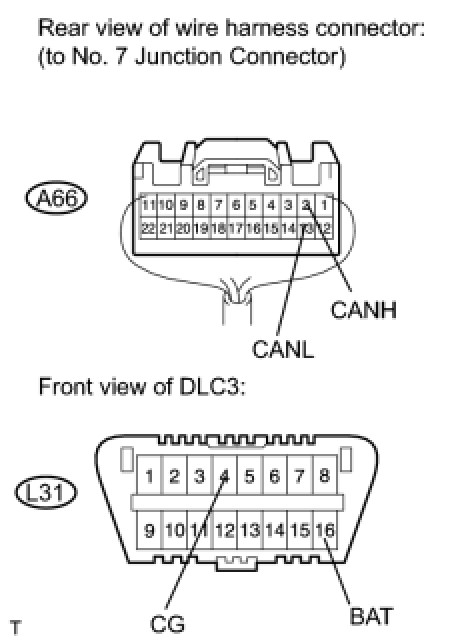

(a) Disconnect the A66 No. 7 junction connector connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

4. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 7 JUNCTION CONNECTOR - POWER STEERING ECU)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- CONNECT CONNECTOR

OK -- REPLACE NO. 7 JUNCTION CONNECTOR

5. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

6. CHECK FOR OPEN IN CAN BUS MAIN WIRE (POWER STEERING ECU - NO. 7 JUNCTION CONNECTOR)

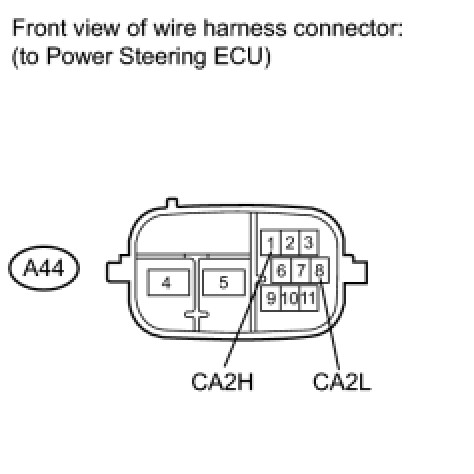

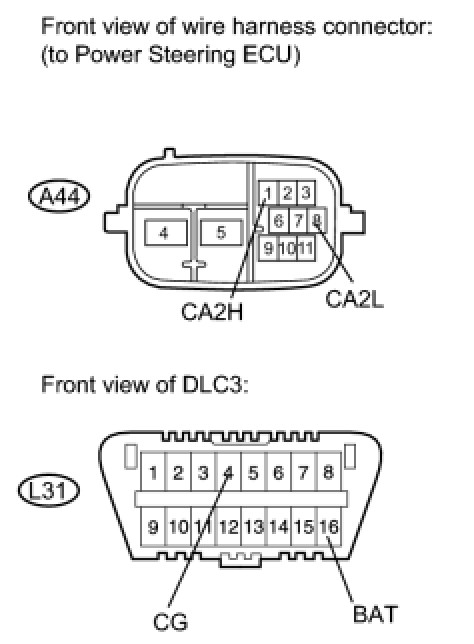

(a) Disconnect the A44 power steering ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO POWER STEERING ECU (POWER STEERING ECU - NO. 7 JUNCTION CONNECTOR)

OK -- REPLACE POWER STEERING ECU Removal

7. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

8. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 6 JUNCTION CONNECTOR - NO. 7 JUNCTION CONNECTOR)

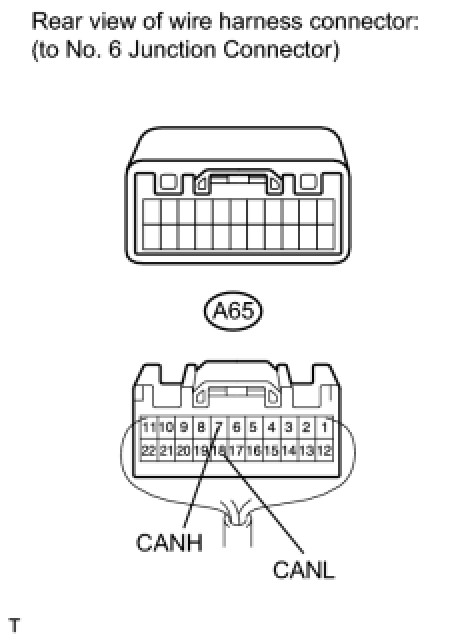

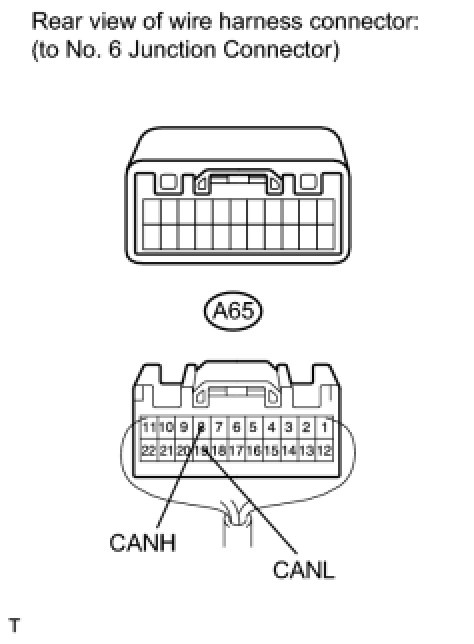

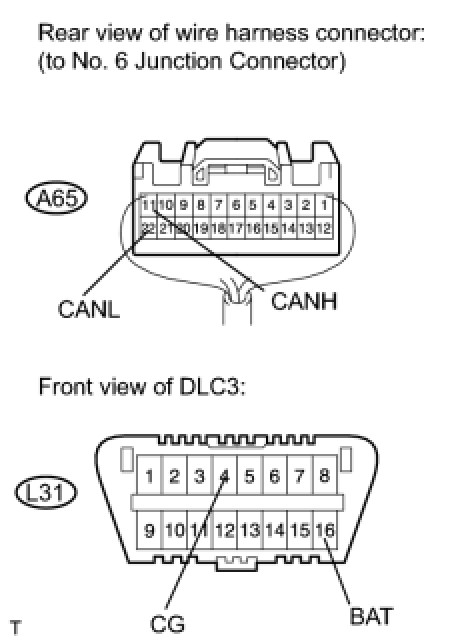

(a) Disconnect the A65 No. 6 junction connector connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 6 JUNCTION CONNECTOR - NO. 7 JUNCTION CONNECTOR)
OK -- Continue to next step.

9. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 6 JUNCTION CONNECTOR - ELECTRIC PARKING BRAKE ECU)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- CONNECT CONNECTOR

OK -- REPLACE NO. 6 JUNCTION CONNECTOR

10. CONNECT CONNECTOR

(a) Reconnect the A65 No. 6 junction connector connector.

NEXT -- Continue to next step.

11. CHECK FOR OPEN IN CAN BUS MAIN WIRE (ELECTRIC PARKING BRAKE ECU - NO. 6 JUNCTION CONNECTOR)

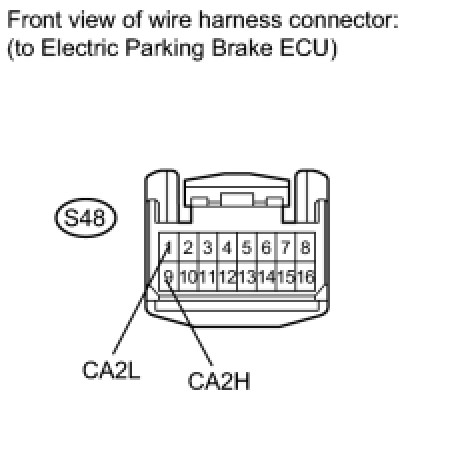

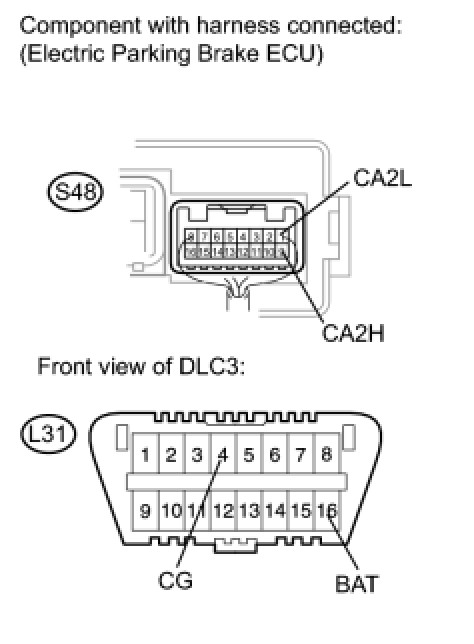

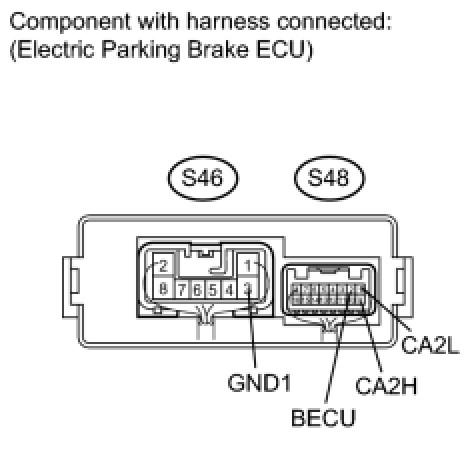

(a) Disconnect the S48 electric parking brake ECU connector.

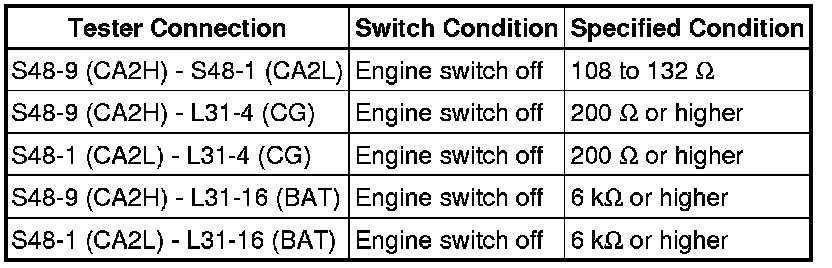

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO ELECTRIC PARKING BRAKE ECU (ELECTRIC PARKING BRAKE ECU - NO. 6 JUNCTION CONNECTOR)

OK -- REPLACE ELECTRIC PARKING BRAKE ECU Removal

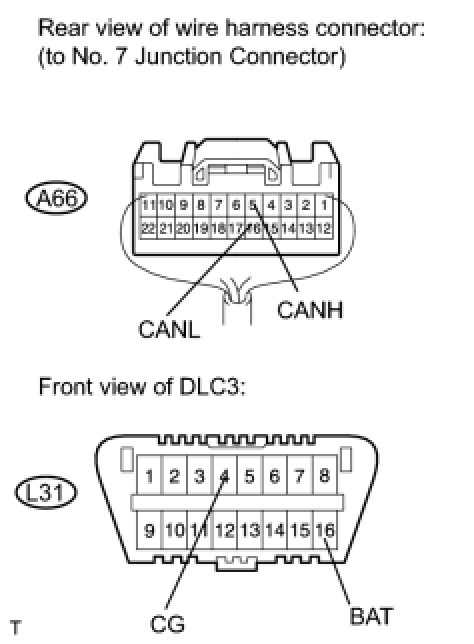

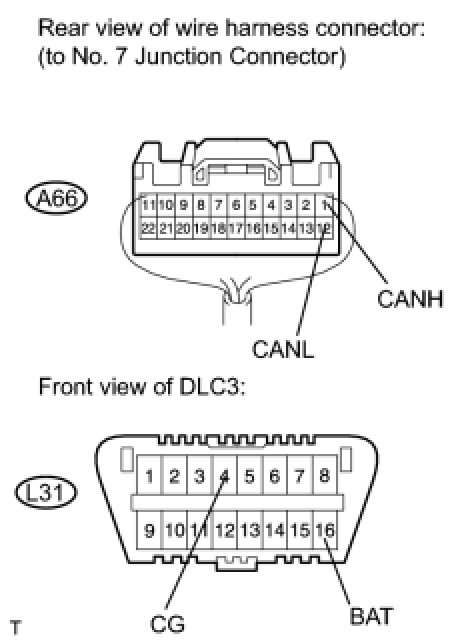

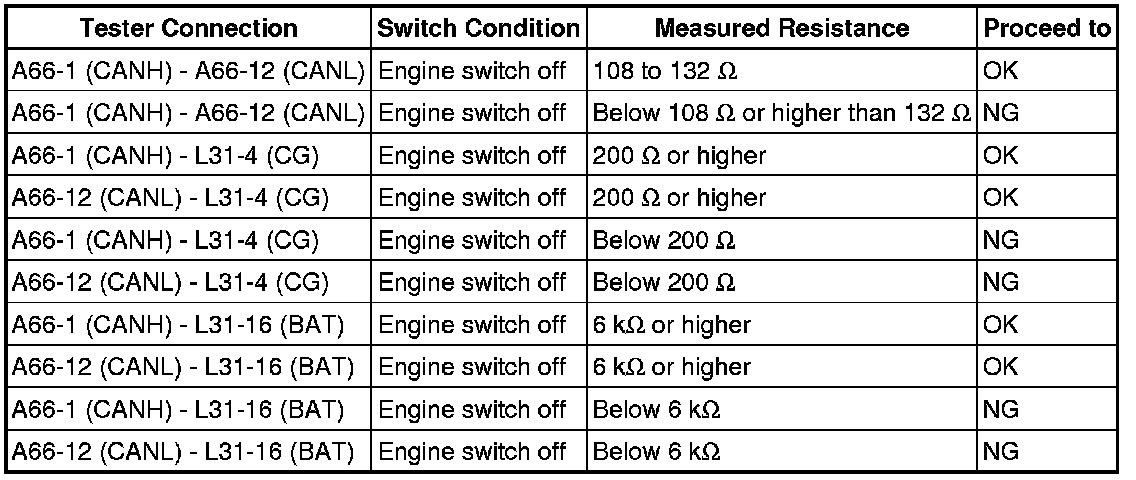

12. CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR SIDE)

(a) Disconnect the A66 No. 7 junction connector connector.

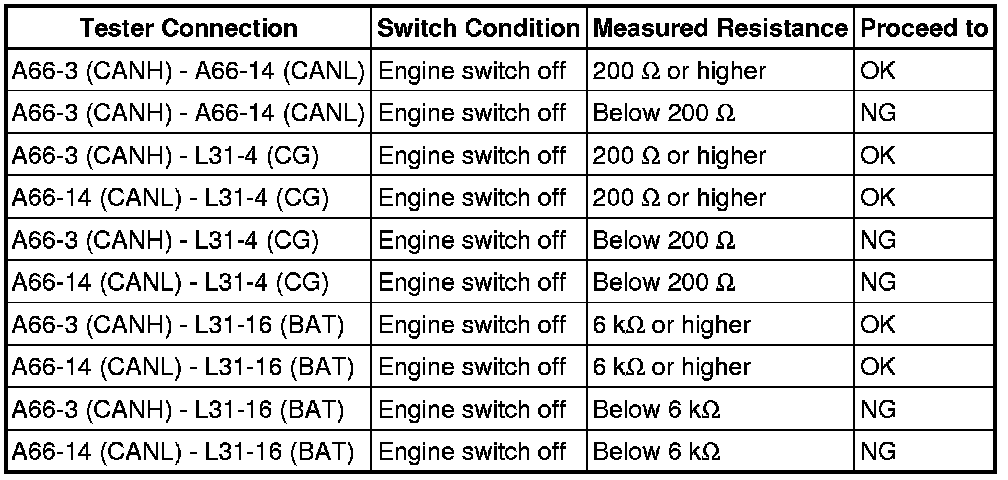

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

13. CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - SUSPENSION CONTROL ECU)

NOTICE:
For vehicles without air suspension system, go to " CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - STEERING CONTROL ECU)".

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

14. CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - STEERING CONTROL ECU)

NOTICE:
For vehicles without variable gear ratio steering system, go to " CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - PARKING ASSIST ECU)".

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

15. CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - PARKING ASSIST ECU)

NOTICE:
For vehicles without advanced parking guidance system and intuitive parking assist system, go to " CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - CLEARANCE WARNING ECU)".

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

16. CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - CLEARANCE WARNING ECU)

NOTICE:
For vehicles without intuitive parking assist system, go to " CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - POWER STEERING ECU)".

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

17. CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - POWER STEERING ECU)

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR

OK -- REPAIR OR REPLACE NO. 7 JUNCTION CONNECTOR

18. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

19. CHECK FOR SHORT IN CAN BUS WIRES (SUSPENSION CONTROL ECU)

(a) Disconnect the R1 suspension control ECU connector.

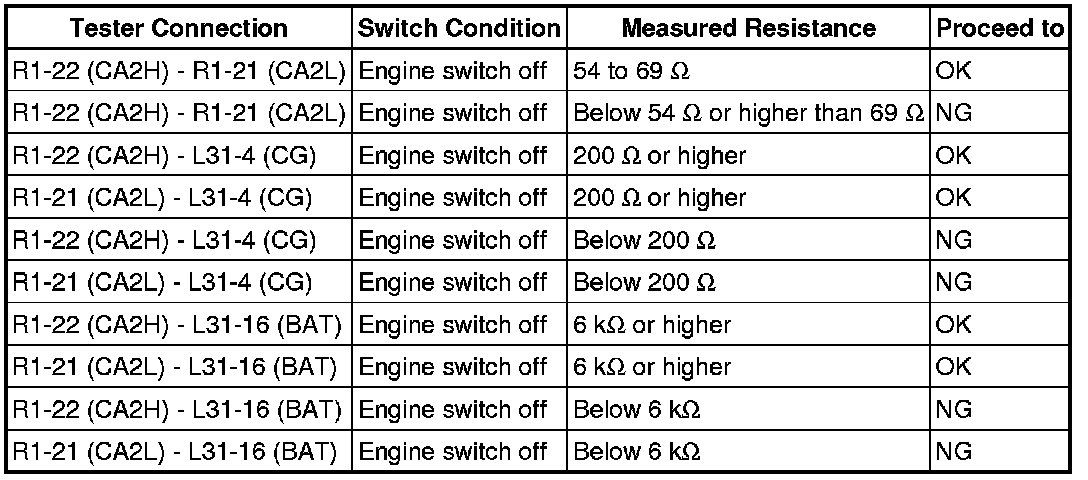

(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO SUSPENSION CONTROL ECU (CA2H, CA2L)

OK -- REPLACE SUSPENSION CONTROL ECU Removal

20. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

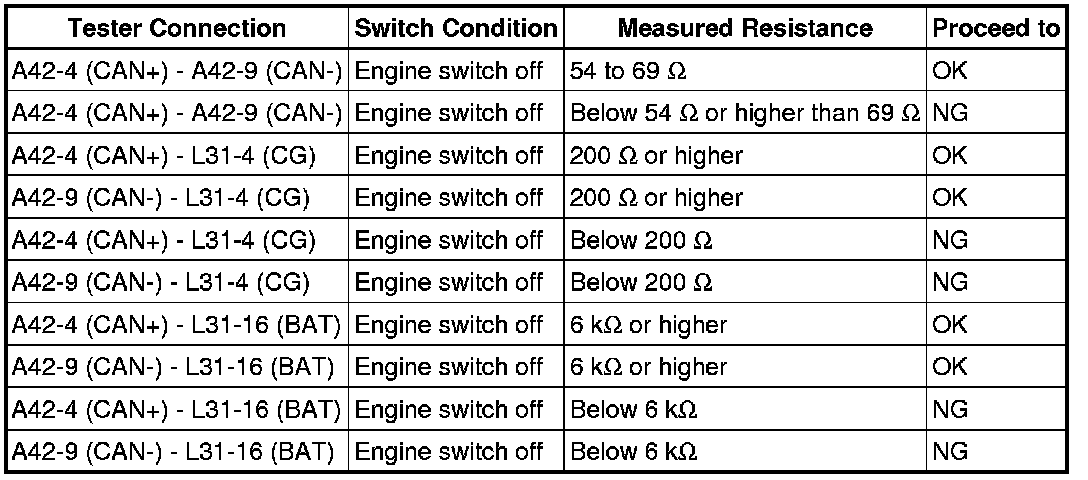

21. CHECK FOR SHORT IN CAN BUS WIRES (STEERING CONTROL ECU)

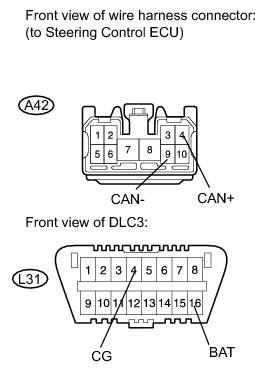

(a) Disconnect the A42 steering control ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO STEERING CONTROL ECU (CAN+, CAN-)

OK -- REPLACE STEERING CONTROL ECU Removal

22. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

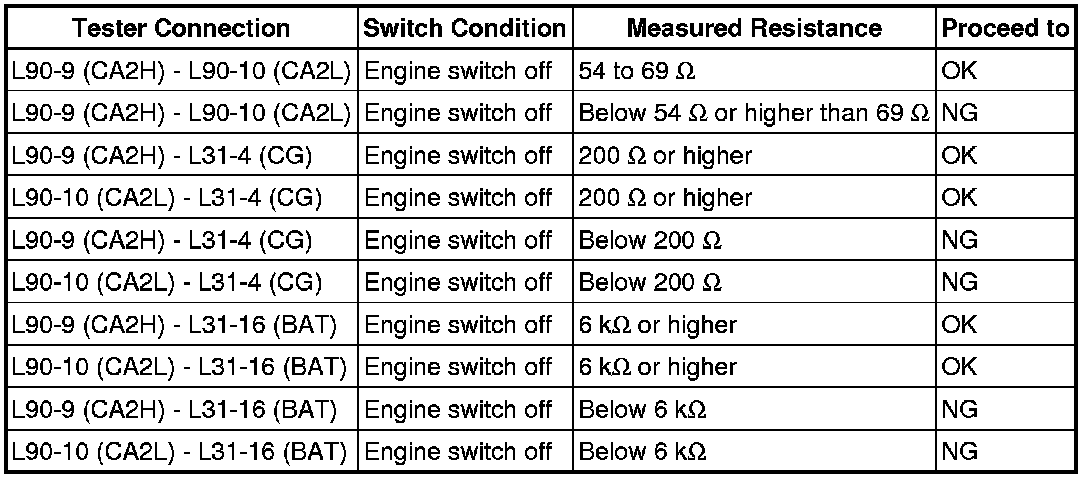

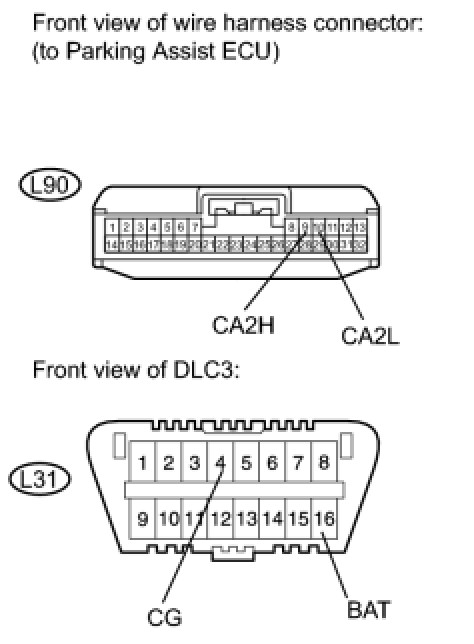

23. CHECK FOR SHORT IN CAN BUS WIRES (PARKING ASSIST ECU)

(a) Disconnect the L90 parking assist ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO PARKING ASSIST ECU (CA2H, CA2L)

OK -- REPLACE PARKING ASSIST ECU Removal

24. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

25. CHECK FOR SHORT IN CAN BUS WIRES (CLEARANCE WARNING ECU)

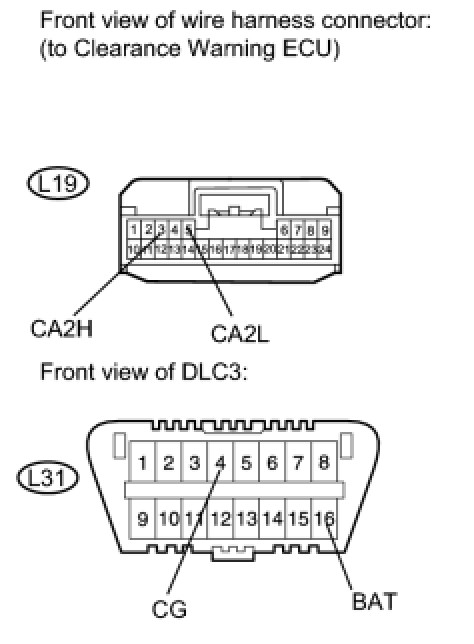

(a) Disconnect the L19 clearance warning ECU connector.

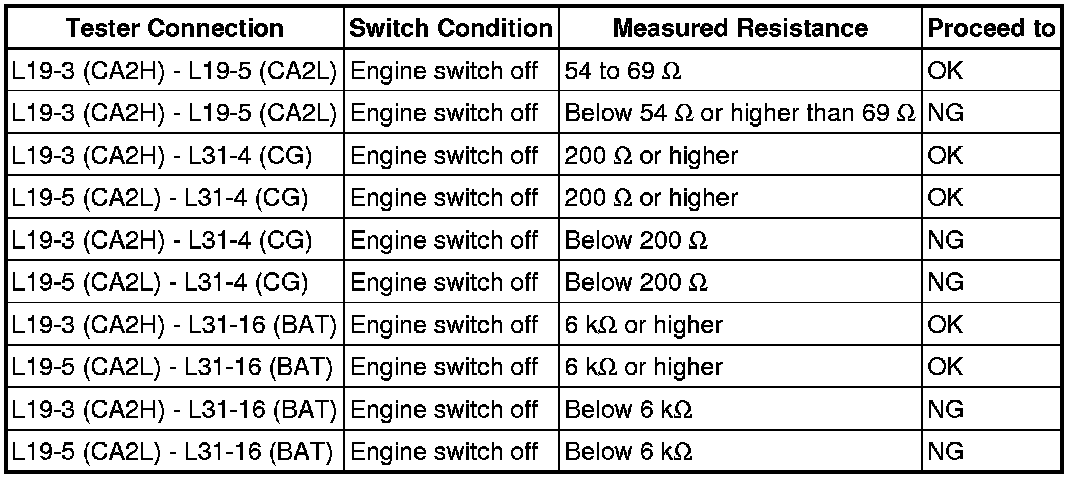

(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO CLEARANCE WARNING ECU (CA2H, CA2L)

OK -- REPLACE CLEARANCE WARNING ECU Removal

26. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

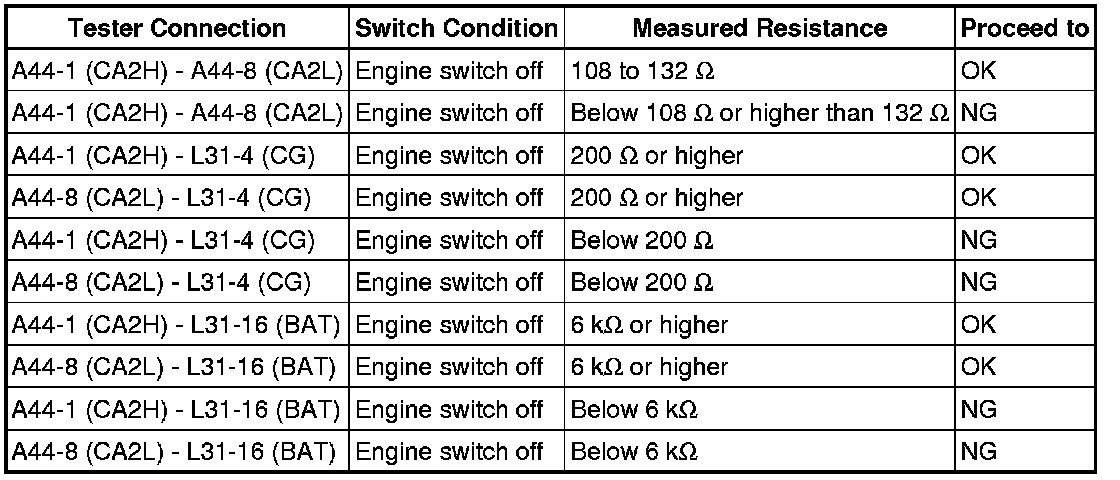

27. CHECK FOR SHORT IN CAN BUS WIRES (POWER STEERING ECU)

(a) Disconnect the A44 power steering ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO POWER STEERING ECU (NO. 7 JUNCTION CONNECTOR - POWER STEERING ECU)

OK -- REPLACE POWER STEERING ECU Removal

28. CONNECT CONNECTOR

(a) Reconnect the A66 No. 7 junction connector connector.

NEXT -- Continue to next step.

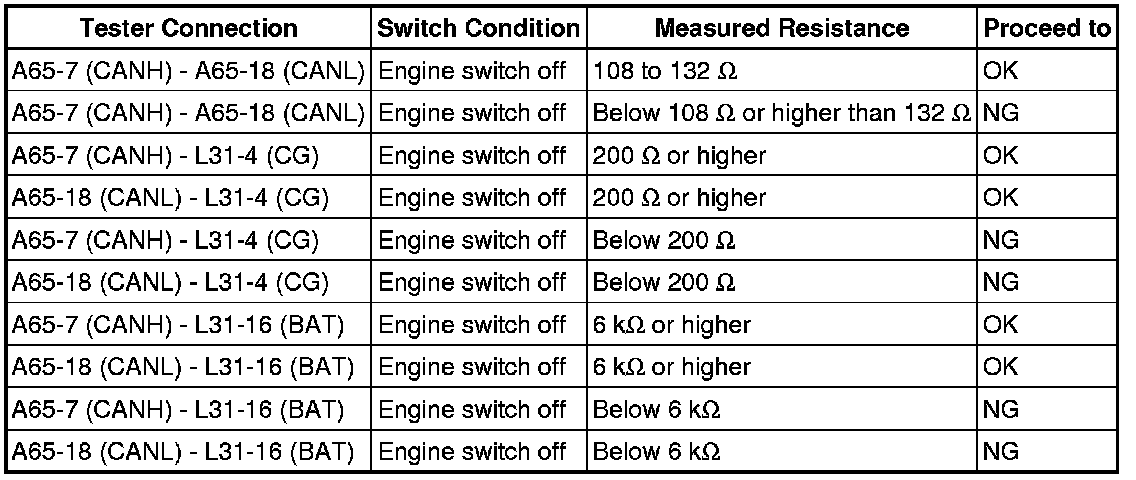

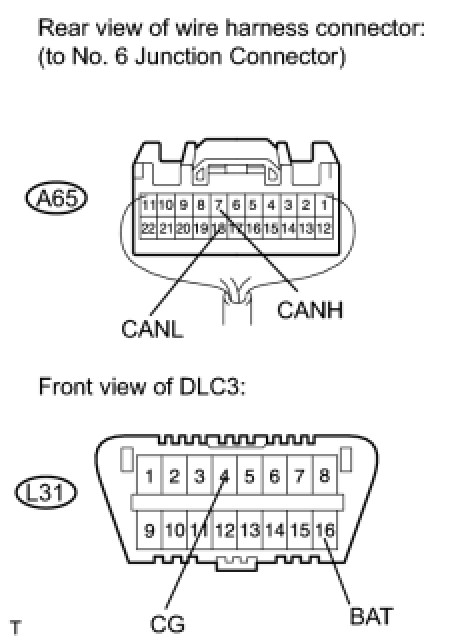

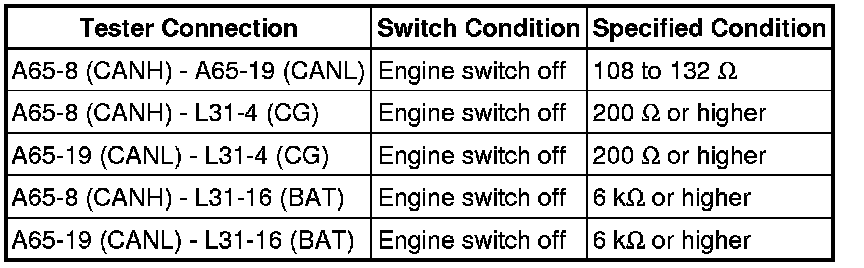

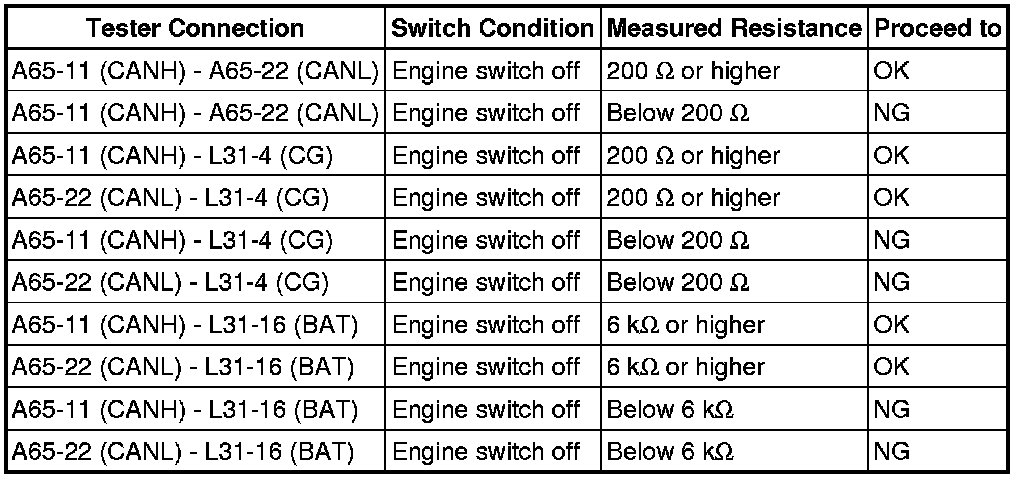

29. CHECK FOR SHORT IN CAN BUS WIRES (NO. 7 JUNCTION CONNECTOR - NO. 6 JUNCTION CONNECTOR)

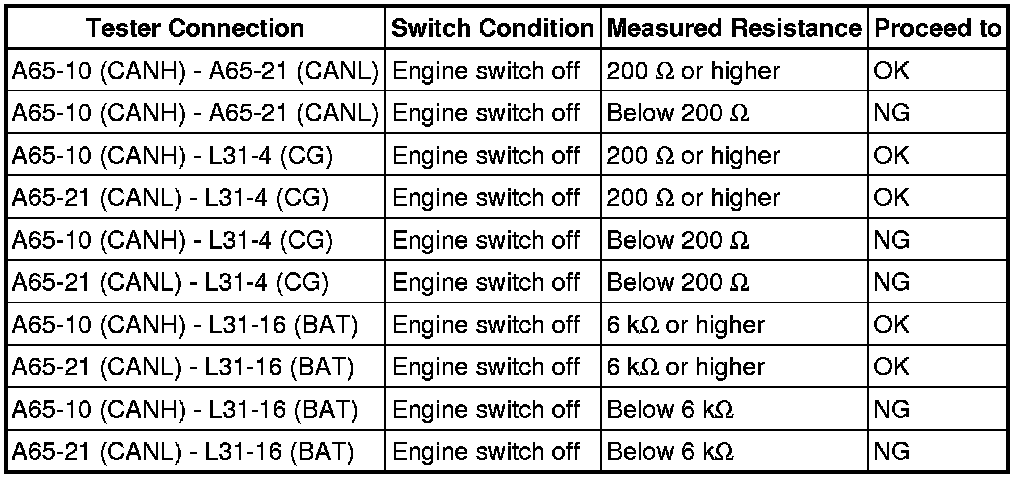

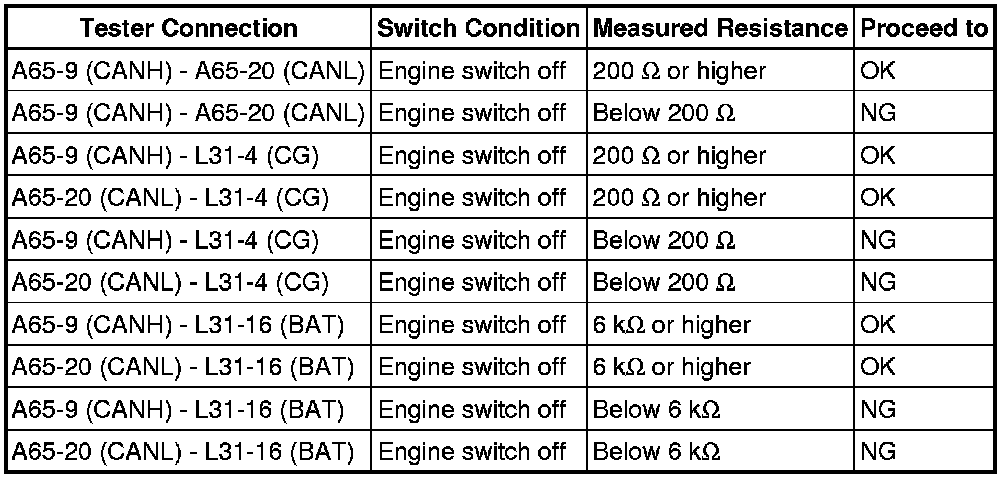

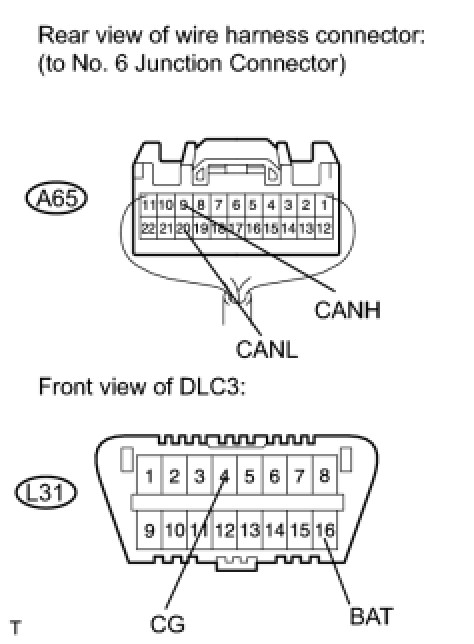

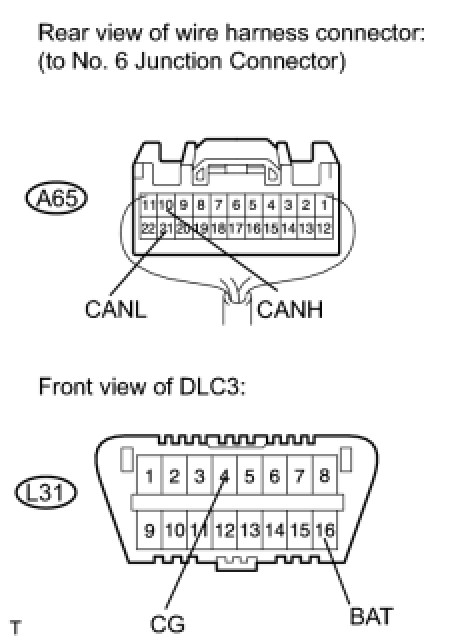

(a) Disconnect the A65 No. 6 junction connector connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 7 JUNCTION CONNECTOR - NO. 6 JUNCTION CONNECTOR)
OK -- Continue to next step.

30. CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 JUNCTION CONNECTOR - SKID CONTROL ECU)

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

31. CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 JUNCTION CONNECTOR - ECM)

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

32. CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 JUNCTION CONNECTOR - DRIVING SUPPORT ECU)

NOTICE:
For vehicles without dynamic radar cruise control System, without pre-collision system or without lane keeping assist system, go to " CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 JUNCTION CONNECTOR - ELECTRIC PARKING BRAKE ECU)".

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR
OK -- Continue to next step.

33. CHECK FOR SHORT IN CAN BUS WIRES (NO. 6 JUNCTION CONNECTOR - ELECTRIC PARKING BRAKE ECU)

(a) Measure the resistance according to the value(s) in the table below.





Result





NG -- CONNECT CONNECTOR

OK -- REPAIR OR REPLACE NO. 6 JUNCTION CONNECTOR

34. CONNECT CONNECTOR

(a) Reconnect the A65 No. 6 junction connector connector.

NEXT -- Continue to next step.

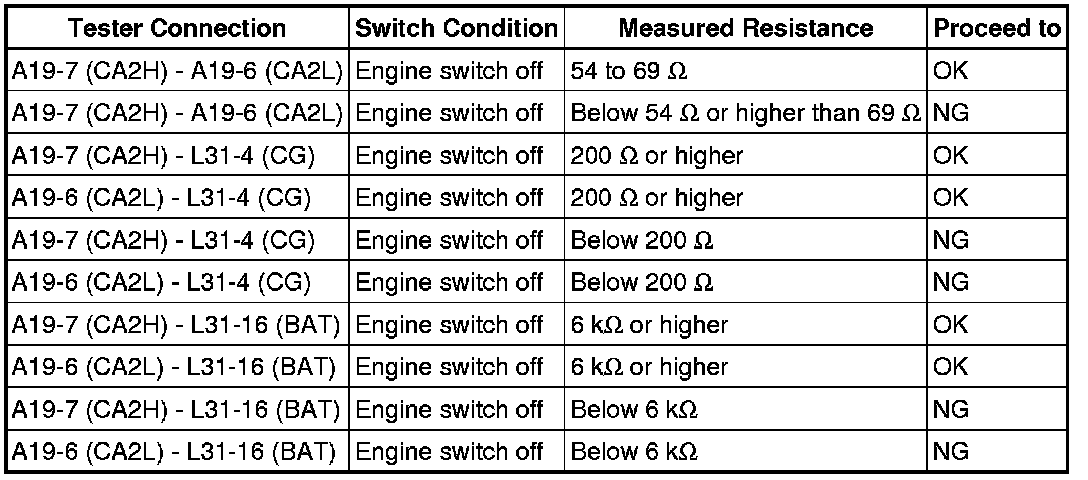

35. CHECK FOR SHORT IN CAN BUS WIRES (SKID CONTROL ECU)

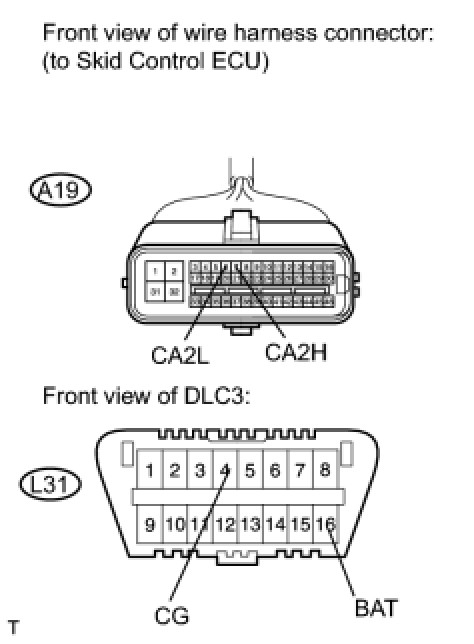

(a) Disconnect the A19 skid control ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO SKID CONTROL ECU (CA2H, CA2L)

OK -- REPLACE SKID CONTROL ECU Removal

36. CONNECT CONNECTOR

(a) Reconnect the A65 No. 6 junction connector connector.

NEXT -- Continue to next step.

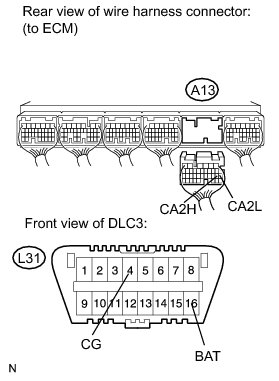

37. CHECK FOR SHORT IN CAN BUS WIRES (ECM)

(a) Disconnect the A13 ECM connector.

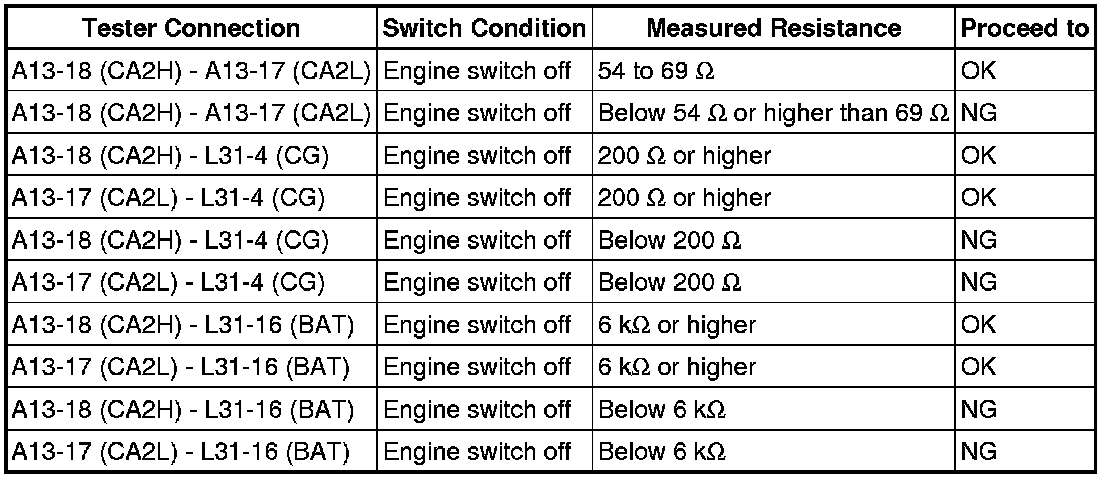

(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO ECM (CA2H, CA2L)

OK -- REPLACE ECM Removal

38. CONNECT CONNECTOR

(a) Reconnect the A65 No. 6 junction connector connector.

NEXT -- Continue to next step.

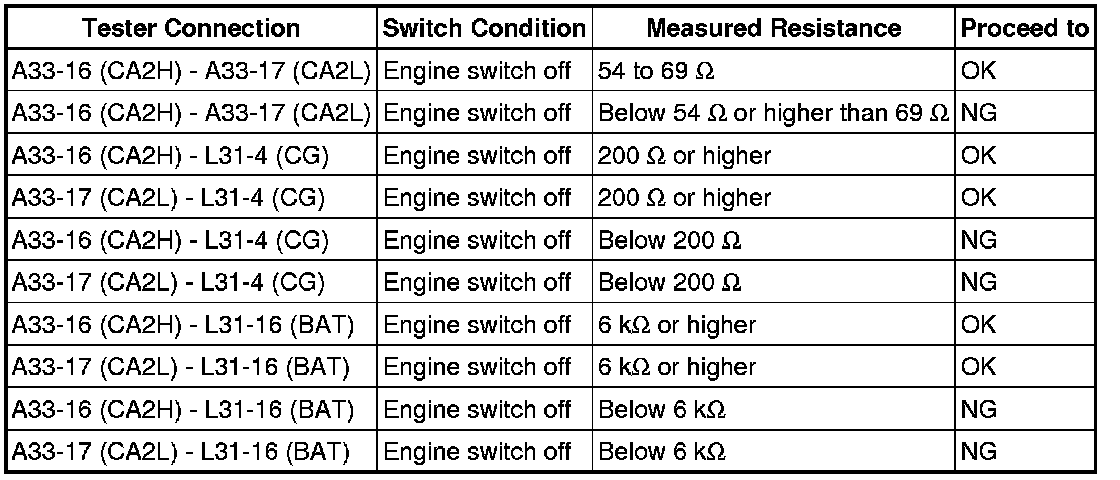

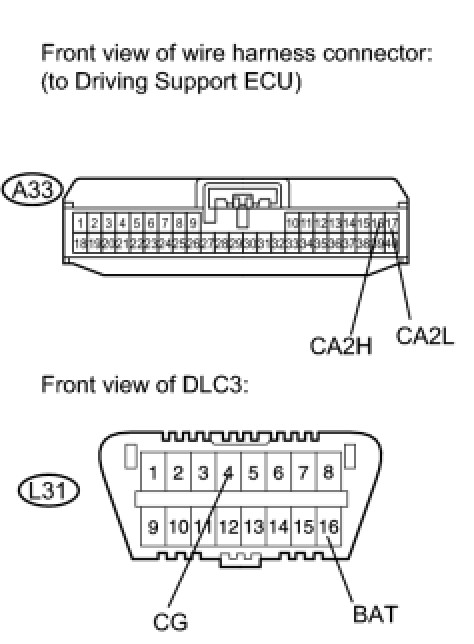

39. CHECK FOR SHORT IN CAN BUS WIRES (DRIVING SUPPORT ECU)

(a) Disconnect the A33 driving support ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO DRIVING SUPPORT ECU (CA2H, CA2L)

OK -- REPLACE DRIVING SUPPORT ECU Removal

40. CONNECT CONNECTOR

(a) Reconnect the A65 No. 6 junction connector connector.

NEXT -- Continue to next step.

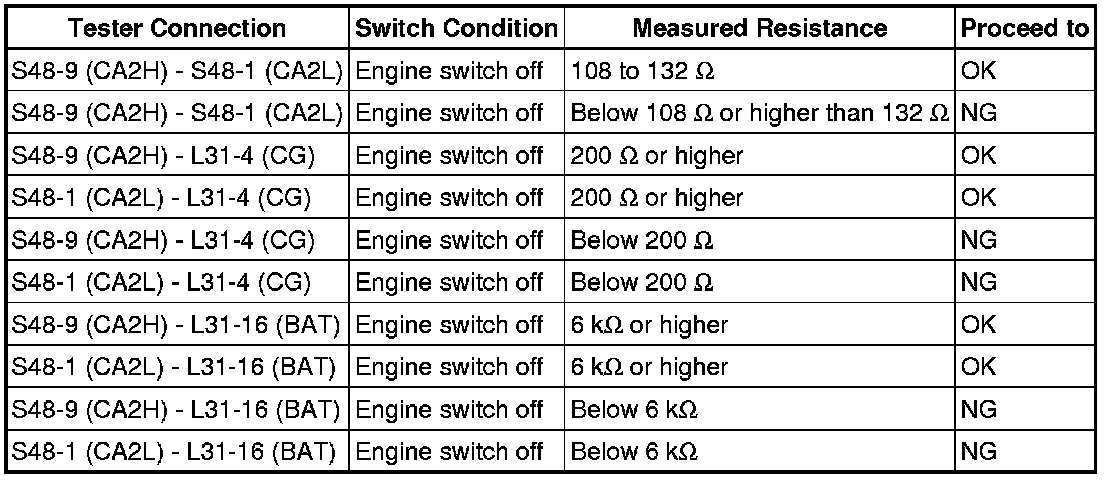

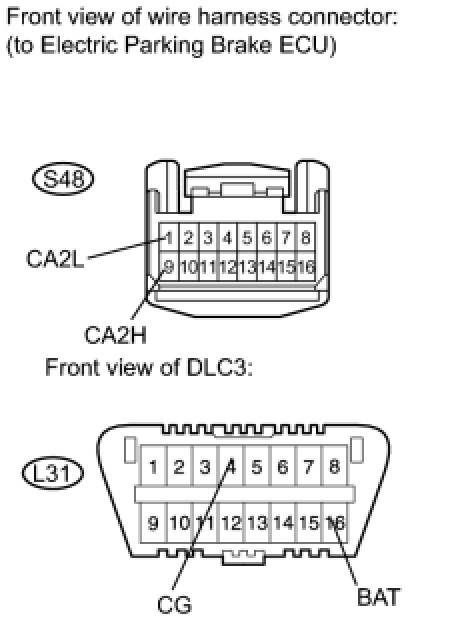

41. CHECK FOR SHORT IN CAN BUS WIRES (ELECTRIC PARKING BRAKE ECU)

(a) Disconnect the S48 electric parking brake ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Result





NG -- REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO ELECTRIC PARKING BRAKE ECU (NO. 6 JUNCTION CONNECTOR - ELECTRIC PARKING BRAKE ECU)

OK -- REPLACE ELECTRIC PARKING BRAKE ECU Removal

42. CHECK HARNESS AND CONNECTOR (ECM - BATTERY AND BODY GROUND)





(a) Connect the cable to the negative (-) battery terminal.

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

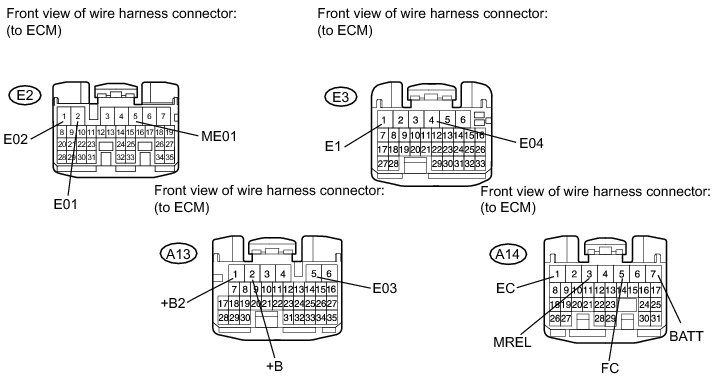

(b) Disconnect the A13, A14, E2 and E3 ECM connectors.

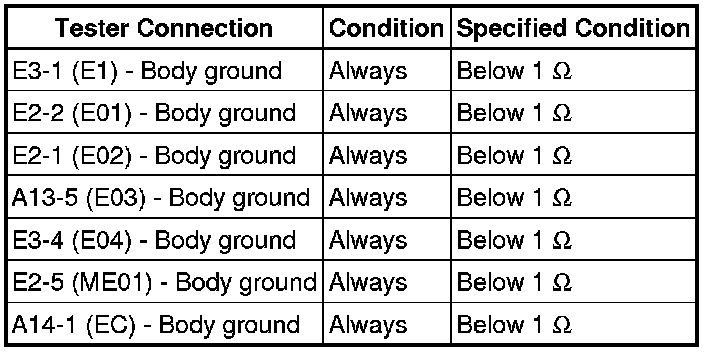

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

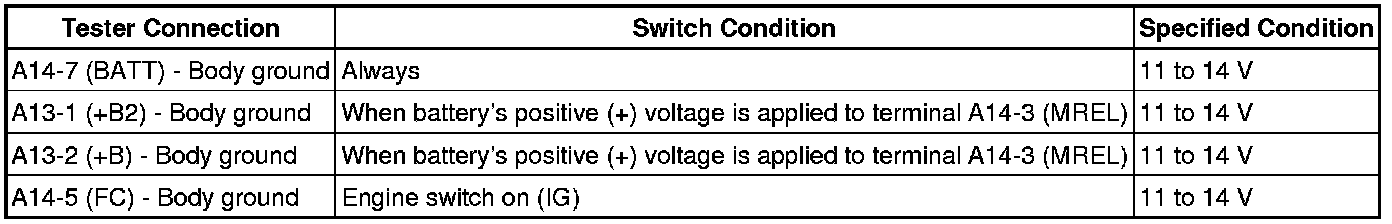

(d) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal
