U0246

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM: U0246: Lost Communication with Rear Seat Control ECU LH
U0246 - Lost Communication with Rear Seat Control ECU LH

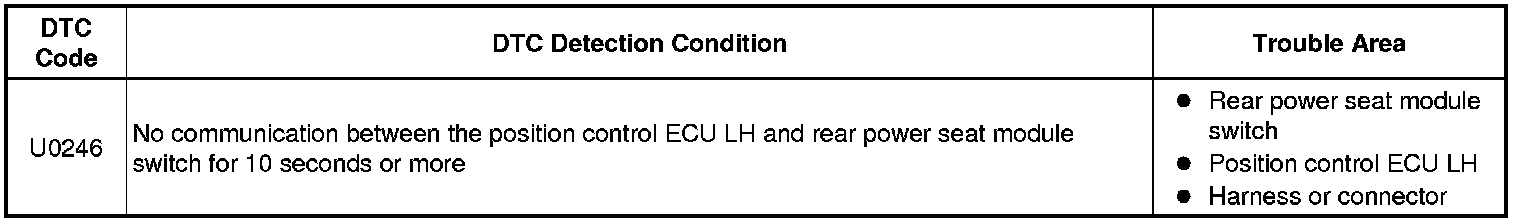

DESCRIPTION

This DTC is output when LIN communication between the position control ECU LH and rear power seat module switch stops for 10 seconds or more.





HINT
For vehicles with rear power seat control system only.

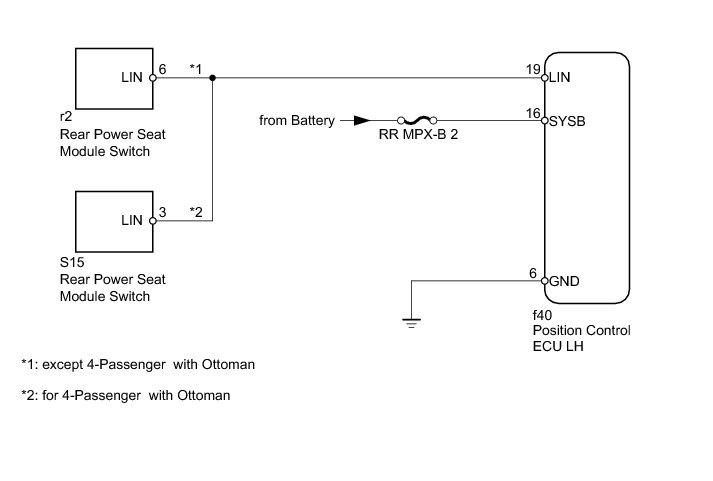

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When using the Techstream with the engine switch off to troubleshoot:

Connect the Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the Techstream and vehicle begins.

HINT
When DTC U0211, U0246, U1130 and U1131 are output simultaneously, perform troubleshooting for "Rear Side Switch Module LIN Communication Malfunction" first Rear Side Switch Module LIN Communication Malfunction.

PROCEDURE

1. CLEAR DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

2. CHECK FOR DTC

(a) Recheck for DTC Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC U0246 is not output.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (REAR POWER SEAT MODULE SWITCH - POSITION CONTROL ECU LH)

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting

3. REPAIR OR REPLACE HARNESS OR CONNECTOR (REAR POWER SEAT MODULE SWITCH - POSITION CONTROL ECU LH)

(a) Disconnect the r2*1 or S15*2 module switch connector.

HINT
*1: except 4-Passenger with Ottoman

*2: for 4-Passenger with Ottoman





(b) Disconnect the f40 ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:

except 4-Passenger with Ottoman:





for 4-Passenger with Ottoman:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. POSITION CONTROL ECU LH (BATTERY VOLTAGE AND GROUND)

(a) Disconnect the f40 ECU connector.





(b) Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance:





Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. REPLACE POSITION CONTROL ECU LH

(a) Temporarily replace the position control ECU LH with a new or normally functioning one.

except Ottoman: Disassembly

for Ottoman: Disassembly

(b) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

6. CHECK FOR DTC

(a) Recheck for DTC Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC U0246 is not output.

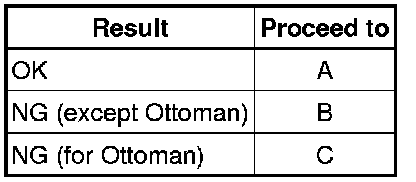

Result





B -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly

C -- REPLACE REAR POWER SEAT MODULE SWITCH Disassembly

A -- END (POSITION CONTROL ECU LH IS DEFECTIVE)
