AA80F Automatic Transmission

AA80F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)
P2759 - Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)

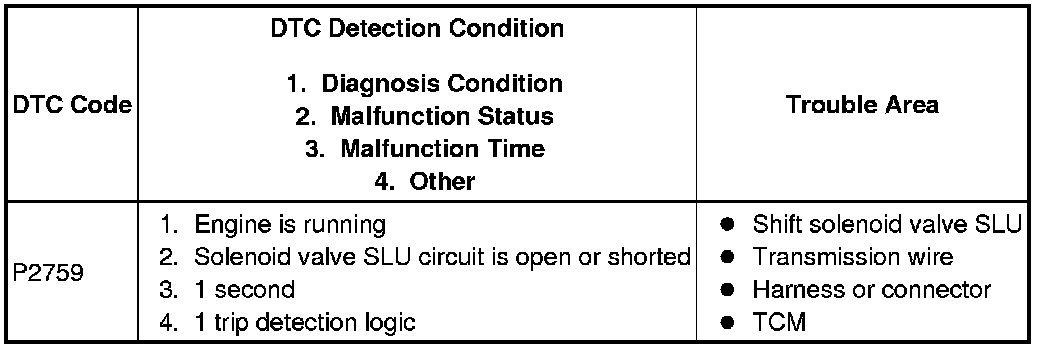

DESCRIPTION

The TCM controls the lock-up solenoid using a predetermined the current, and performs lock-up and flex lock-up control.









MONITOR DESCRIPTION

When an open or short in the shift solenoid valve SLU circuit is detected, the TCM determines that there is a malfunction. The TCM will illuminate the MIL and store this DTC.

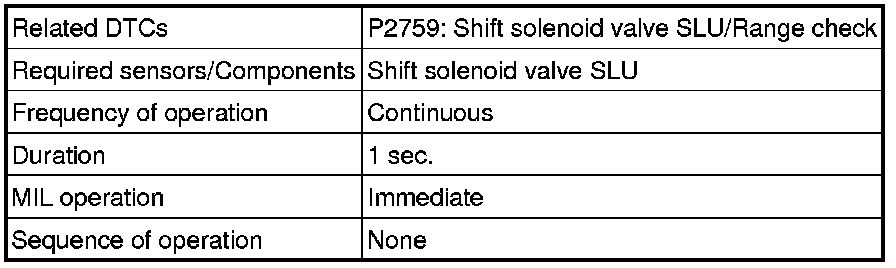

MONITOR STRATEGY

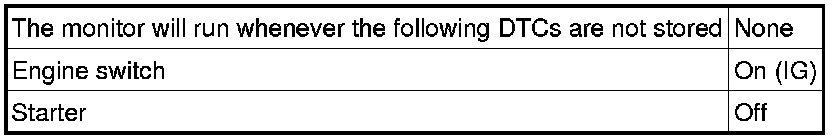

TYPICAL ENABLING CONDITIONS

All





Condition (A)





Condition (B)





Condition (C)





TYPICAL MALFUNCTION THRESHOLDS

When one of the following conditions is met: Condition (A), (B) or (C)

Condition (A) and (B)





Condition (C)





COMPONENT OPERATING RANGE





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs AA80F Automatic Transmission System.

PROCEDURE

1. CHECK HARNESS AND TRANSMISSION WIRE (TRANSMISSION WIRE - TCM, TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLU))

(a) Disconnect the E7 TCM connector.

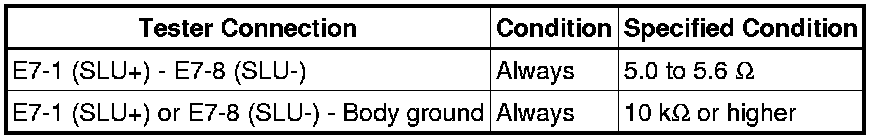

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)
OK -- Continue to next step.

2. REPLACE TCM

(a) Replace the TCM Removal.

NEXT -- PERFORM A/T CODE REGISTRATION Registration

3. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)

(a) Disconnect the E50 transmission wire connector.





(b) Disconnect the E7 TCM connector.

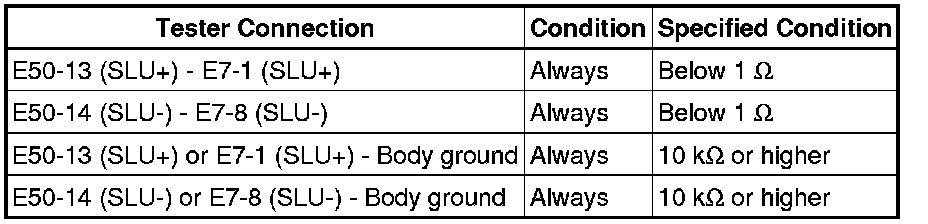

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. INSPECT SHIFT SOLENOID VALVE SLU

(a) Remove shift solenoid valve SLU Disassembly.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(c) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

NG -- REPLACE SHIFT SOLENOID VALVE SLU Disassembly

OK -- REPAIR OR REPLACE TRANSMISSION WIRE Removal
