AA80F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0776: Pressure Control Solenoid "B" Performance (Shift Solenoid Valve SL2)
P0776 - Pressure Control Solenoid "B" Performance (Shift Solenoid Valve SL2)

OFF malfunction (A)

OFF malfunction (B)

OFF malfunction (C)

OFF malfunction (D)

OFF malfunction (E)

ON malfunction

- When one of the following conditions is met: ON malfunction (A), (B) or (C)

2 detections are necessary per driving cycle:

1st detection: temporary flag on

2nd detection: pending fault code on

ON malfunction (A)

- When either condition below is met: Condition (1) or (2)

Condition (1)

Condition (2)

ON malfunction (B)

- When either condition below is met: Condition (1) or (2)

Condition (1)

Condition (2)

ON malfunction (C)

- When either condition below is met: Condition (1) or (2)

Condition (1)

Condition (2)

WIRING DIAGRAM

Refer to DTC P2765 AA80F Automatic Transmission.

INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs AA80F Automatic Transmission System.

PROCEDURE

1. CHECK DTC OUTPUT (IN ADDITION TO DTC P0771, P0776 AND P2714)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / ECT / Trouble Codes.

(e) Read the DTCs using the Techstream.

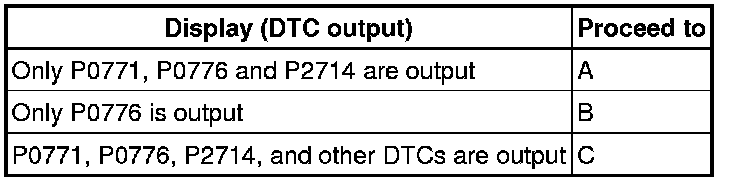

Result:

HINT
If any other codes besides P0771, P0776 and P2714 are output, perform troubleshooting for those DTCs first.

B -- INSPECT SHIFT SOLENOID VALVE SL2

C -- GO TO DTC CHART Automatic Transmission System - AA80F
A -- Continue to next step.

2. CLEAR DTC AND PERFORM STALL SPEED TEST

(a) Clear the DTCs AA80F Automatic Transmission System.

HINT
Write down the currently output DTCs before clearing them.

(b) Perform the stall speed test Mechanical System Tests.

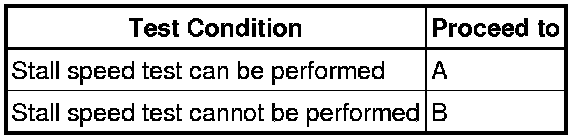

Result:

B -- INSPECT SHIFT SOLENOID VALVE SLT
A -- Continue to next step.

3. CLEAR DTC AND PERFORM RUNNING TEST

(a) Clear the DTCs AA80F Automatic Transmission System.

HINT
Write down the currently output DTCs before clearing them.

(b) Start the engine, drive the vehicle and perform the inspection.

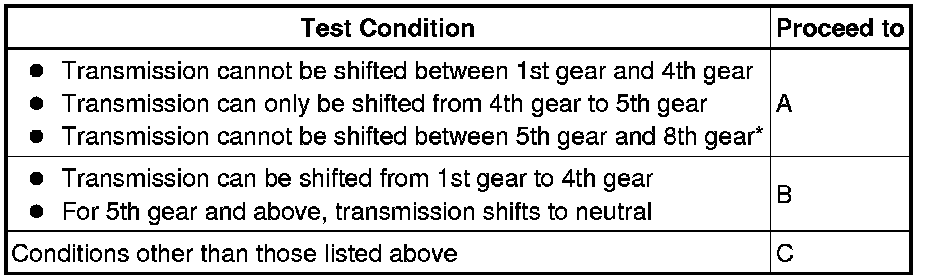

Result:

HINT
*: If the transmission is shifted to 5th gear or above, gear shifts will no longer be able to be performed. When performing the test again, first clear the DTCs.

B -- INSPECT SHIFT SOLENOID VALVE SL2

C -- INSPECT SPEED SENSOR TERMINAL (NC3 TERMINAL)
A -- Continue to next step.

4. INSPECT SHIFT SOLENOID VALVE SR

(a) Remove shift solenoid valve SR Disassembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

(c) Connect the battery's positive (+) lead to the terminal of the solenoid valve connector, and the negative (-) lead to the solenoid body. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

OK -- INSPECT TRANSMISSION VALVE BODY ASSEMBLY

NG -- REPLACE SHIFT SOLENOID VALVE SR Disassembly

5. INSPECT SHIFT SOLENOID VALVE SL2

(a) Remove shift solenoid valve SL2 Disassembly.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

(c) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

NG -- REPLACE SHIFT SOLENOID VALVE SLT Disassembly
OK -- Continue to next step.

7. INSPECT TRANSMISSION VALVE BODY ASSEMBLY

(a) Check the transmission valve body assembly Disassembly.

OK:

There are no foreign objects on any valve.

NG -- REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSEMBLY Removal
OK -- Continue to next step.

8. INSPECT TORQUE CONVERTER ASSEMBLY

(a) Check the torque converter assembly AA80F Automatic Transmission.

OK:

The torque converter assembly operates normally.

NG -- REPLACE TORQUE CONVERTER ASSEMBLY Removal

OK -- REPAIR OR REPLACE AUTOMATIC W/TRANSFER TRANSMISSION ASSEMBLY Removal

9. INSPECT SPEED SENSOR TERMINAL (NC3 TERMINAL)

(a) Disconnect the E50 transmission wire connector.

(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

(d) Turn the engine switch off.

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)
OK -- Continue to next step.

10. INSPECT TRANSMISSION WIRE (SPEED SENSOR NC3)

(a) Disconnect the speed sensor (NC3) connector.

(b) Disconnect the E50 transmission wire connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPAIR OR REPLACE TRANSMISSION WIRE Removal

OK -- REPLACE SPEED SENSOR Removal

11. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)

(a) Disconnect the E50 transmission wire connector.

(b) Disconnect the E7 TCM connector.

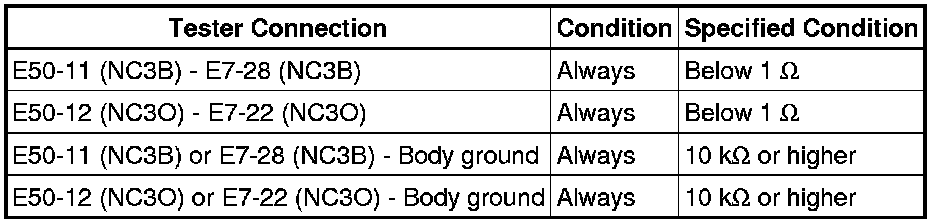

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

12. REPLACE TCM

(a) Replace the TCM Removal.

NEXT -- PERFORM A/T CODE REGISTRATION Registration
