AA80F Automatic Transmission

AA80F AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0712, P0713: Transmission Fluid Temperature Sensor "A" Circuit Low Input


DESCRIPTION

The transmission fluid temperature is detected using the Automatic Transmission Fluid (ATF) temperature sensor, which is built onto the valve body. Depending on the fluid temperature, a signal is input into the TCM.

The TCM applies a voltage to the temperature sensor through TCM terminal OIL.

The sensor resistance changes with the ATF temperature. As the temperature becomes higher, the sensor resistance decreases.

One terminal of the sensor is grounded so that the sensor resistance decreases and the voltage decreases as the temperature becomes higher.

The TCM calculates the ATF temperature based on the voltage signal.





MONITOR DESCRIPTION

The ATF temperature sensor converts ATF temperature to an electrical resistance value. Based on the resistance, the TCM determines the ATF temperature and detects an open or short in the ATF temperature circuit. If the resistance value of the ATF temperature is below 79 Ohms*1 or higher than 156 kOhms*2, the TCM interprets this as a fault in the ATF sensor or wiring. The TCM illuminates the MIL and stores the DTC.

HINT
- *1: 150°C (302°F) or higher is indicated regardless of the actual ATF temperature.
- *2: -40°C (-40°F) is indicated regardless of the actual ATF temperature.
- The ATF temperature can be checked on the Techstream display.

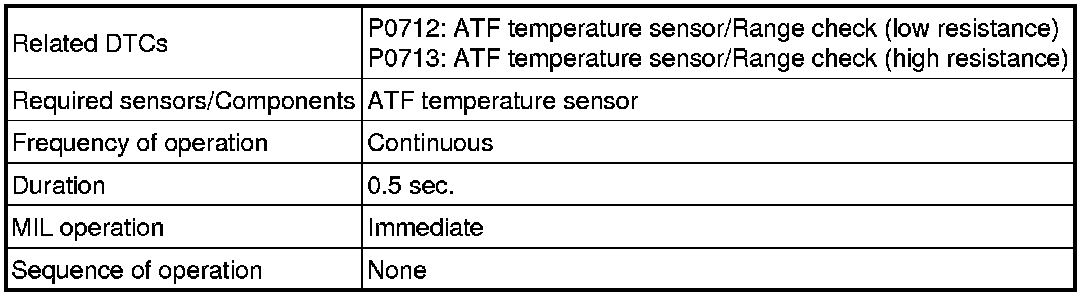

MONITOR STRATEGY

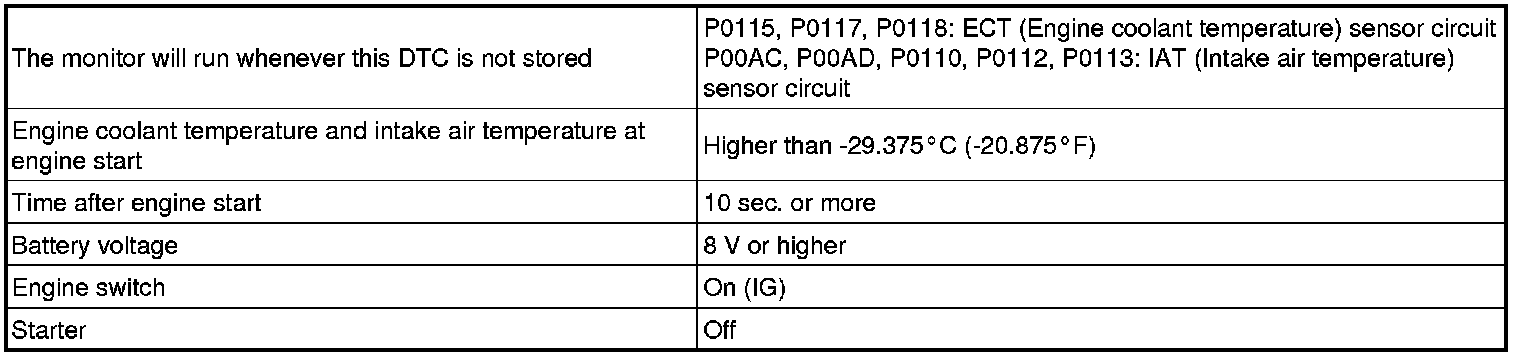

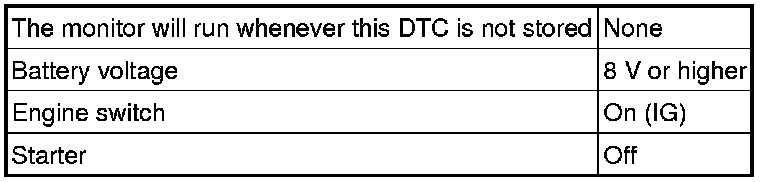

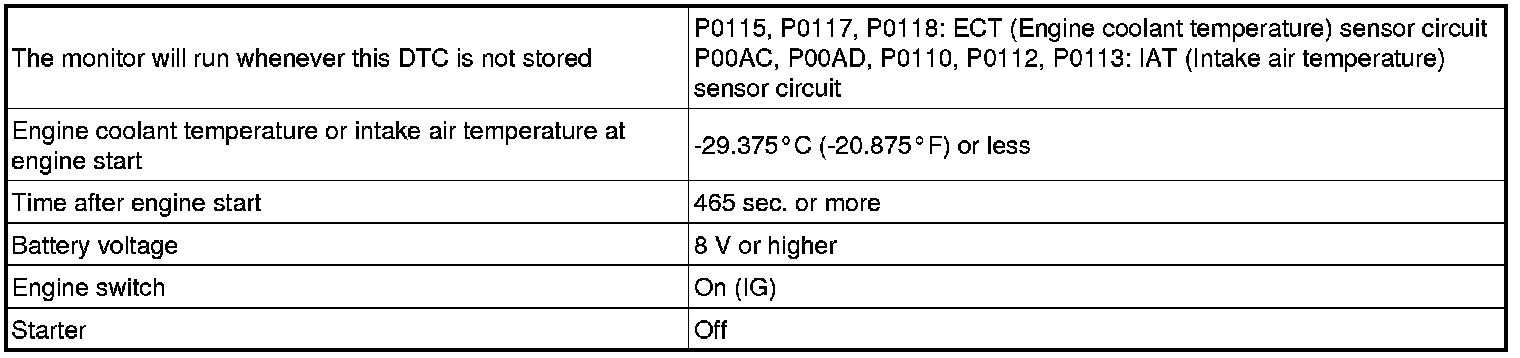

TYPICAL ENABLING CONDITIONS

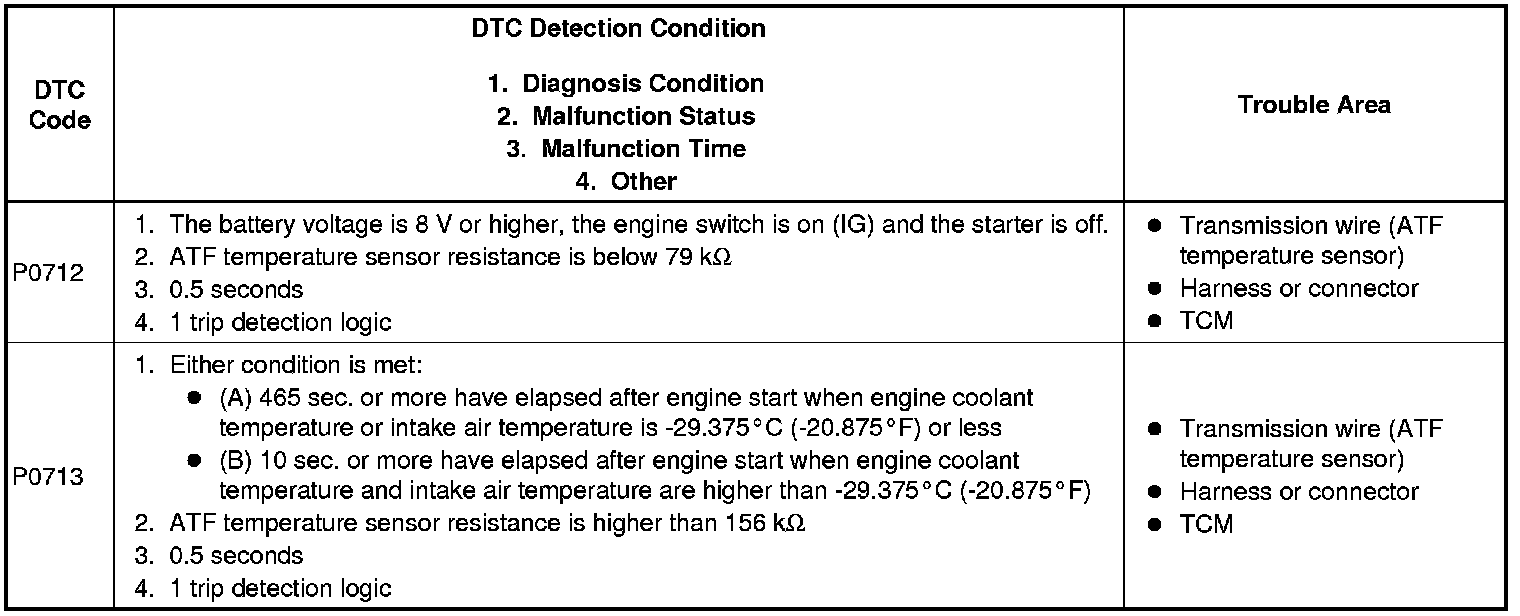

P0712: Range check (Low resistance)

*





P0713: Range check (High resistance)

- One of the following conditions is met: Condition (A) or (B)

Condition (A)

*





Condition (B)

*





TYPICAL MALFUNCTION THRESHOLDS

P0712: Range check (low resistance)





P0713: Range check (high resistance)





COMPONENT OPERATING RANGE





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs AA80F Automatic Transmission System.

HINT
Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

1. Warm up the engine.

2. Turn the engine switch off.

3. Connect the Techstream to the DLC3.

4. Turn the engine switch on (IG).

5. Turn the Techstream on.

6. Enter the following menus: Powertrain / ECT / Data List.

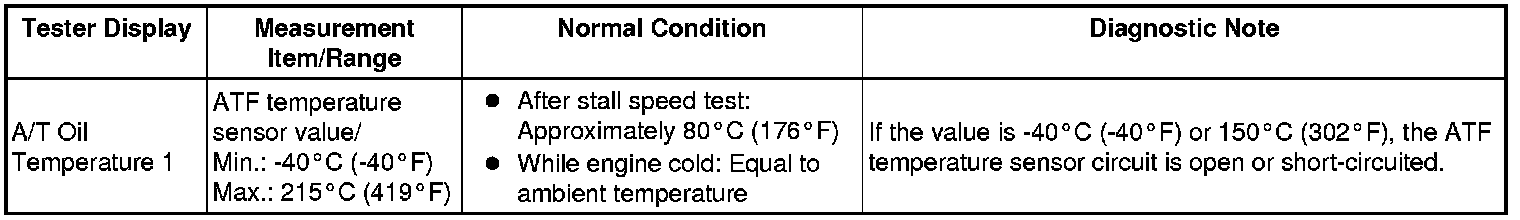

7. According to the display on the Techstream, read the Data List.

TCM





HINT

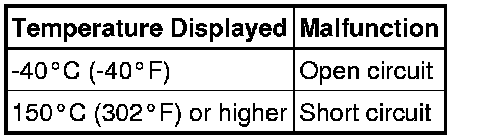

- When DTC P0712 is output and the Techstream output is 150°C (302°F) or higher, there is a short circuit.
- When DTC P0713 is output and the Techstream output is -40°C (-40°F), there is an open circuit. Check the temperature displayed on the Techstream in order to check if a malfunction exists.





HINT
If a circuit related to the ATF temperature sensor becomes open, P0713 is stored in approximately 0.5 seconds. It is not necessary to inspect the circuit when P0711 is stored.

PROCEDURE

1. CHECK HARNESS AND TRANSMISSION WIRE (TRANSMISSION WIRE - TCM, TRANSMISSION WIRE (ATF TEMPERATURE SENSOR))

(a) Disconnect the E6 TCM connector.

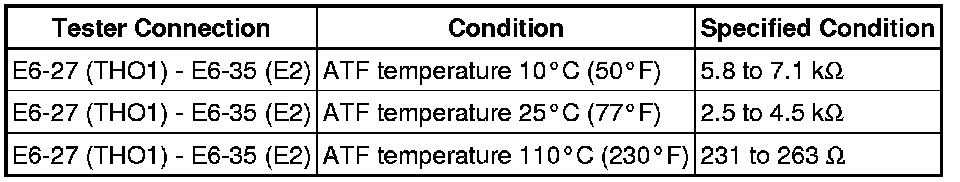

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





HINT
The resistance value for the 25°C (77°F) ATF temperature condition is a reference value.

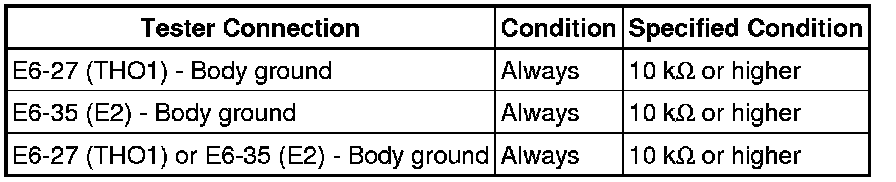

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)
OK -- Continue to next step.

2. REPLACE TCM

(a) Replace the TCM Removal.

NEXT -- PERFORM A/T CODE REGISTRATION Registration

3. CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - TCM)

(a) Disconnect the E50 transmission wire connector.





(b) Disconnect the E6 TCM connector.

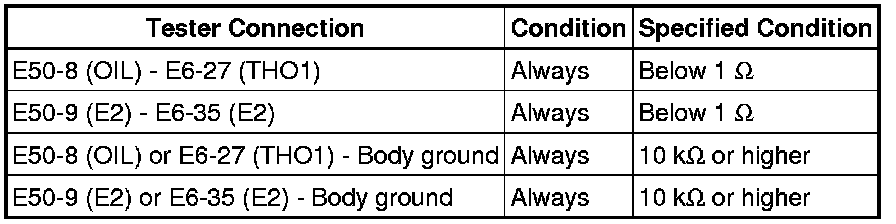

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE TRANSMISSION WIRE Removal
