1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input)
P0705 - Transmission Range Sensor Circuit Malfunction (PRNDL Input)

DESCRIPTION

The park/neutral position switch detects the shift lever position and sends signals to the ECM.

MONITOR DESCRIPTION

These DTCs indicate a problem with the park/neutral position switch and the wire harness in the park/neutral position switch circuit.

The park/neutral position switch detects the shift lever position and sends a signal to the ECM.

For security, the park/neutral position switch detects the shift lever position so that engine can be started only when the shift lever is in the P or N position.

The park/neutral position switch sends a signal to the ECM according to the shift position (P, R, N, D, M or S). The ECM determines that there is a problem with the switch or related parts if it receives more than 1 position signal simultaneously. The ECM will turn on the MIL and store the DTC.

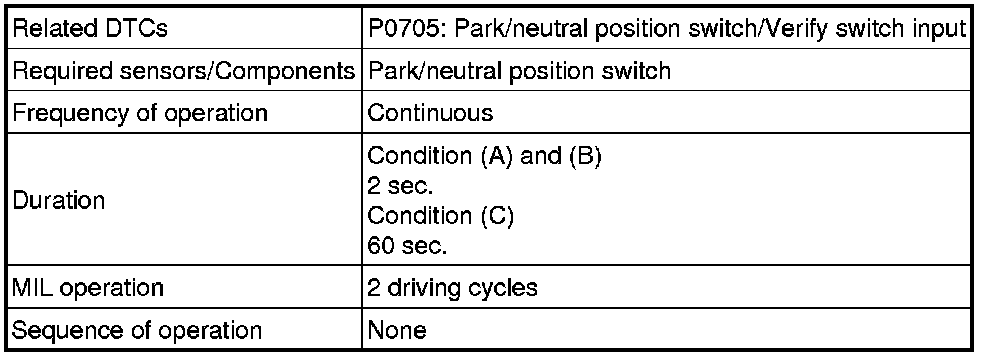

MONITOR STRATEGY

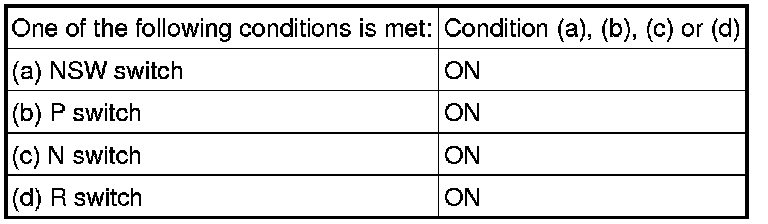

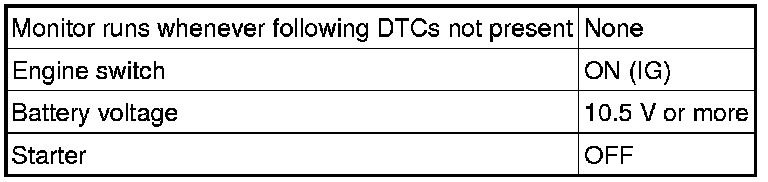

TYPICAL ENABLING CONDITIONS

All

Condition (B)

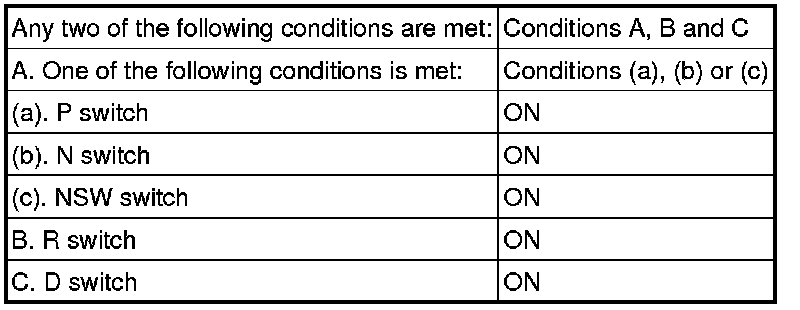

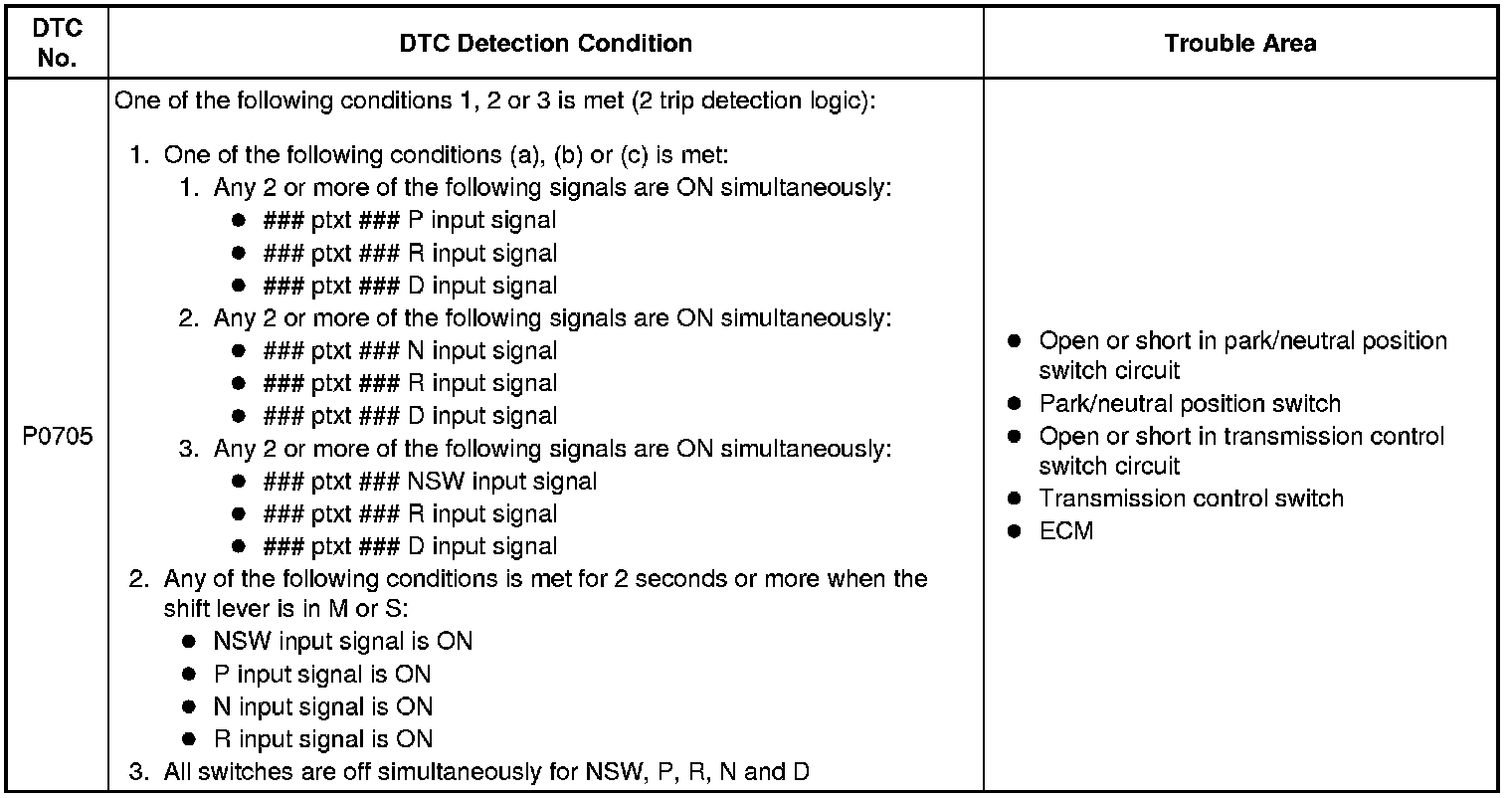

TYPICAL MALFUNCTION THRESHOLDS

1. One of the following conditions is met: Condition (A), (B) and (C)

Condition (A)

Condition (B)

Condition (C)

COMPONENT OPERATING RANGE

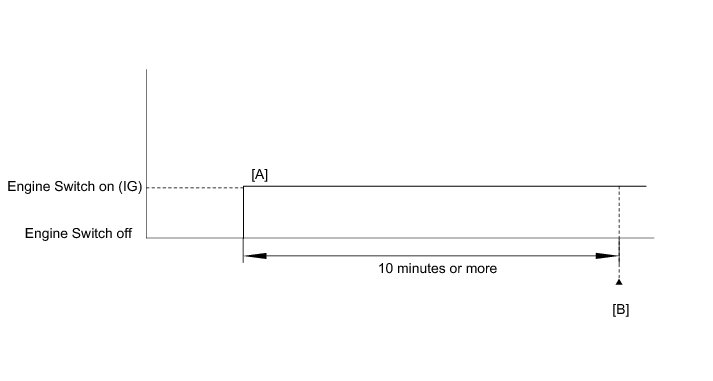

CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Wait 10 minutes or more.

7. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.

8. Read the pending DTCs [B].

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

10. Input the DTC: P0705.

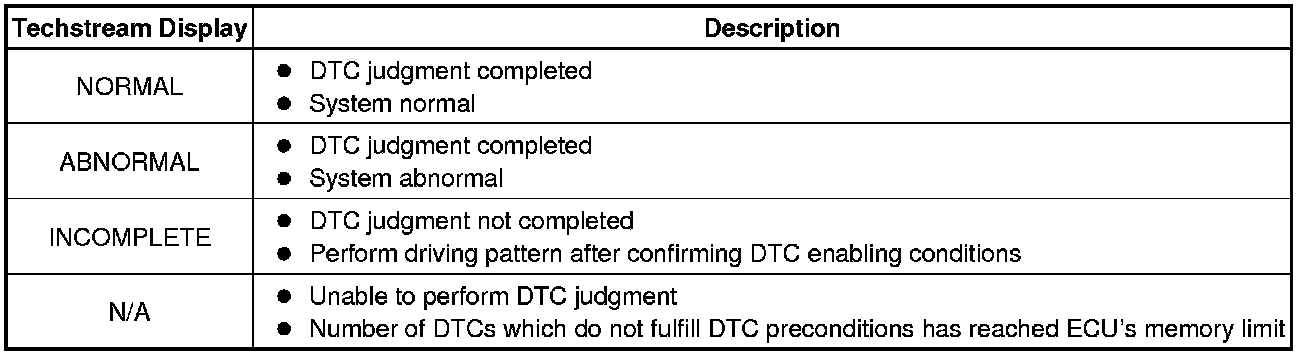

11. Check the DTC judgment result.

HINT
If the judgment result shows ABNORMAL, the system has a malfunction.

12. If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

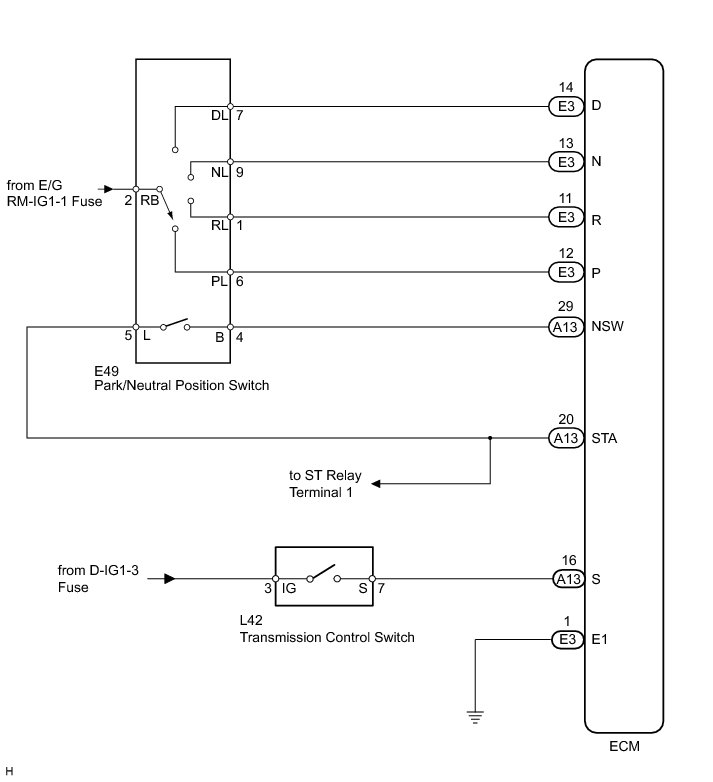

WIRING DIAGRAM

INSPECTION PROCEDURE

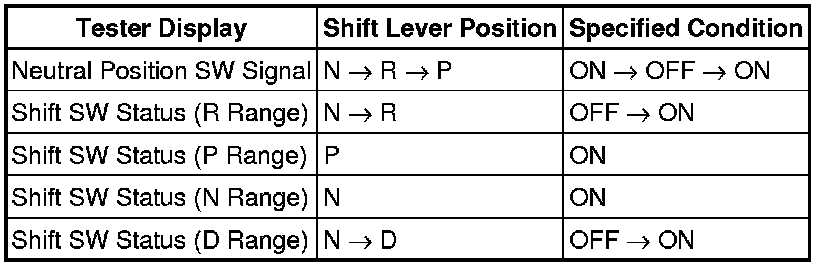

1. DATA LIST

HINT
Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:

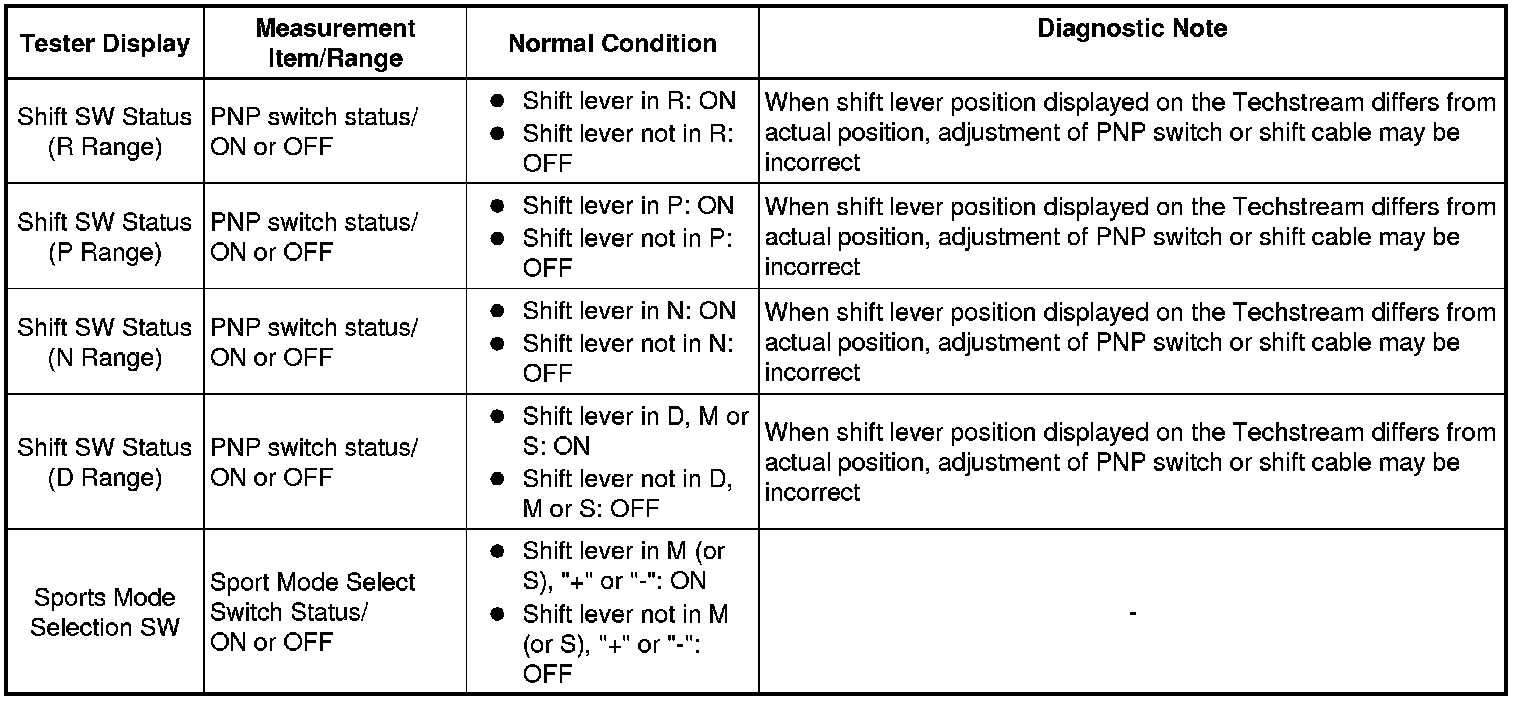

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Warm up the engine.

(b) Turn the engine switch off.

(c) Connect the Techstream to the DLC3.

(d) Turn the engine switch on (IG).

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine / Data List / All Data /

(g) According to the display on the Techstream.

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / All Data /

(e) According to the display on the Techstream.

OK:

OK -- READ VALUE USING TECHSTREAM
NG -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (BATTERY - PARK/NEUTRAL POSITION SWITCH)

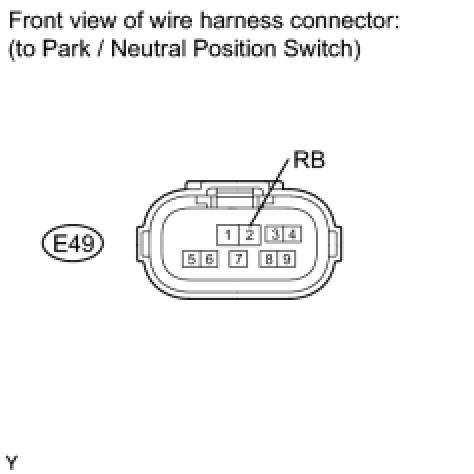

(a) Disconnect the E49 park/neutral position switch.

(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

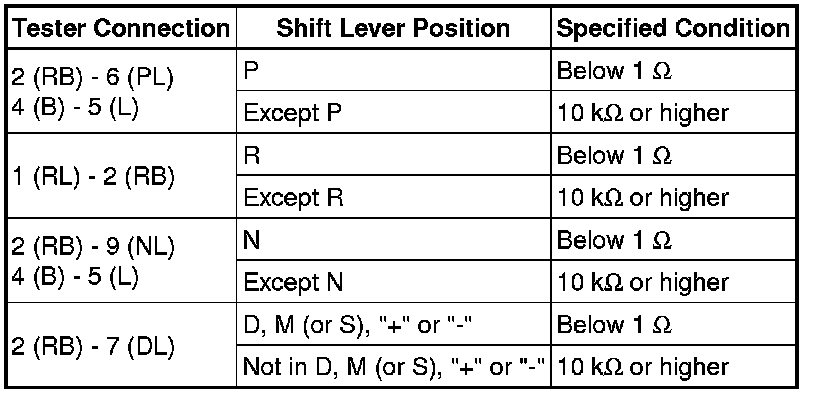

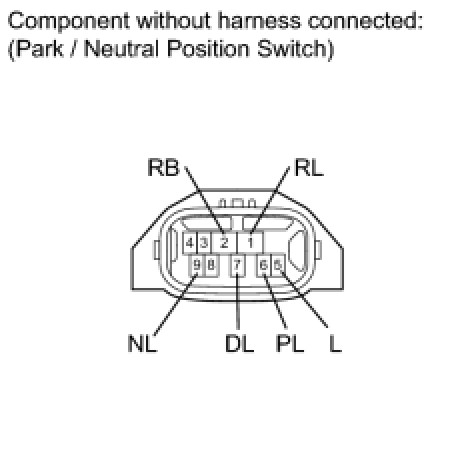

3. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

(a) Disconnect the E49 park/neutral position switch connector.

(b) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

Standard resistance:

(c) Reconnect the E49 park/neutral position switch.

NG -- REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY Removal
OK -- Continue to next step.

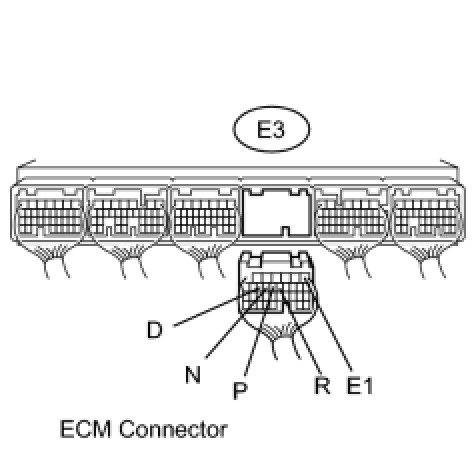

4. CHECK HARNESS AND CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH)

(a) Turn the engine switch on (IG).

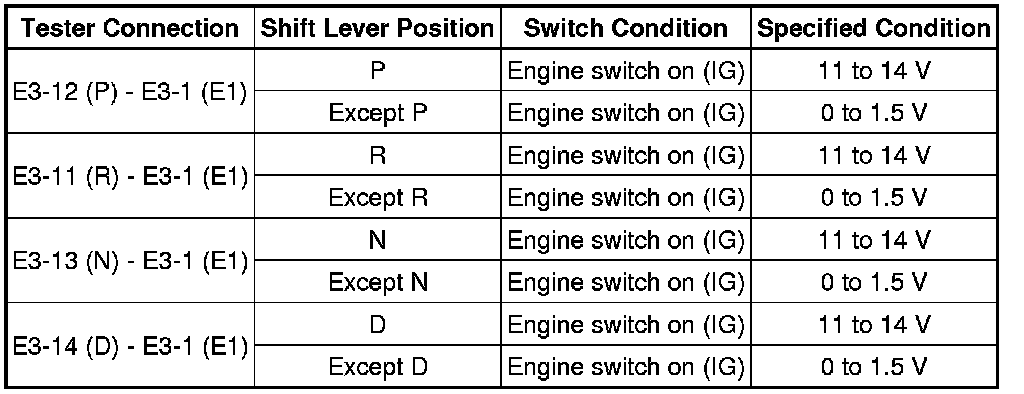

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:

(e) Turn the engine switch on (IG).

(f) Measure the voltage according to the value(s) in the table below.

Standard voltage:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal

5. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Data List / All Data /

(e) According to the display on the Techstream.

OK:

OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
NG -- Continue to next step.

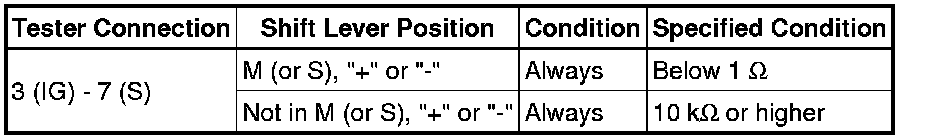

6. INSPECT TRANSMISSION CONTROL SWITCH

(a) Disconnect the L42 transmission control switch connector of the shift lock control unit assembly.

(b) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.

Standard resistance:

NG -- REPLACE TRANSMISSION CONTROL SWITCH
OK -- Continue to next step.

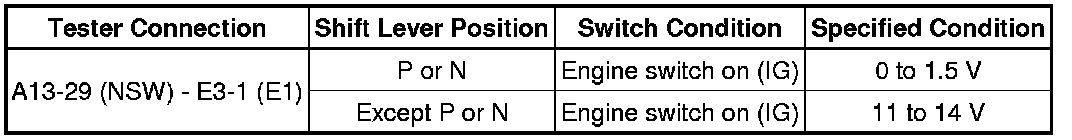

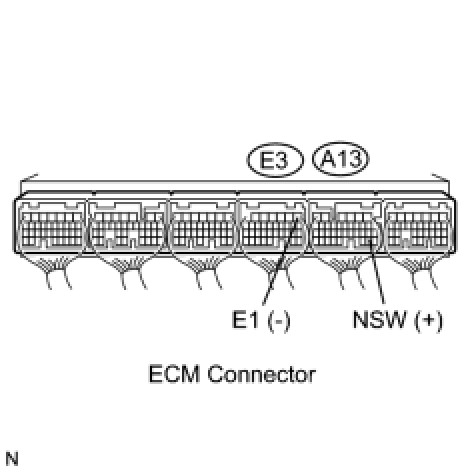

7. CHECK HARNESS AND CONNECTOR (ECM CONNECTOR - BODY GROUND)

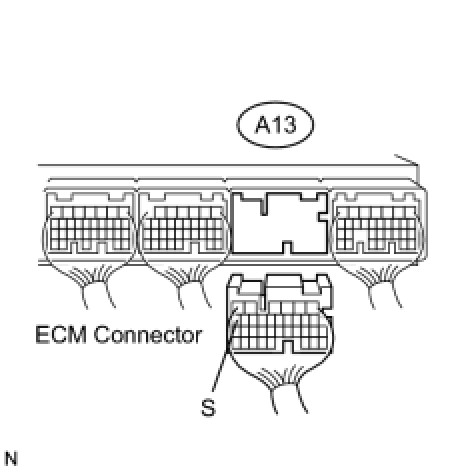

(a) Disconnect the A13 ECM connector.

(b) Turn the engine switch on (IG).

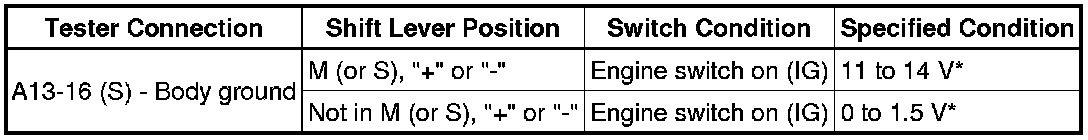

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:

HINT
*: The voltage will drop slightly due to the turning on of the back up light.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal
