AA80E Automatic Transmission

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0617: Starter Relay Circuit High
P0617 - Starter Relay Circuit High

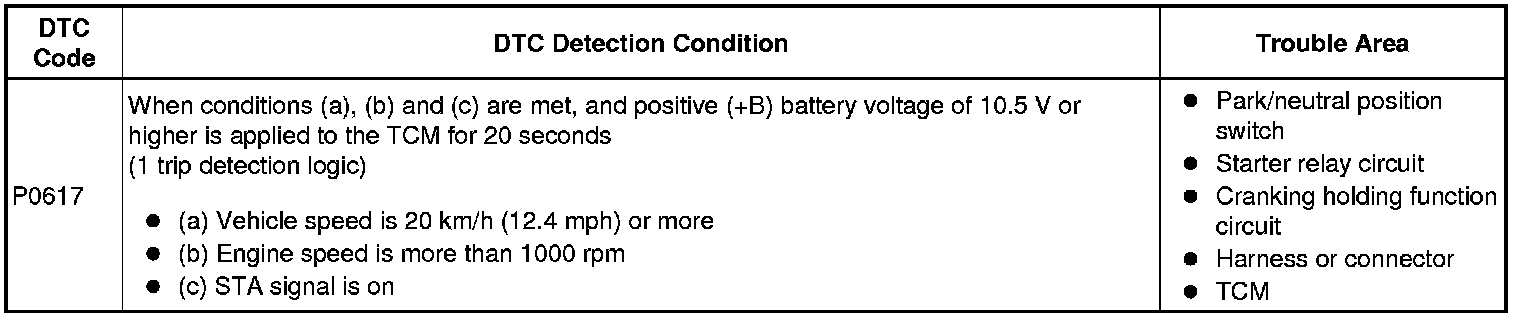

DESCRIPTION

While the engine is being cranked, positive battery voltage is applied to terminal STA of the TCM.

If the TCM detects the starter control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The TCM then illuminates the MIL and stores the DTC.

This monitor runs when the vehicle is driven at 20 km/h (12.4 mph) or more for over 20 seconds.

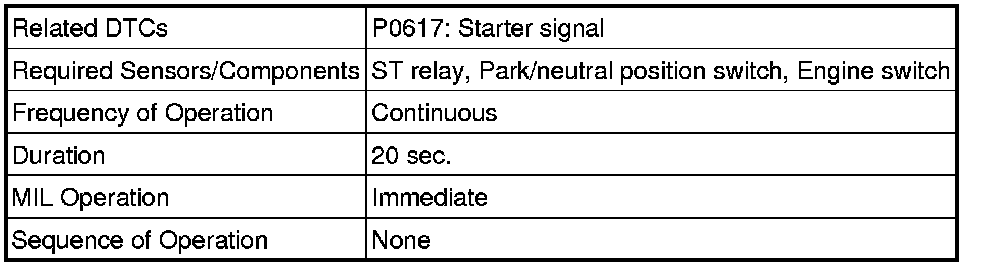

MONITOR STRATEGY

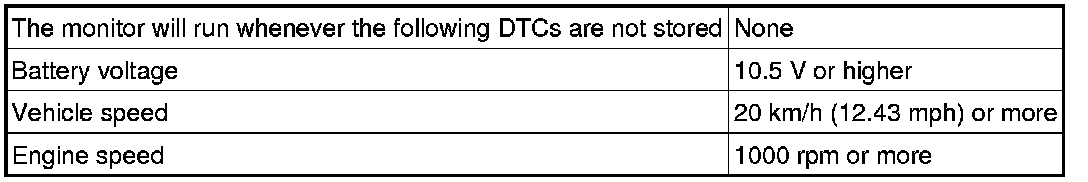

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs AA80E Automatic Transmission System.

PROCEDURE

1. READ VALUE USING DATA LIST (STARTER SIGNAL)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / ECT / Data List.

(e) Read the value displayed on the Techstream.

(f) Crank the engine.

(g) Read the value displayed on the Techstream.

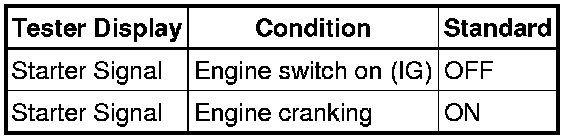

OK:





NG -- INSPECT PARK/NEUTRAL POSITION SWITCH
OK -- Continue to next step.

2. CHECK TCM (STA VOLTAGE)

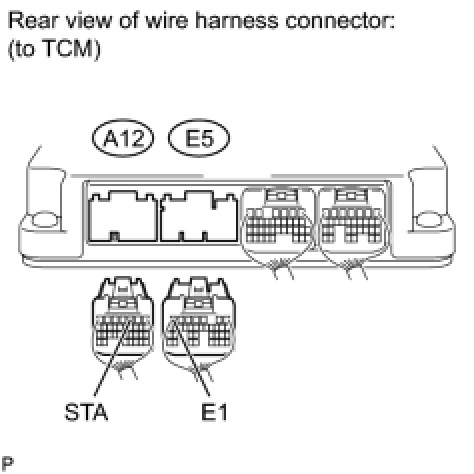

(a) Disconnect the A12 and E5 TCM connectors.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (TCM - ST RELAY)
OK -- Continue to next step.

3. REPLACE TCM

(a) Replace the TCM Removal.

NEXT -- PERFORM A/T CODE REGISTRATION Registration

4. INSPECT PARK/NEUTRAL POSITION SWITCH

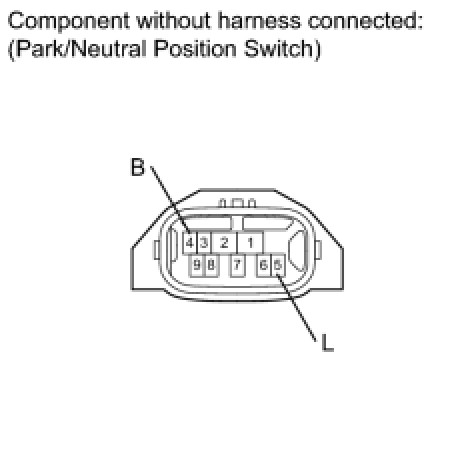

(a) Disconnect the E49 park/neutral position switch connector.





(b) Measure the resistance according to the value(s) in the table below.

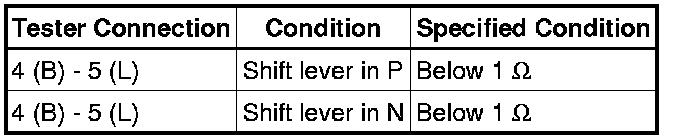

Standard Resistance:





NG -- REPLACE PARK/NEUTRAL POSITION SWITCH Removal

OK -- CHECK CRANKING HOLDING FUNCTION CIRCUIT Cranking Holding Function Circuit
