P060B

1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P060B: Internal Control Module A/D Processing Performance
P060B - Internal Control Module A/D Processing Performance

DESCRIPTION

This DTC is output when a communication error occurs in the ECM.

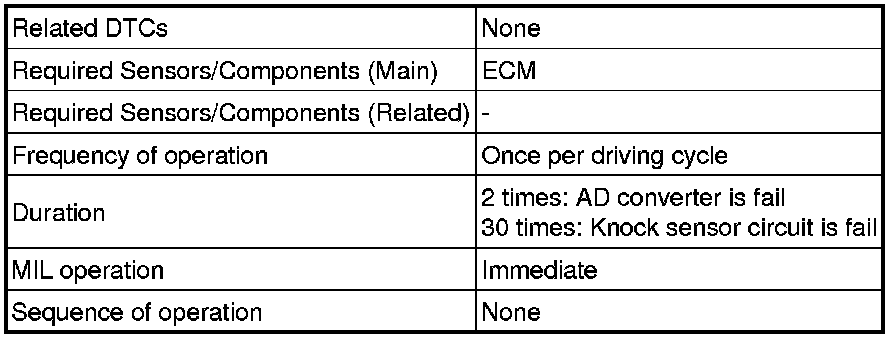

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

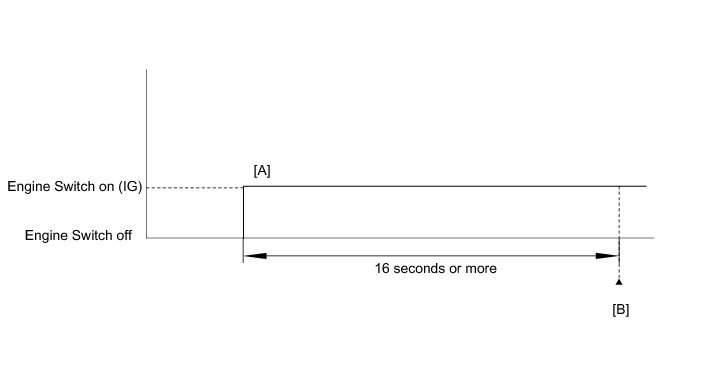

READINESS MONITOR DRIVE PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Wait 16 seconds or more.

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the DTCs [B].

HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.

9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

10. Input the DTC: P060B.

11. Check the DTC judgment result.





HINT
If the judgment result shows ABNORMAL, the system has a malfunction.

12. If the test result is INCOMPLETE or N/A and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Disconnect the cable from the negative (-) battery terminal and wait for 1 minute Service Precautions.

(c) Connect the cable to the negative (-) battery terminal Service Precautions.

(d) Connect the Techstream to the DLC3.

(e) Turn the engine switch on (IG) and and turn the Techstream on.

(f) Wait 16 seconds or more.

(g) Enter the following menus: Powertrain / Engine / Trouble Codes.

(h) Check for DTCs.

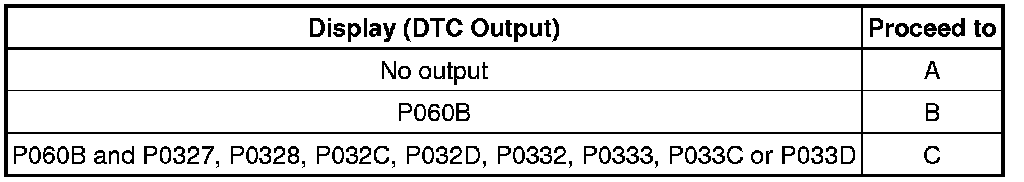

Result





B -- REPLACE ECM Removal

C -- GO TO DTC (P0327, P0328, P032C, P032D, P0332, P0333, P033C and P033D) P0327

A -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
