AA80E Automatic Transmission

AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0560: System Voltage
P0560 - System Voltage

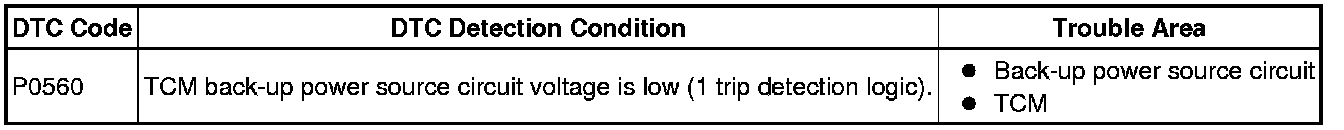

DESCRIPTION

The battery supplies electricity to the TCM even when the engine switch is off. This power allows the TCM to store data such as DTC history, freeze frame data and fuel trim values. If the battery voltage falls below a minimum level, the stored TCM data is cleared and the TCM determines that there is a malfunction in the power supply circuit. When the engine is next started, the TCM will illuminate the MIL and store the DTC.





HINT
If DTC P0560 is stored, the TCM does not store other DTCs.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

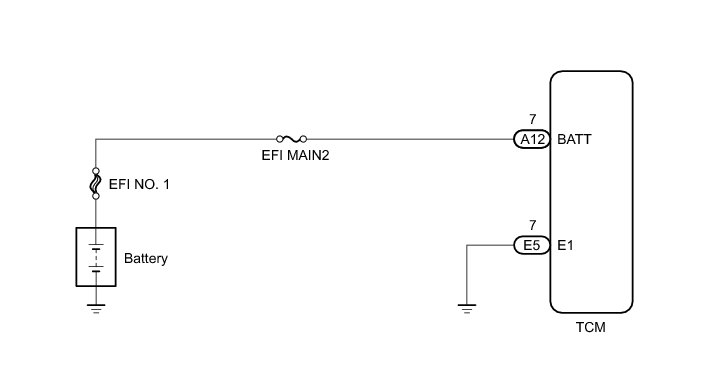

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs AA80E Automatic Transmission System.

PROCEDURE

1. CHECK TCM (POWER SOURCE, GROUND)

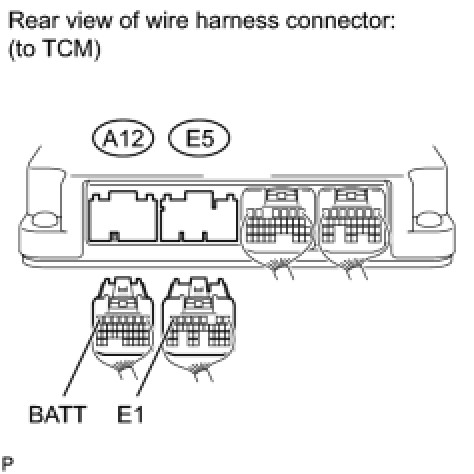

(a) Disconnect the A12 and E5 TCM connectors.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (TCM - BATTERY, BODY GROUND)
OK -- Continue to next step.

2. REPLACE TCM

(a) Replace the TCM Removal.

NEXT -- PERFORM A/T CODE REGISTRATION Registration
