1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P010F: Mass or Volume Air Flow Sensor
P010F - Mass or Volume Air Flow Sensor

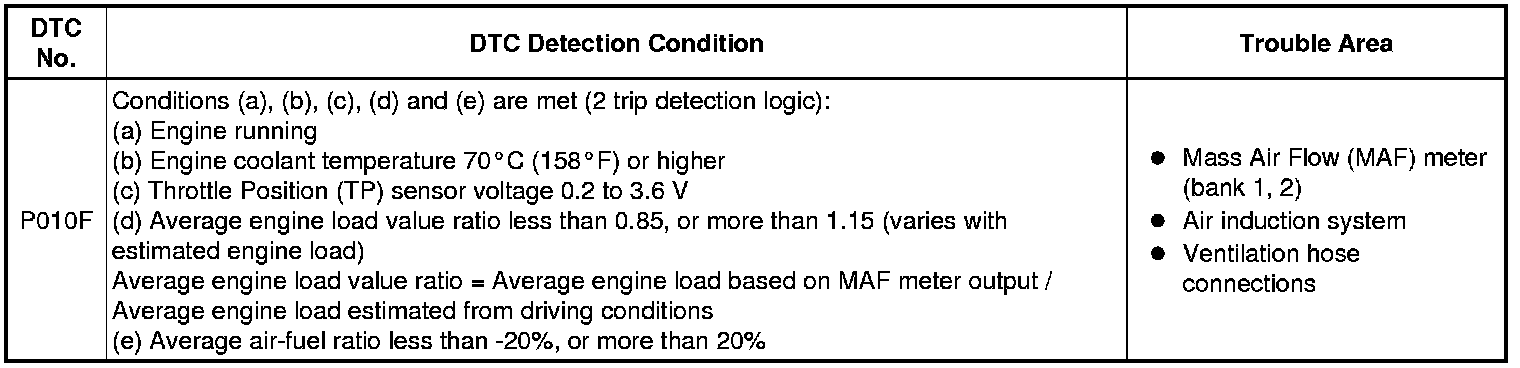

DESCRIPTION
Refer to DTC P0102 P0102.
MONITOR DESCRIPTION
The MAF meter is a sensor that measures the amount of air flowing through the throttle valve. The ECM uses this information to determine the fuel injection time and to provide an appropriate air-fuel ratio. Inside the MAF meter, there is a heated platinum wire which is exposed to the flow of intake air. By applying a specific electrical current to the wire, the ECM heats it to a specific temperature. The flow of incoming air cools both the wire and an internal thermistor, affecting their resistance. To maintain a constant current value, the ECM varies the voltage applied to the wire and internal thermistor. The voltage level is proportional to the airflow through the sensor, and the ECM uses it to calculate the intake air volume.
The ECM monitors the average engine load value ratio to check the MAF meter for malfunctions. The average engine load value ratio is obtained by comparing the average engine load calculated from the MAF meter output to the average engine load estimated from the driving conditions, such as the engine speed and the throttle opening angle. If the average engine load value ratio is below the threshold value, the ECM determines that the intake air volume is low, and if the average engine load value ratio is above the threshold value, the ECM determines that the intake air volume is high.
If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is set.

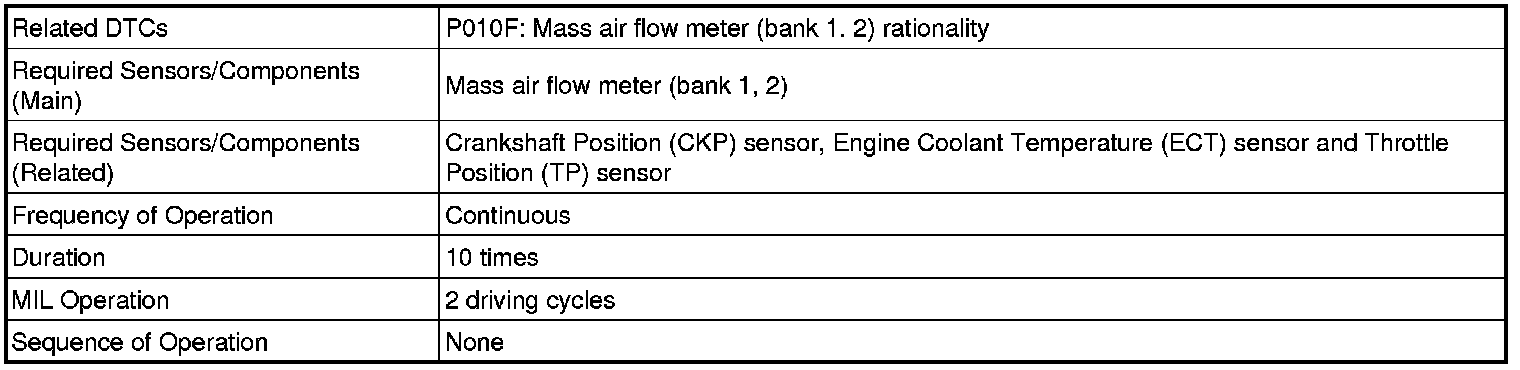

MONITOR STRATEGY

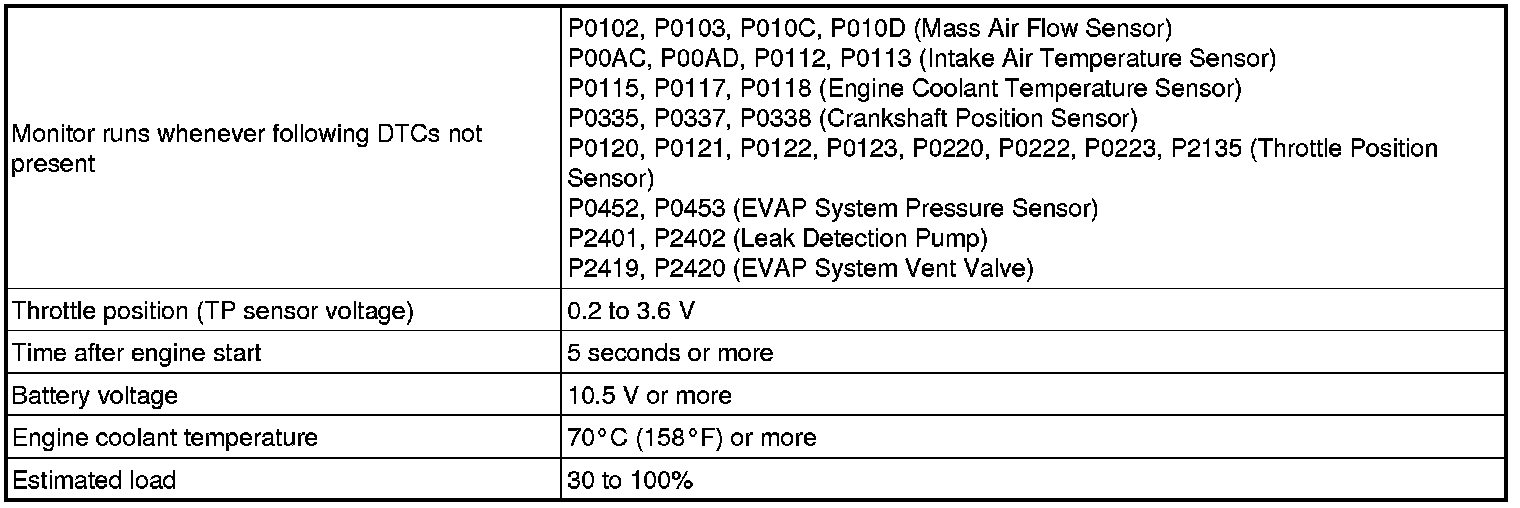

TYPICAL ENABLING CONDITIONS

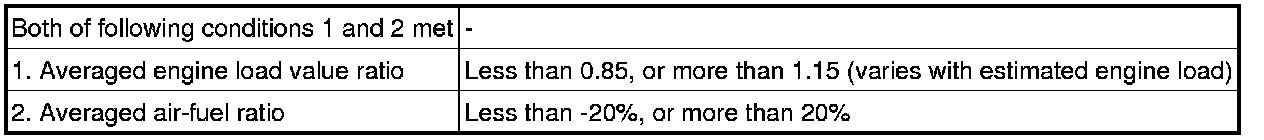

TYPICAL MALFUNCTION THRESHOLDS

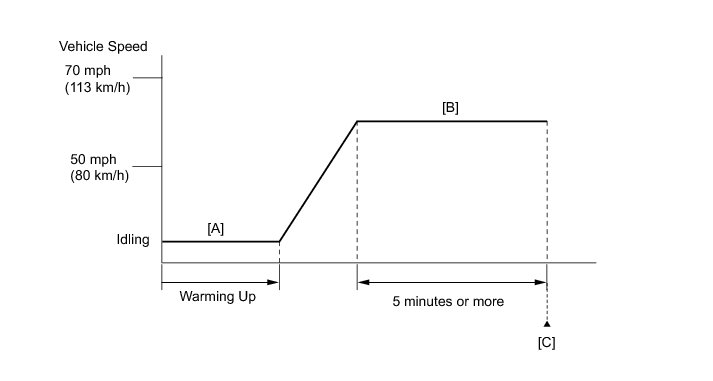

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.
5. Turn the engine switch off and wait for at least 30 seconds.
6. Turn the engine switch on (IG) and turn the Techstream on.
7. Start the engine and warm it up until the engine coolant temperature reaches 70°C (158°F) or higher [A].
8. Drive the vehicle at approximately 50 mph (80 km/h) to 70 mph (113 km/h) for 5 minutes or more [B].
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT
Drive while keeping the engine load as stable as possible.
9. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
10. Read the pending DTCs [C].
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
12. Input the DTC: P010F.
13. Check the DTC judgment result.
HINT
If the judgment result shows INCOMPLETE or N/A, perform steps [B] through [C] again.
14. If no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Refer to DTC P0102 P0102.
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P010F)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Trouble Codes.
(e) Read DTCs.

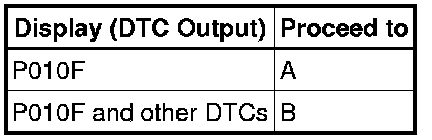

Result:
HINT
If any DTCs other than P010F are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART SFI System
A -- Continue to next step.
2. CHECK AIR INDUCTION SYSTEM
(a) Check the air induction system for vacuum leakage.
OK:
No leakage from air induction system.
NG -- REPAIR OR REPLACE AIR INDUCTION SYSTEM
OK -- Continue to next step.
3. CHECK VENTILATION HOSE CONNECTIONS
OK:
Ventilation hose is connected correctly and is not damaged.
NG -- REPAIR OR REPLACE VENTILATION HOSE Removal
OK -- REPLACE MASS AIR FLOW METER (BANK 1 AND BANK 2) Removal
