P0088
1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0088: Fuel Rail / System Pressure - Too High
P0088 - Fuel Rail / System Pressure - Too High

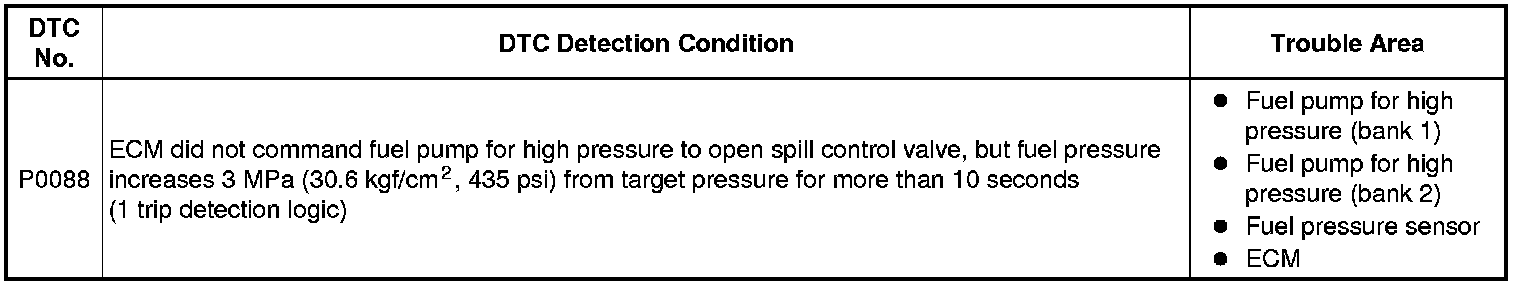

DESCRIPTION
Refer to DTC P0087 P0087.
MONITOR DESCRIPTION
If the fuel pressure does not decrease even after the ECM commands the high-pressure fuel pump to open the spill control valve, a DTC is output.
If there is minimal difference between the fuel pressure before and after the fuel relief valve operates, a DTC is output.

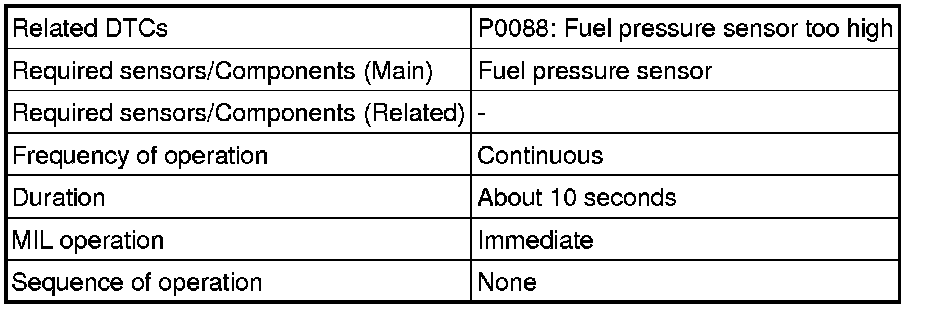

MONITOR STRATEGY

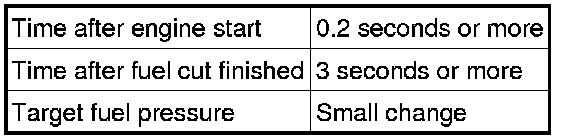

TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Record the Freeze Frame Data.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.
5. Turn the engine switch off and wait for at least 30 seconds.
6. Turn the engine switch on (IG) and turn the Techstream on.
7. Based on engine rpm, engine load and other freeze frame data stored in the ECM, reproduce the conditions present when the DTC was stored.
8. Enter the following menus: Powertrain / Engine / Trouble Codes.
9. Read the DTCs.
HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.
10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
11. Input the DTC: P0088.
12. Check the DTC judgment result.
HINT
If the judgment result shows ABNORMAL, the system has a malfunction.
13. If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P0088)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine / Trouble Codes.
(d) Read the DTCs.

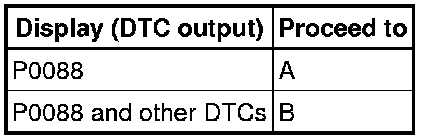

Result:
B -- GO TO DTC CHART SFI System
A -- Continue to next step.
2. READ VALUE USING TECHSTREAM (FREEZE FRAME DATA)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine / Trouble Codes.
(d) Read the freeze frame data.

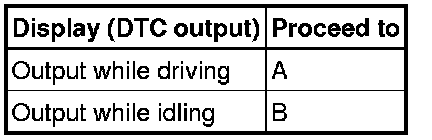

Result:
B -- REPLACE FUEL PUMP (FOR HIGH PRESSURE [BANK 2])
A -- Continue to next step.
3. PERFORM ACTIVE TEST USING TECHSTREAM (CHECK FUEL PUMP FOR HIGH PRESSURE [BANK1])
(a) Connect the Techstream to the DLC3.
(b) Start the engine and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine / Active Test / Control the Target Fuel Press / All Data / Fuel Press.
(d) Check that the fuel pressure fluctuates when the target fuel pressure changes.
HINT
The Active Test operation lowers the target fuel pressure by 12.5% or increase the target fuel pressure 25%.
OK:
Fuel pressure fluctuates.
NG -- REPLACE FUEL PUMP (FOR HIGH PRESSURE [BANK 2])
OK -- Continue to next step.
4. REPLACE FUEL PUMP (FOR HIGH PRESSURE [BANK 1])
(a) Replace the fuel pump (for high pressure) Removal.
NEXT -- Continue to next step.
5. CHECK IF DTC OUTPUT REOCCURS (SEE IF DTC P0088 IS OUTPUT AGAIN)
(a) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(b) Connect the Techstream to the DLC3.
(c) Start the engine and turn the Techstream on.
(d) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
(e) Enter the following menus: Powertrain / Engine / Trouble Codes.
(f) Read the DTCs.

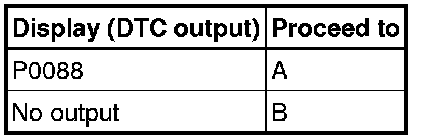

Result:
B -- END
A -- REPLACE ECM Removal
6. REPLACE FUEL PUMP (FOR HIGH PRESSURE [BANK 2])
(a) Replace the fuel pump (for high pressure) Removal.
NEXT -- Continue to next step.
7. CHECK IF DTC OUTPUT REOCCURS (SEE IF DTC P0088 IS OUTPUT AGAIN)
(a) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(b) Connect the Techstream to the DLC3.
(c) Start the engine and turn the Techstream on.
(d) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
(e) Enter the following menus: Powertrain / Engine / Trouble Codes.
(f) Read the DTCs.
Result:
B -- END
A -- REPLACE ECM Removal
