Air Mix Damper Control Servo Motor Circuit (Driver Side) - Air Conditioning System

AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1446/46: Air Mix Damper Control Servo Motor Circuit (Driver Side)

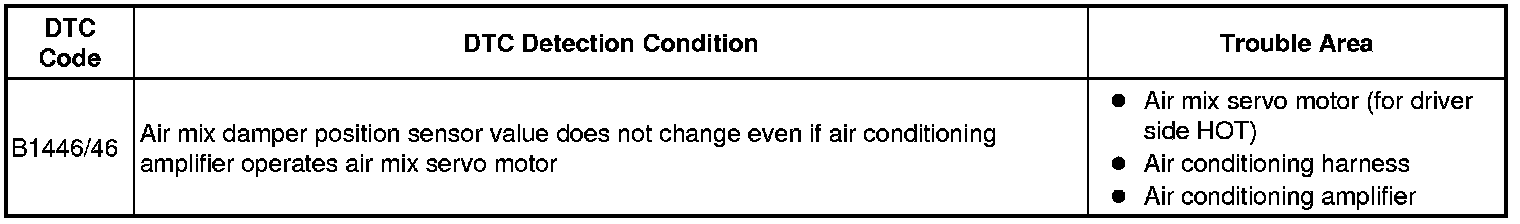

B1446/46 - Air Mix Damper Control Servo Motor Circuit (Driver Side)

DESCRIPTION

The air mix damper servo (for driver side HOT) sends pulse signals to inform the air conditioning amplifier of the damper position. The air conditioning amplifier activates the motor (normal, reverse) based on the signals to move the air mix damper (for driver side HOT) to any position. As a result the amount of air that has passed through the evaporator and is now passing through the heater core is adjusted, and the temperature of the air blowing toward the driver side is controlled.

HINT
Confirm that no mechanical problem is present because this diagnostic code can be output when either a damper link or damper is mechanically locked.

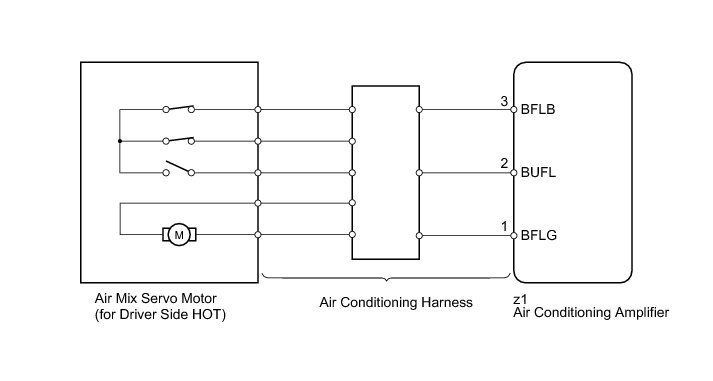

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (AIR MIX SERVO MOTOR TARGET PULSE (for Driver Side HOT))

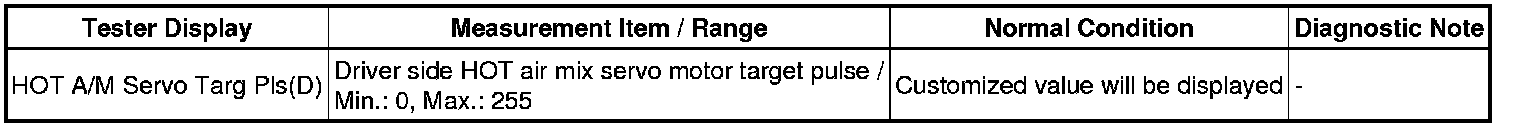

(a) Use the Data List to check if the servo motor is functioning properly.

Air Conditioner





OK:

The display is as specified in the normal condition.

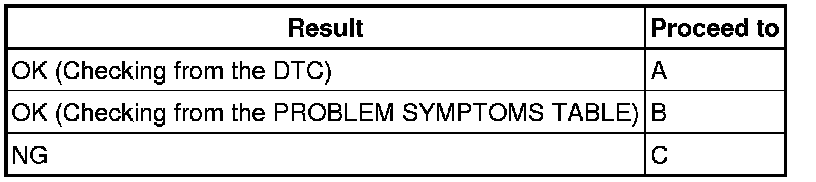

Result





B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

C -- REPLACE AIR CONDITIONING AMPLIFIER Removal
A -- Continue to next step.

2. REPLACE AIR MIX SERVO MOTOR (for Driver Side HOT)

HINT
Since the servo motor cannot be inspected while it is removed from the vehicle, replace the servo motor with a normal one and check that the condition returns to normal Disassembly.

OK:

Same problem does not occur.

NG -- REPLACE AIR CONDITIONING HARNESS Disassembly

OK -- END
