Invalid Data Received from Deceleration Sensor - Electronically Controlled Brake System

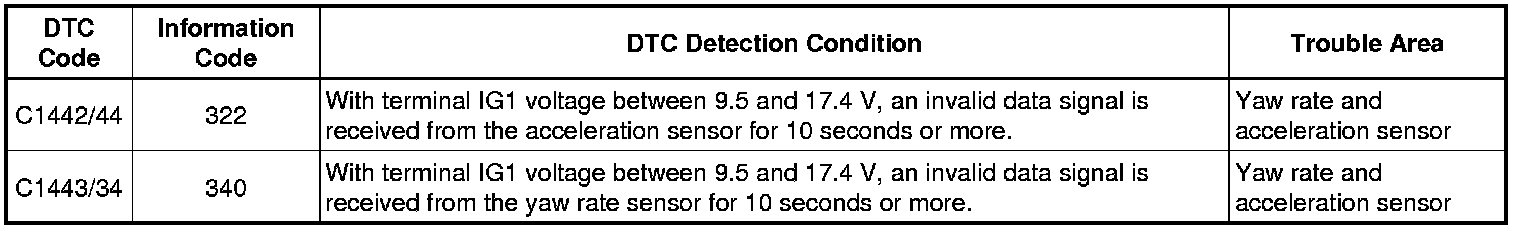

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1442/44, C1443/34: Invalid Data Received from Deceleration Sensor
C1443/34 - Invalid Data Received from Yaw Rate Sensor

DESCRIPTION

The skid control ECU receives signals from the yaw rate and acceleration sensor via the CAN communication system.

The yaw rate sensor has a built-in acceleration sensor and detects the vehicle condition.





INSPECTION PROCEDURE

NOTICE:
When replacing the yaw rate and acceleration sensor, perform zero point calibration Calibration.

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Start and idle the engine for 60 seconds, and then stop the engine.

(c) Check if the same DTC is output Reading and Clearing Diagnostic Trouble Codes.

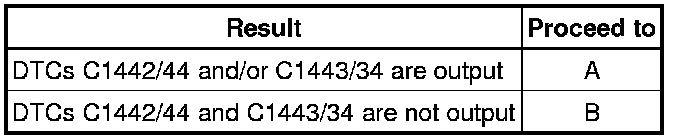

Result





B -- CHECK FOR INTERMITTENT PROBLEMS How To Proceed With Troubleshooting

A -- REPLACE YAW RATE AND ACCELERATION SENSOR Removal
