BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1378/44: Capacitor Communication Malfunction
C1378/44 - Capacitor Communication Malfunction

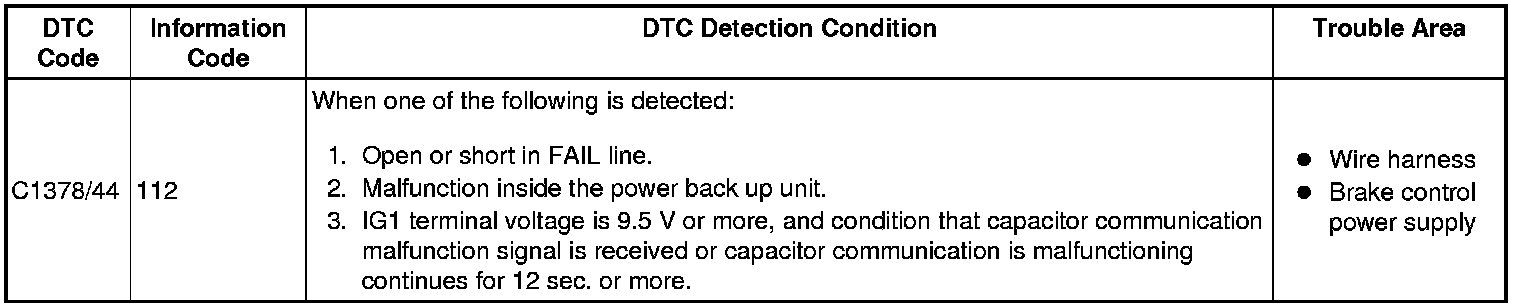

DESCRIPTION

Refer to DTC C1377/43 C1377.





WIRING DIAGRAM

Refer to DTC C1377/43 C1377.

INSPECTION PROCEDURE

NOTICE:
When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration Initialization.

PROCEDURE

1. INSPECT BRAKE CONTROL POWER SUPPLY

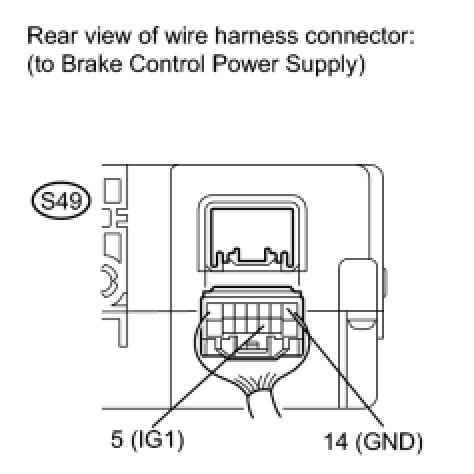

(a) Disconnect the S49 power supply connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (IG1, GND CIRCUIT)
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - BRAKE CONTROL POWER SUPPLY)

(a) Disconnect the A19 and A21 ECU connectors.

(b) Disconnect the S49 power supply connector.

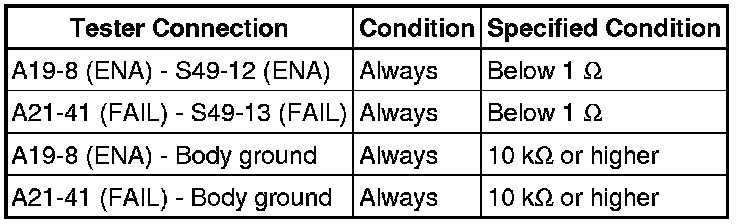

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. RECONFIRM DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Turn the engine switch on (IG).

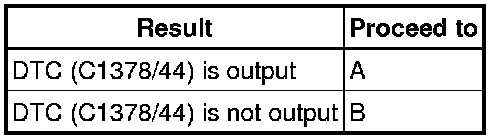

(c) Check if the same DTC is recorded Reading and Clearing Diagnostic Trouble Codes.

HINT
Reinstall the sensor, connectors, etc. and restore the vehicle to its prior condition before rechecking for DTCs.

Result





B -- END
A -- Continue to next step.

4. CHECK FREEZE FRAME DATA

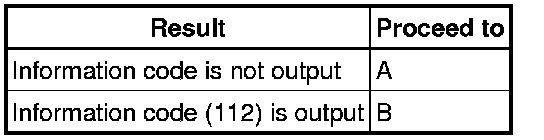

(a) Check the information code from the "FREEZE FRAME DATA" memorized when the DTC (C1378/44) is stored Freeze Frame Data.

Result





B -- REPLACE BRAKE CONTROL POWER SUPPLY Removal

A -- REPLACE SKID CONTROL ECU Removal
