VGRS Control System Malfunction - Electronically Controlled Brake System

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C1289/41: VGRS Control System Malfunction
C1289/41 - VGRS Control System Malfunction

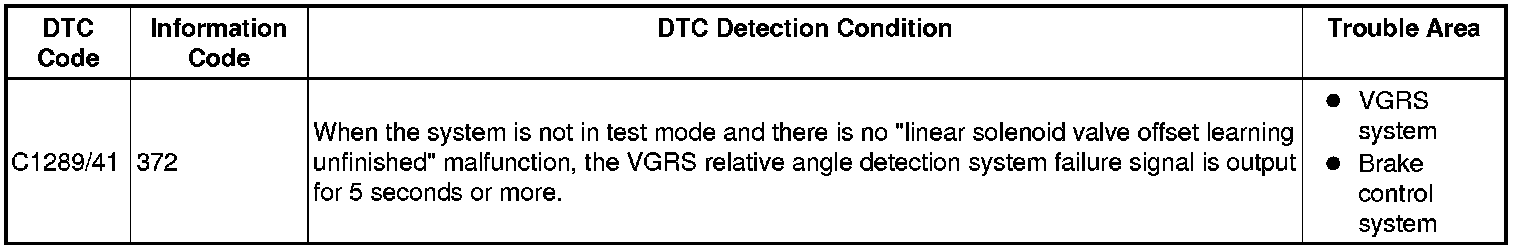

DESCRIPTION

The skid control ECU communicates with the steering control ECU via CAN communication.

If a malfunction in the VGRS system is detected, cooperative control of the steering is prohibited by the fail-safe function.





INSPECTION PROCEDURE

NOTICE:
When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration Initialization.

PROCEDURE

1. CHECK DTC FOR VGRS SYSTEM

(a) Clear the DTC Power Tilt and Power Telescopic Steering Column System.

(b) Check for the DTC Power Tilt and Power Telescopic Steering Column System.

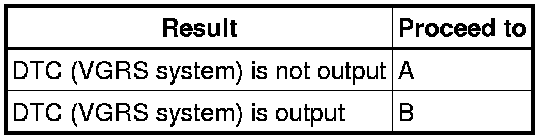

Result





B -- GO TO VGRS SYSTEM How To Proceed With Troubleshooting

A -- END
