Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Rear Power Seat Control System

Rear Power Seat Control System

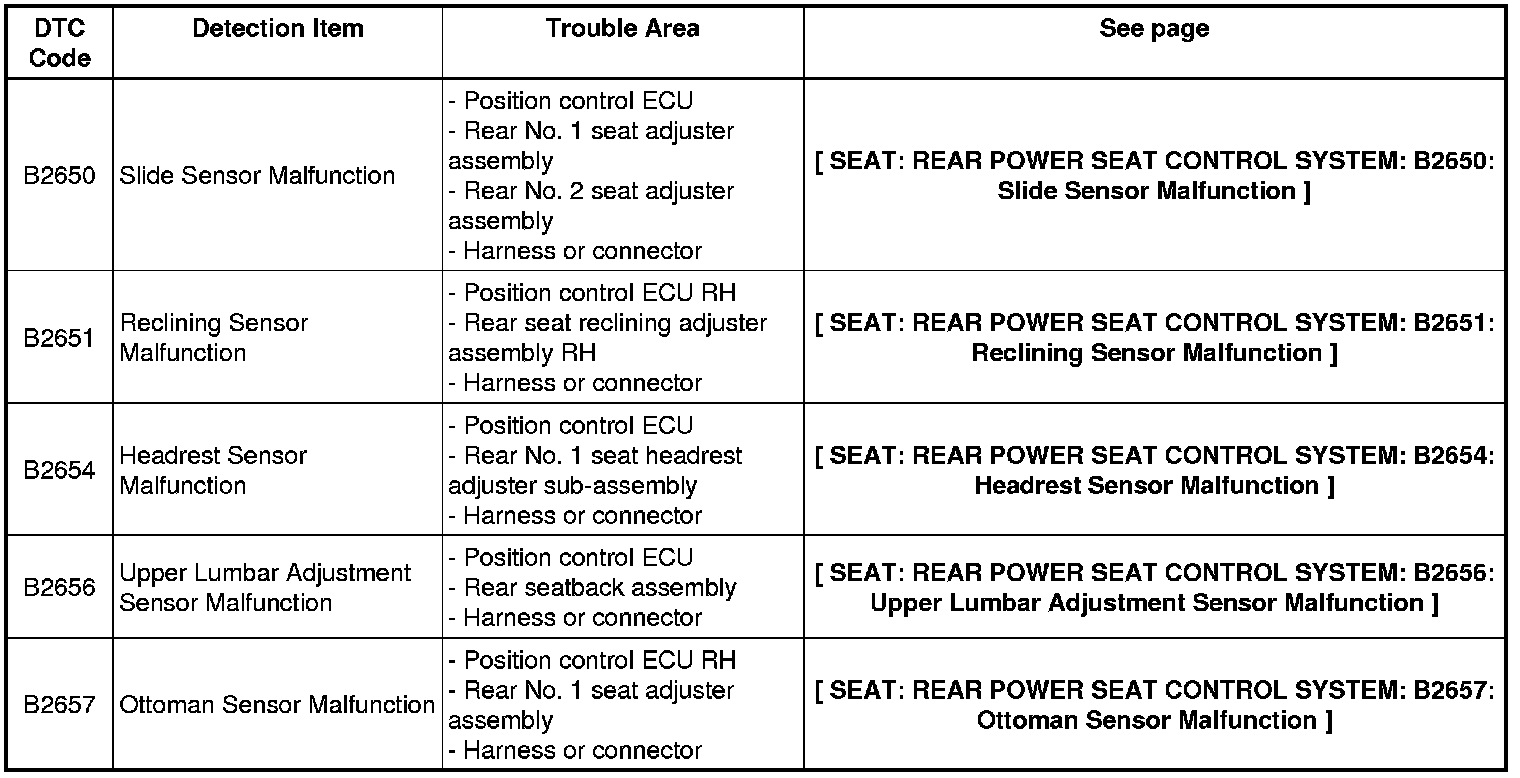

SEAT: REAR POWER SEAT CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Rear power seat control system
