Rear Door Sunshade System

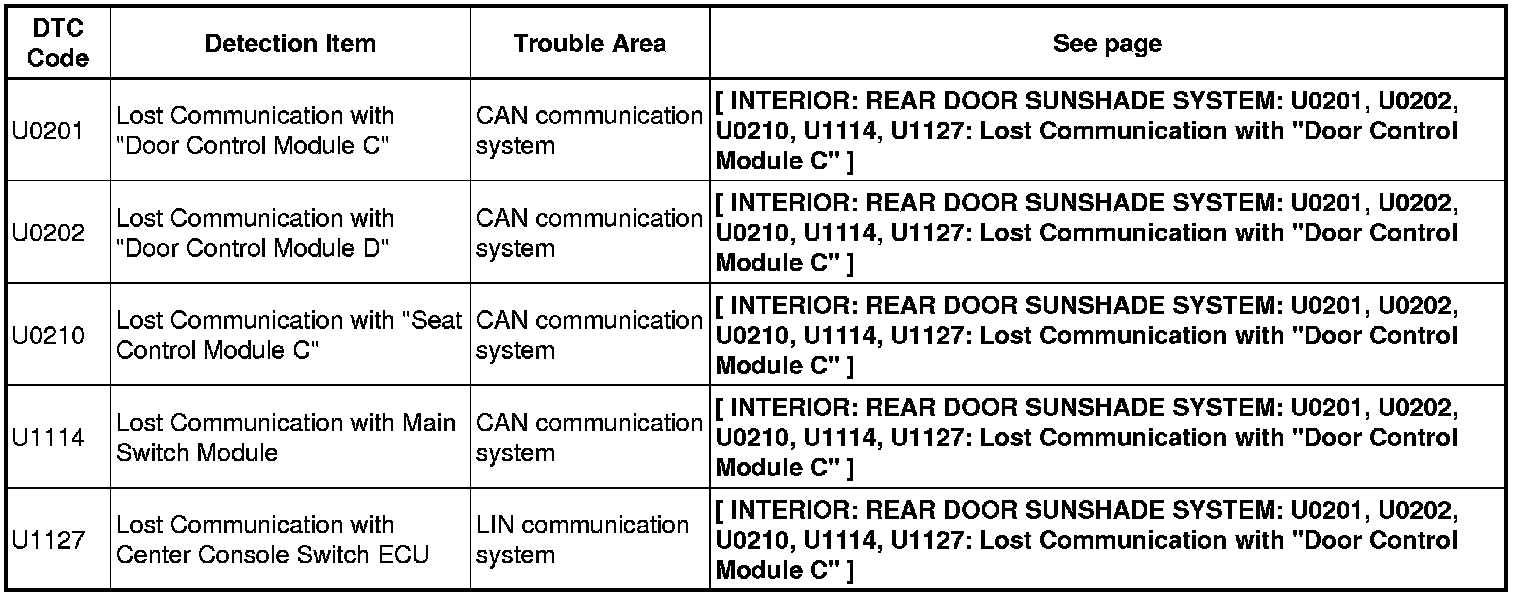

INTERIOR: REAR DOOR SUNSHADE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Rear Door Sunshade System
