Pre-Collision System (w/ Driver Monitor Camera)

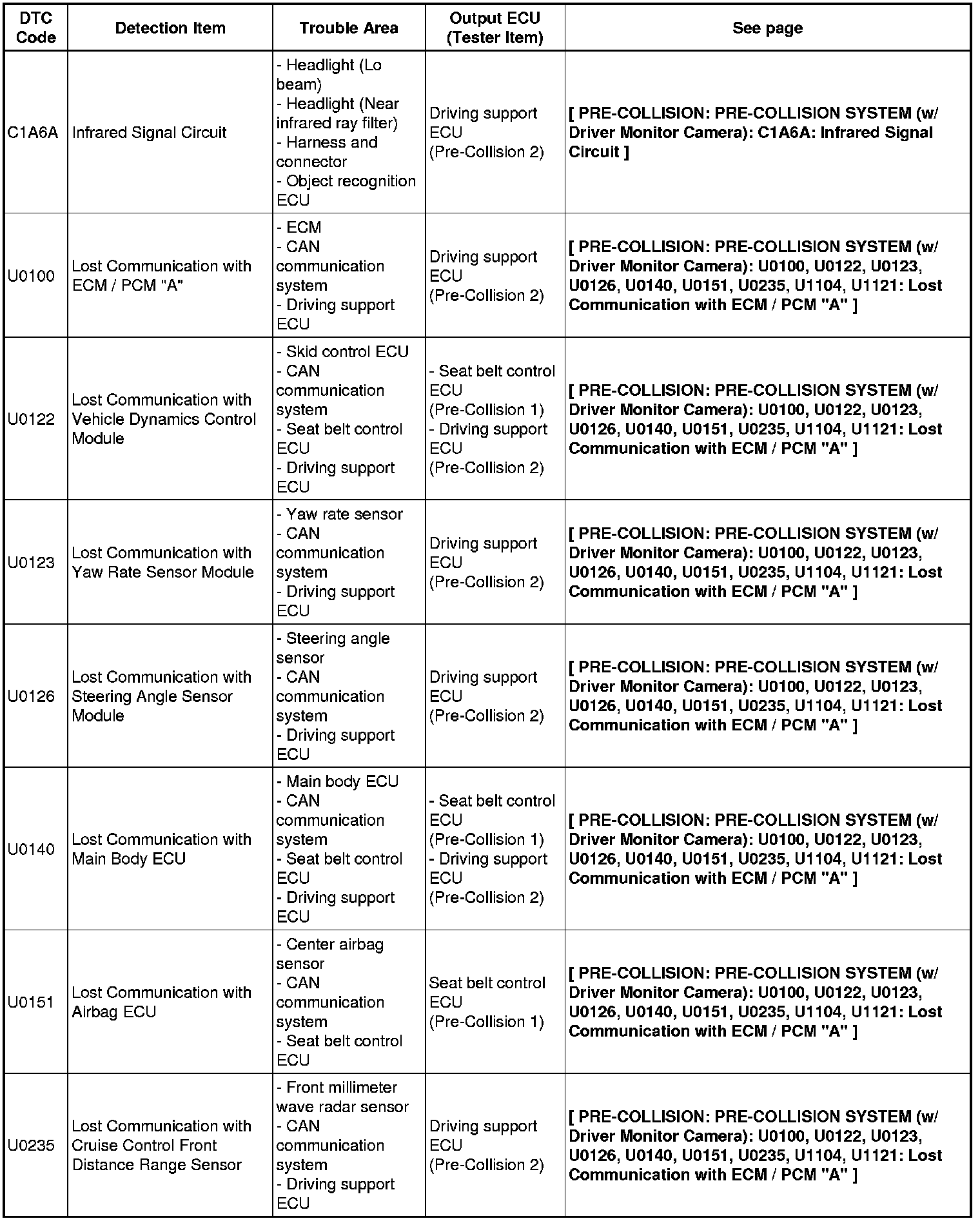

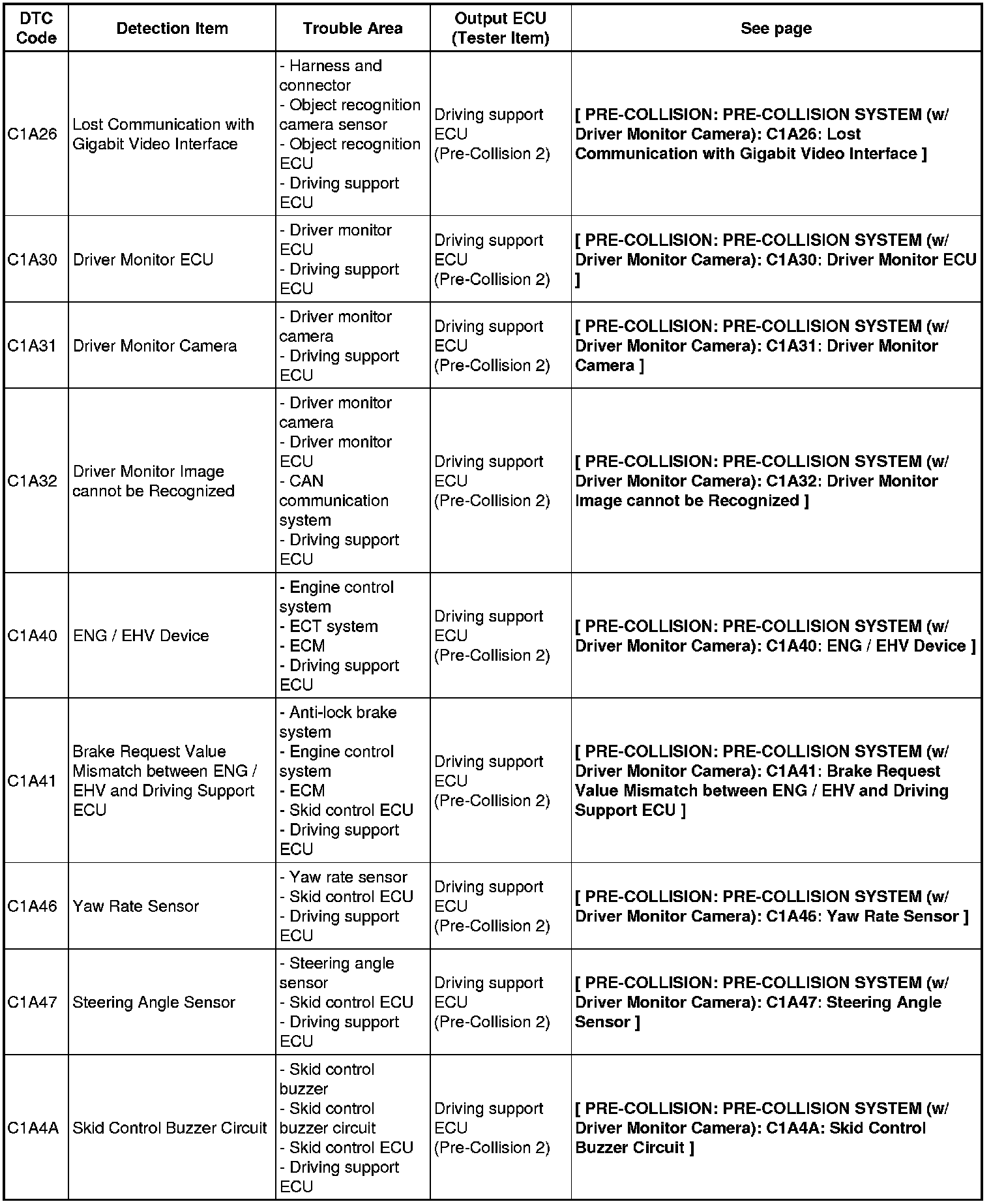

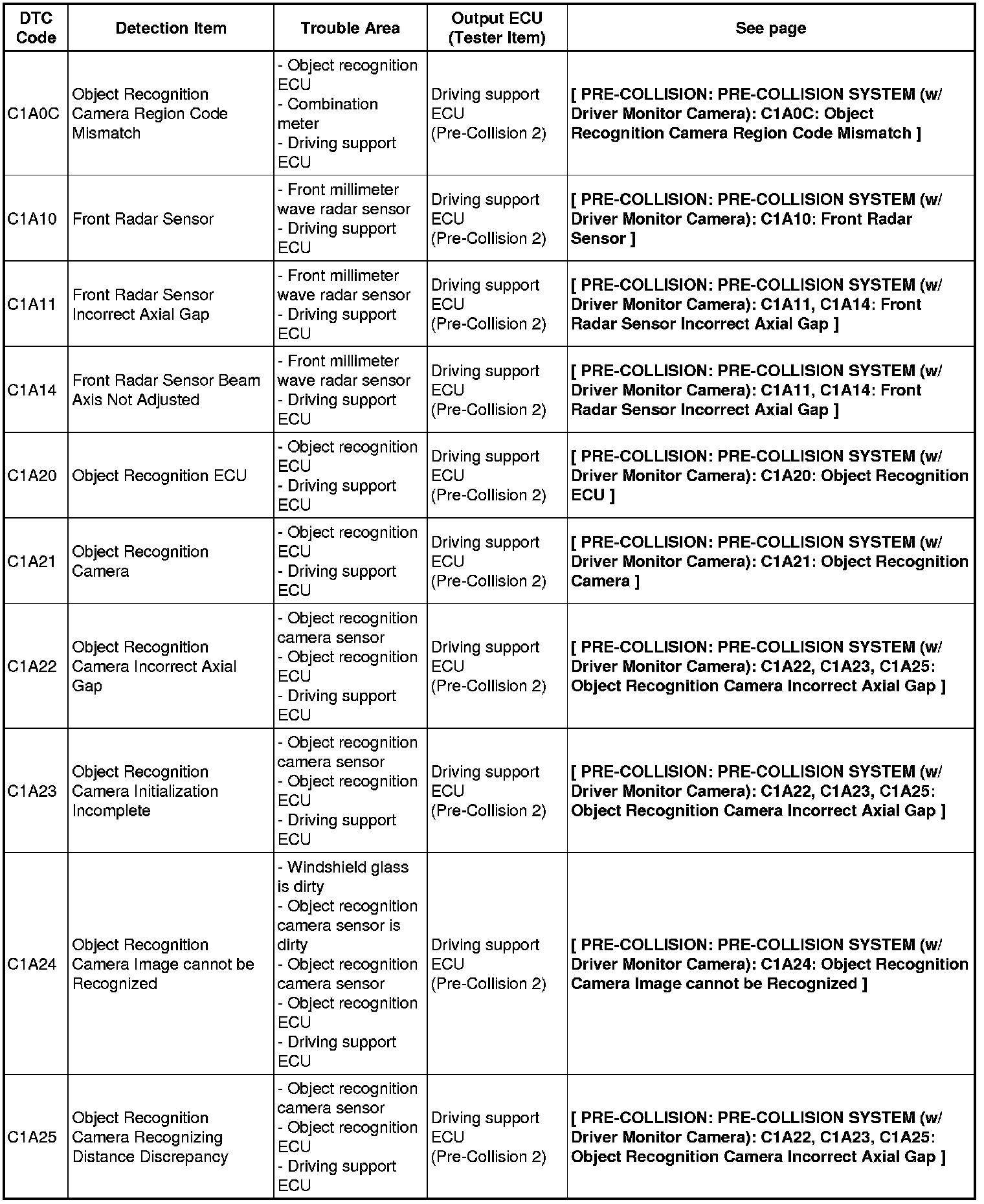

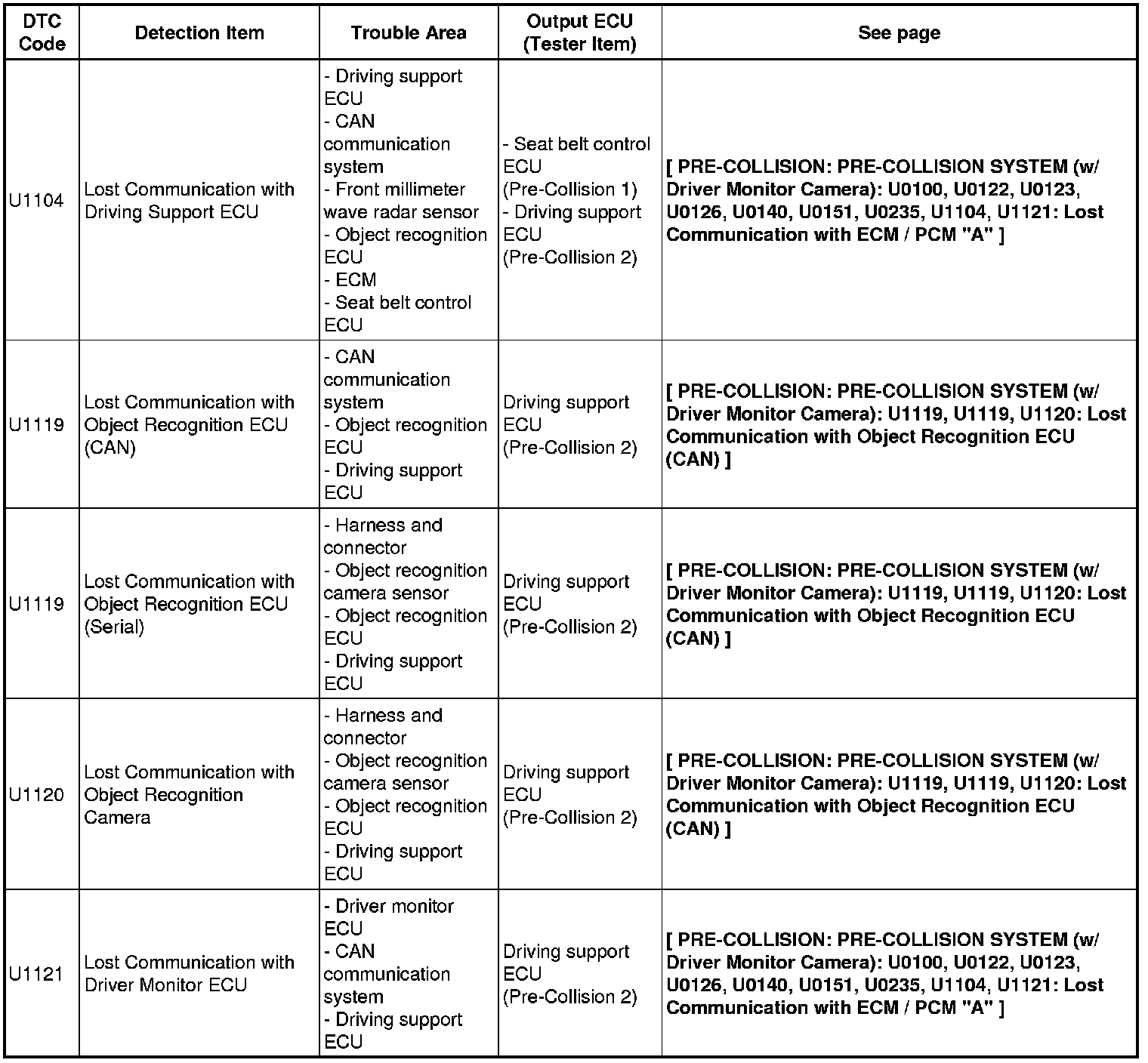

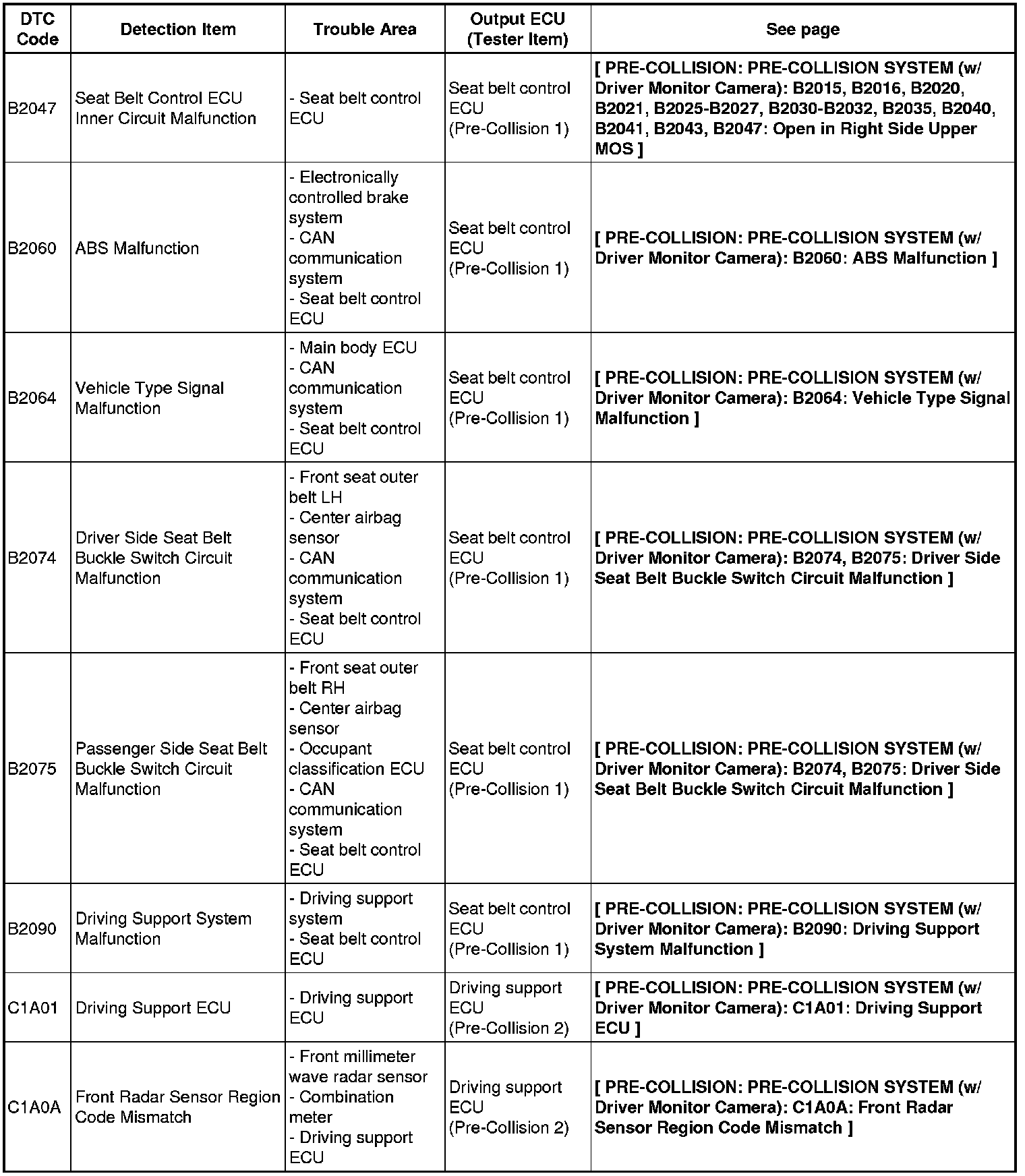

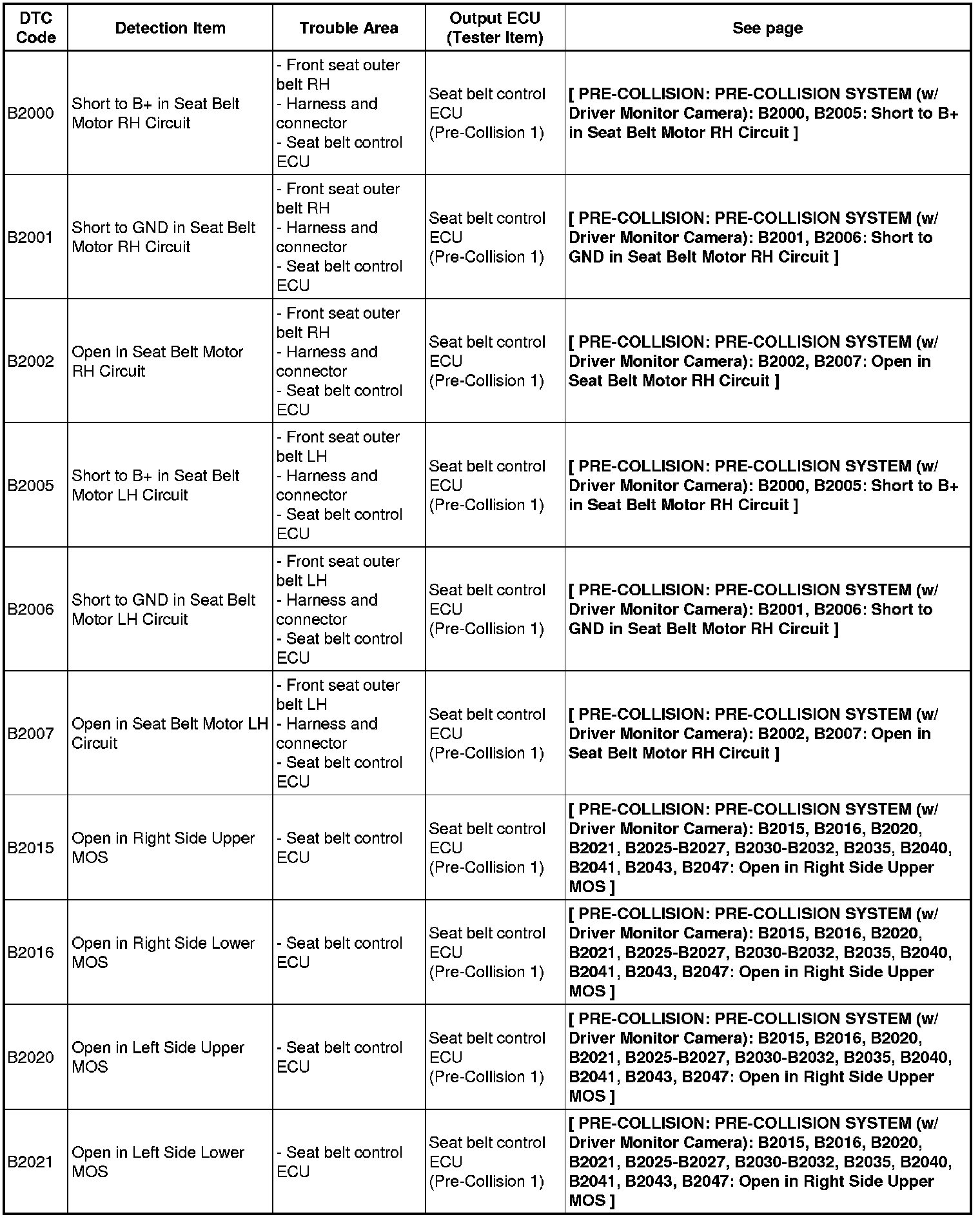

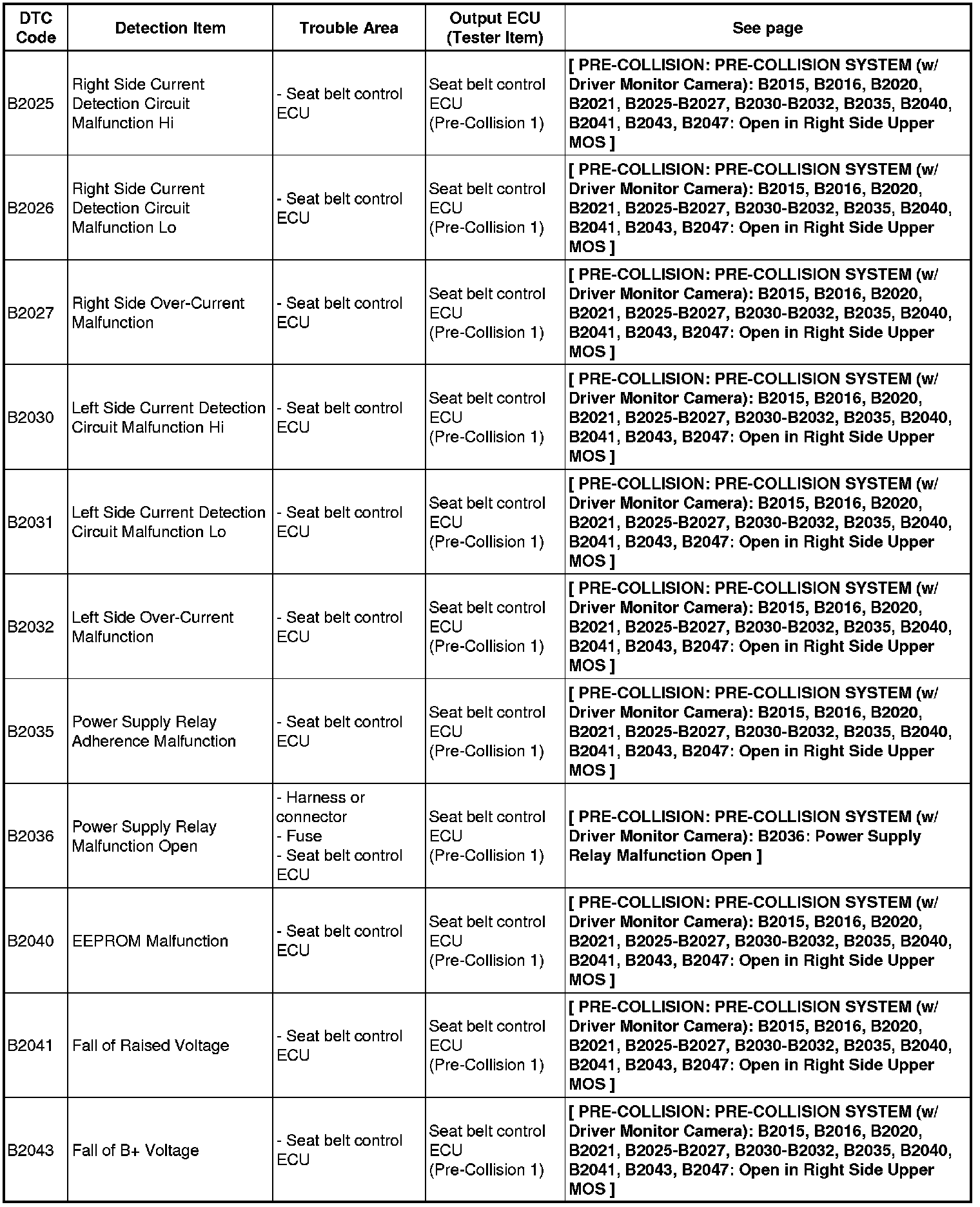

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): DIAGNOSTIC TROUBLE CODE CHART
HINT
If the normal codes for the pre-collision system and CAN communication system are output but the following problem symptoms are present, perform the malfunction diagnosis by following the "Suspected Area" procedures below.
Pre-collision system
