Power Steering System





POWER STEERING: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

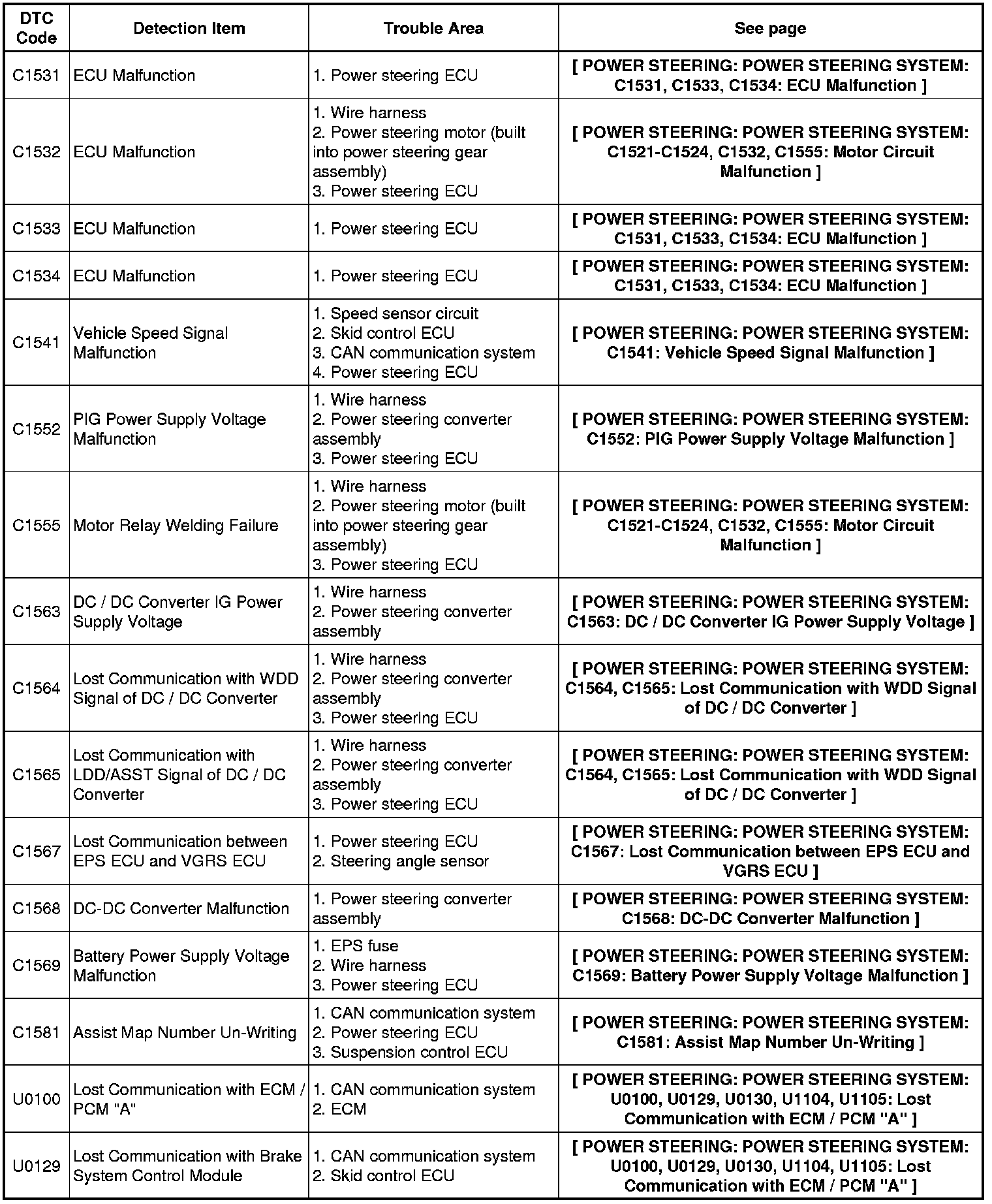

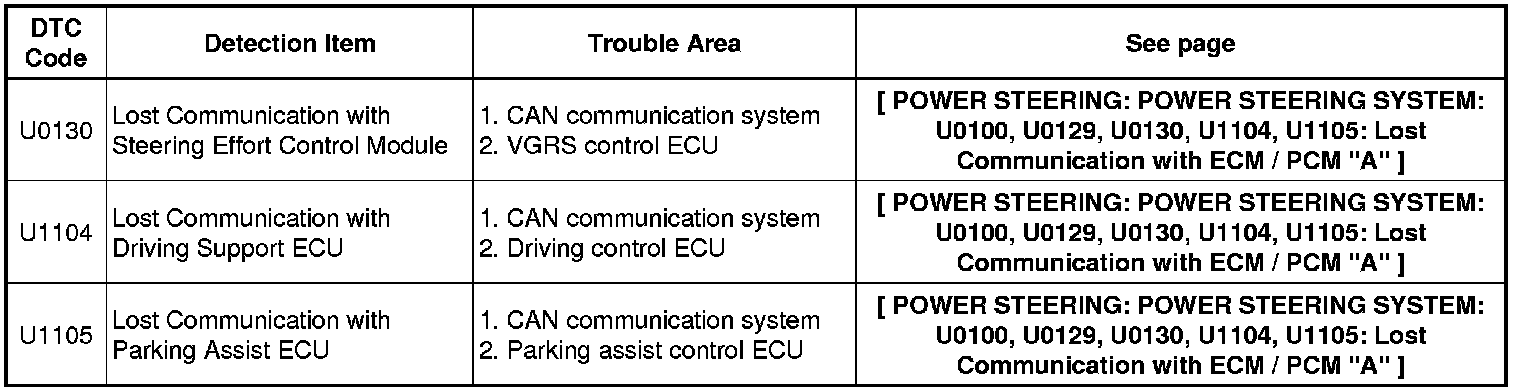

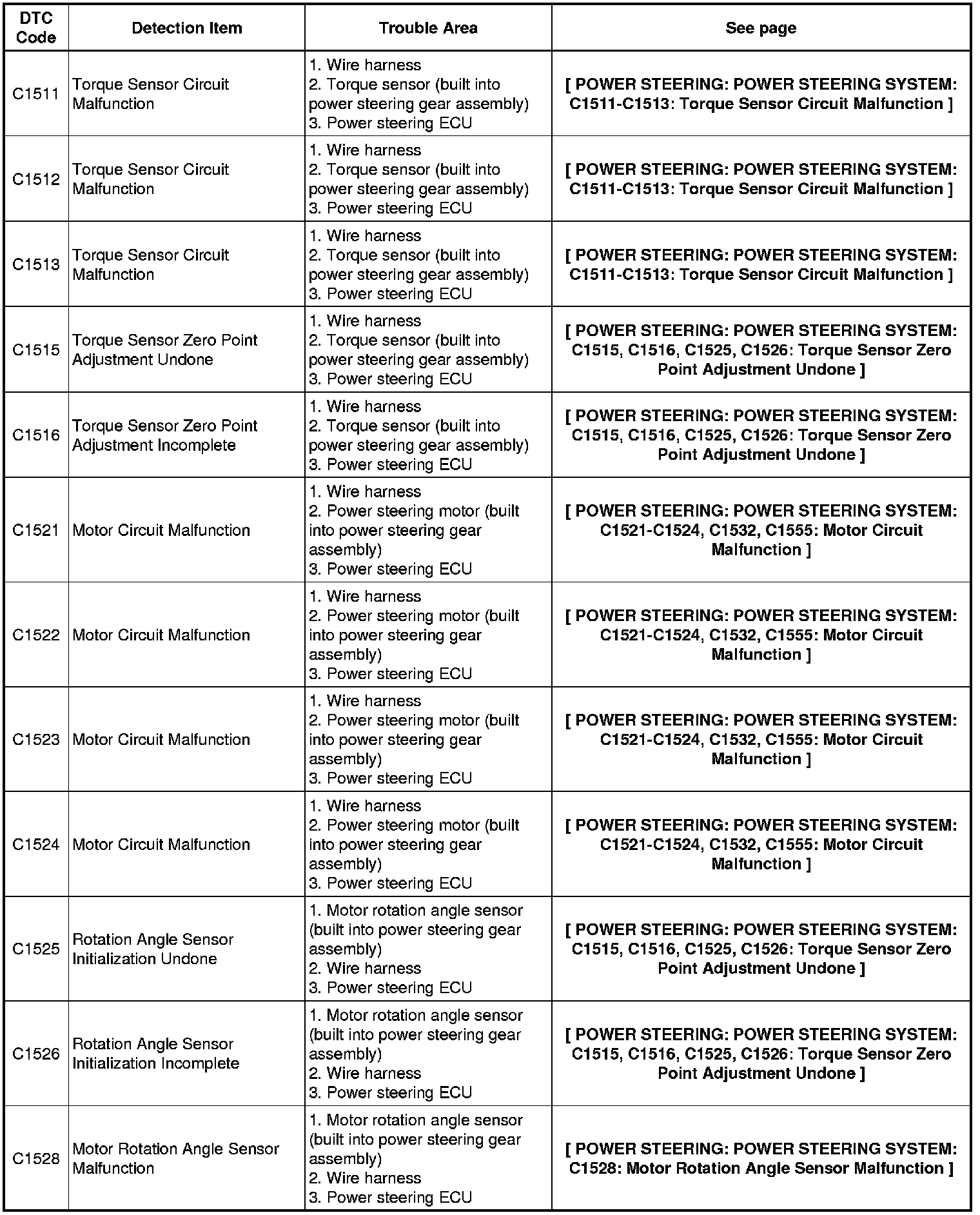

Electronic power steering system diagnostic trouble code chart
