Audio and Visual System (w/ Multi-Display)

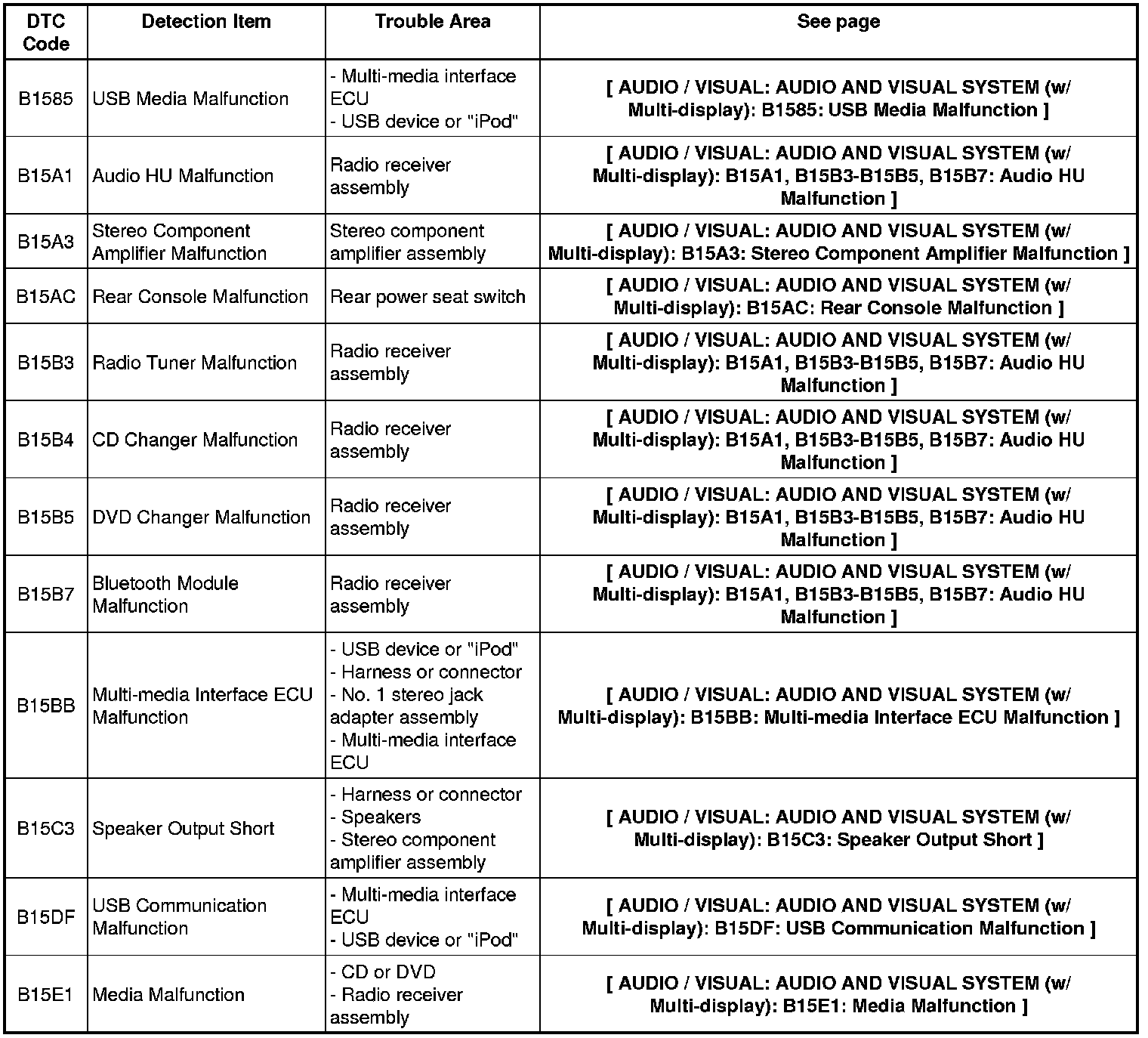

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Multi-display): DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is output during the DTC check, inspect the trouble area.

Audio and visual system
