Audio / Visual System (Electro Multi Vision System)

AUDIO / VISUAL: ELECTRO MULTI VISION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

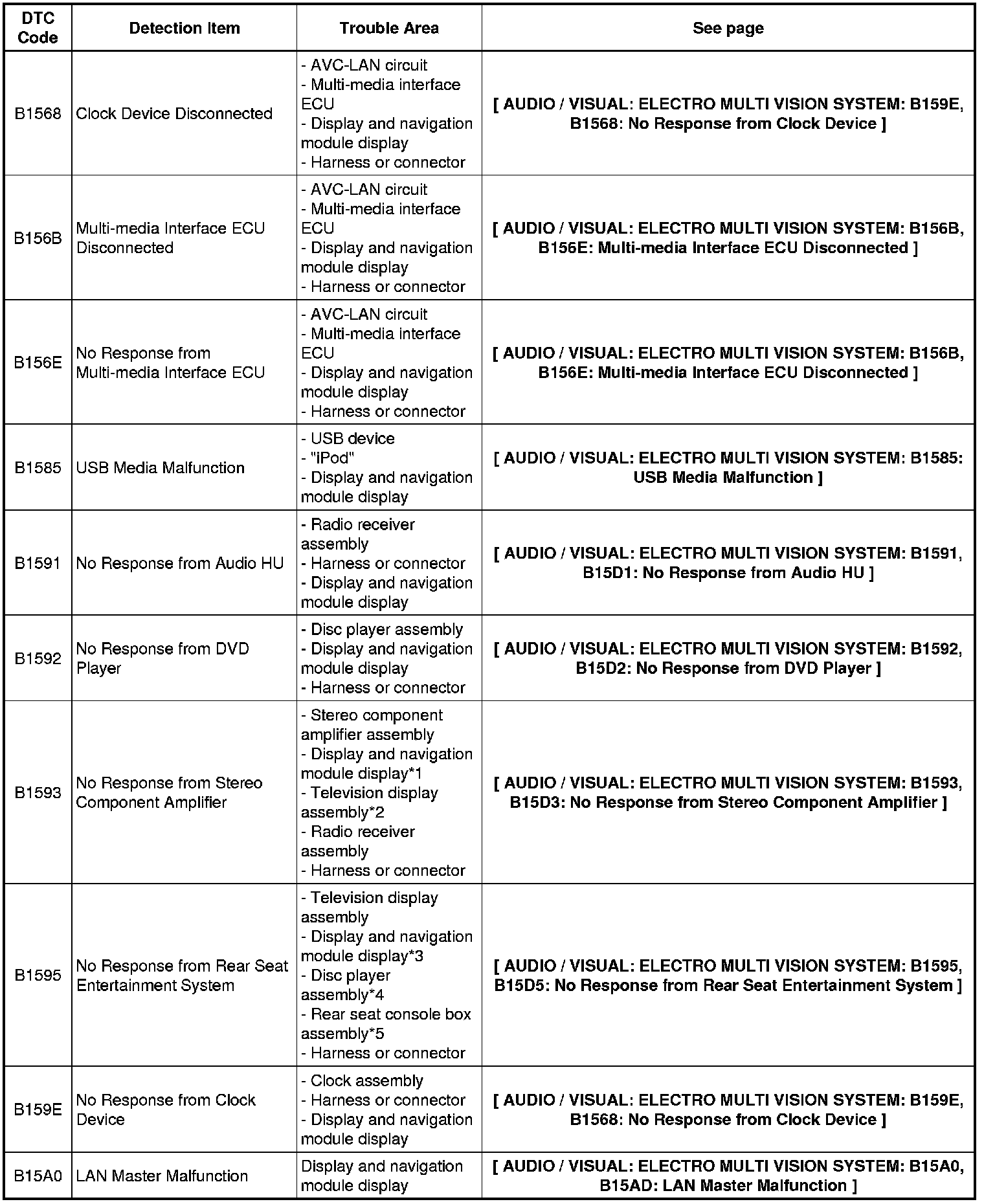

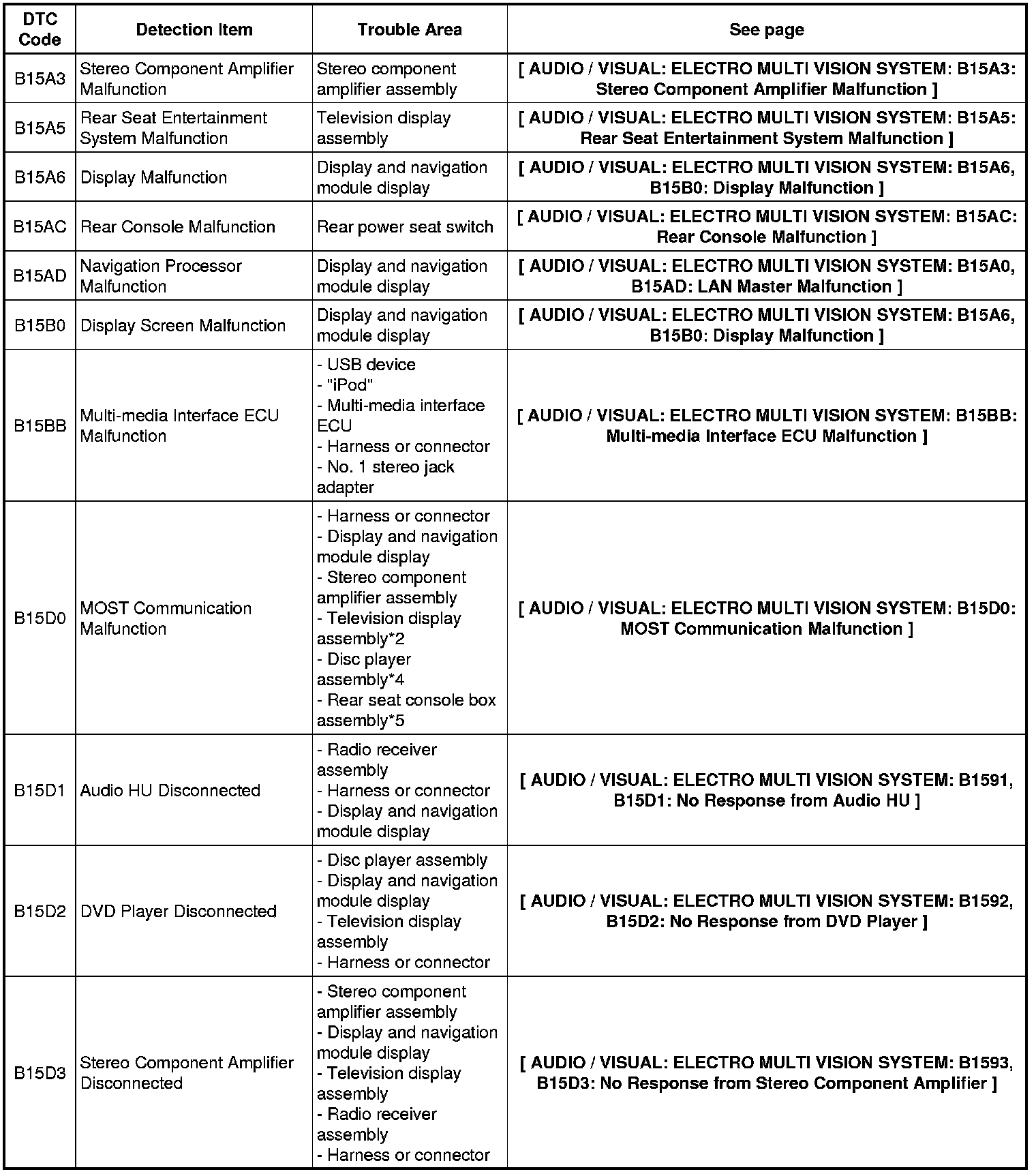

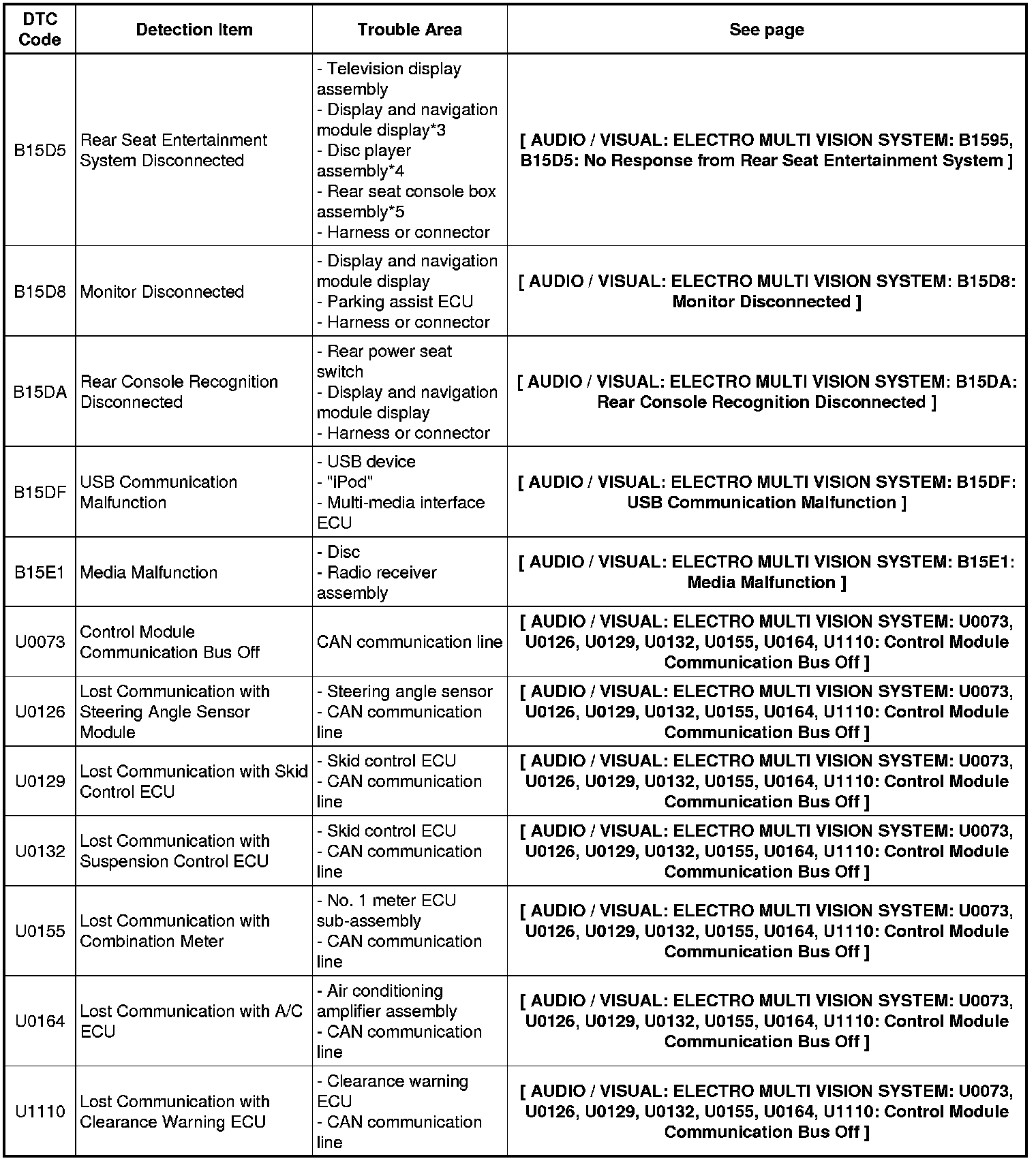

Electro Multi Vision System













* *1: w/o Rear Seat Entertainment System

* *2: w/ Rear Seat Entertainment System

* *3: w/o Disc Player Assembly

* *4: w/ Disc Player Assembly

* *5: for 4-Passenger with Ottoman
