Air Conditioning

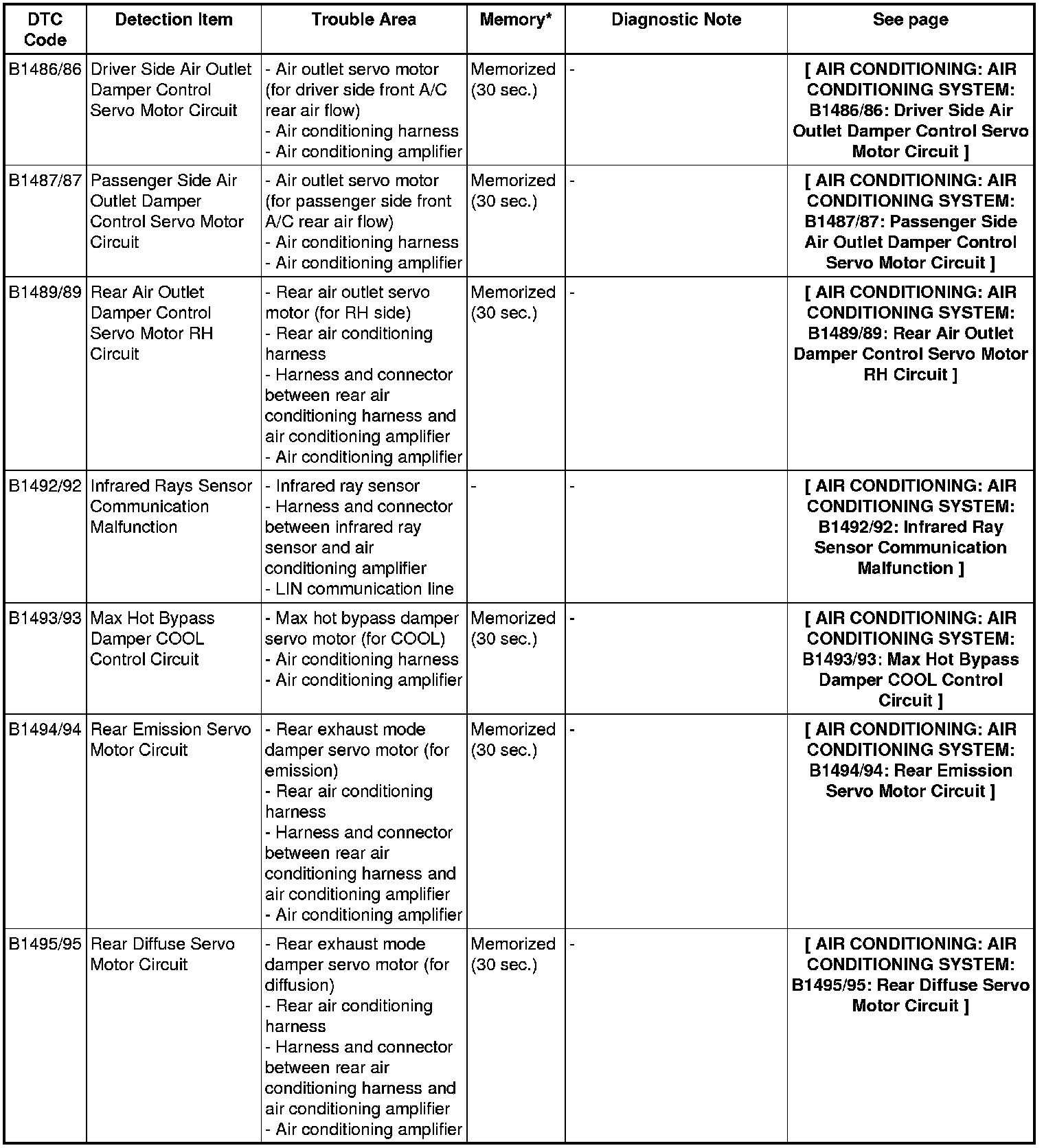

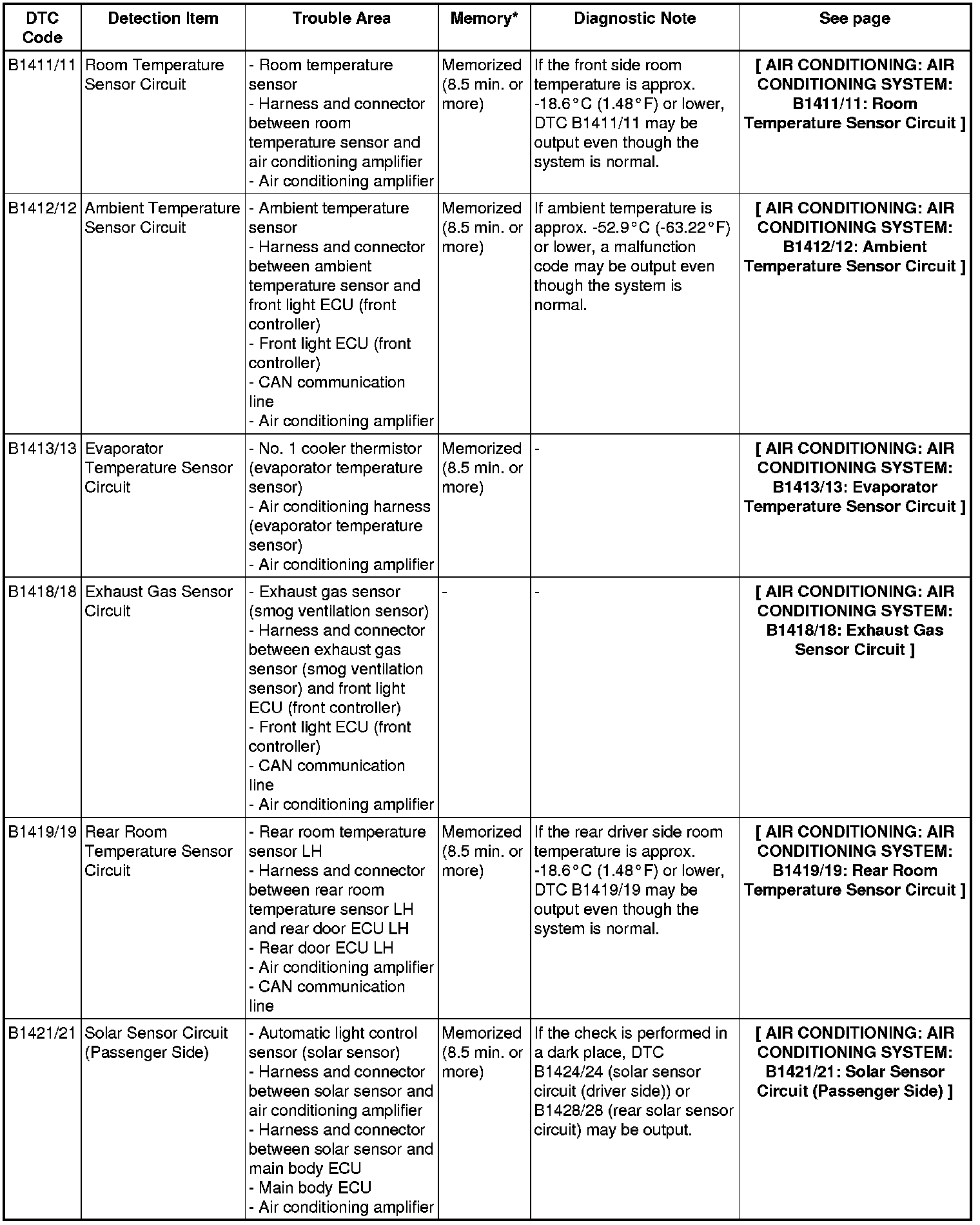

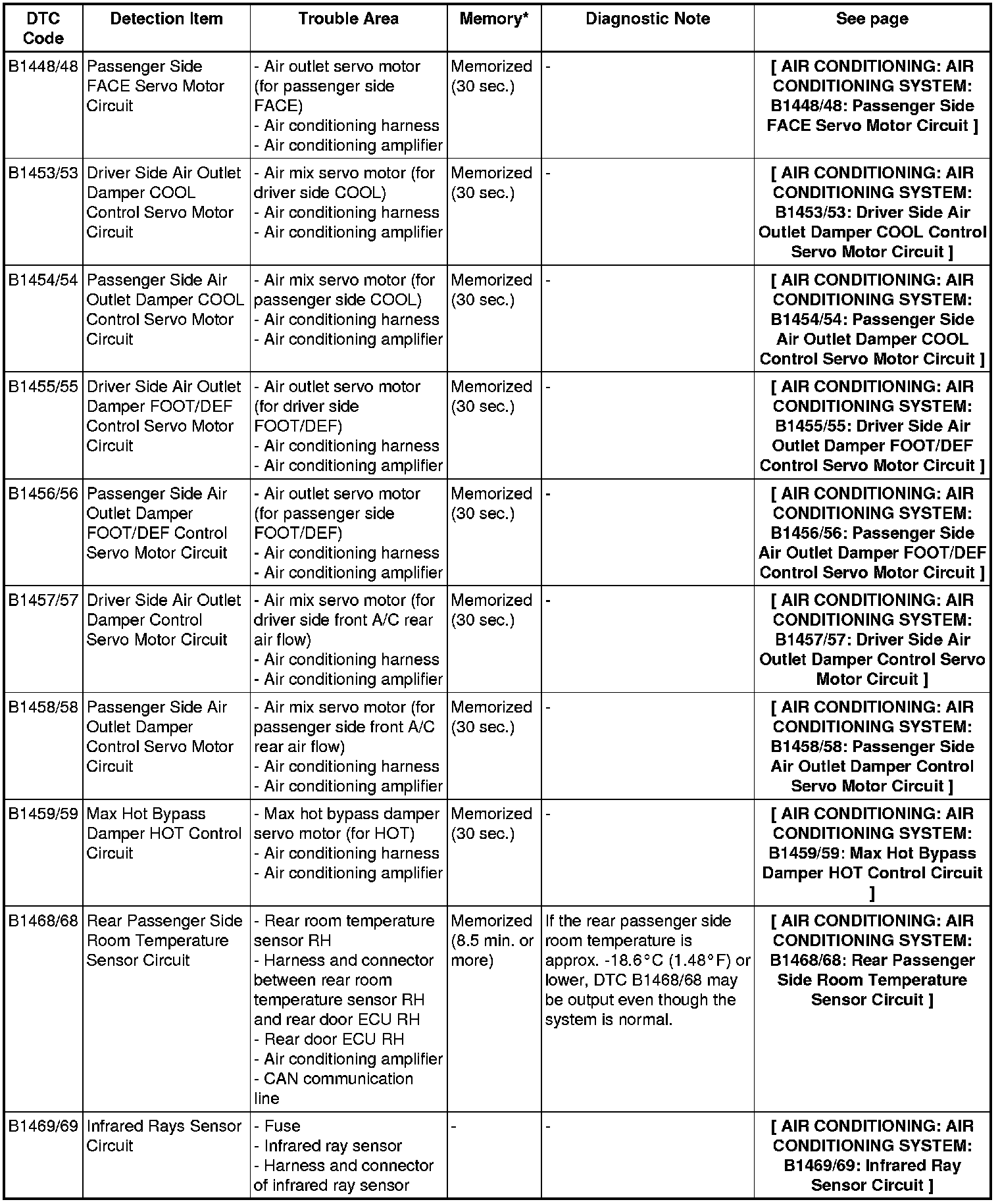

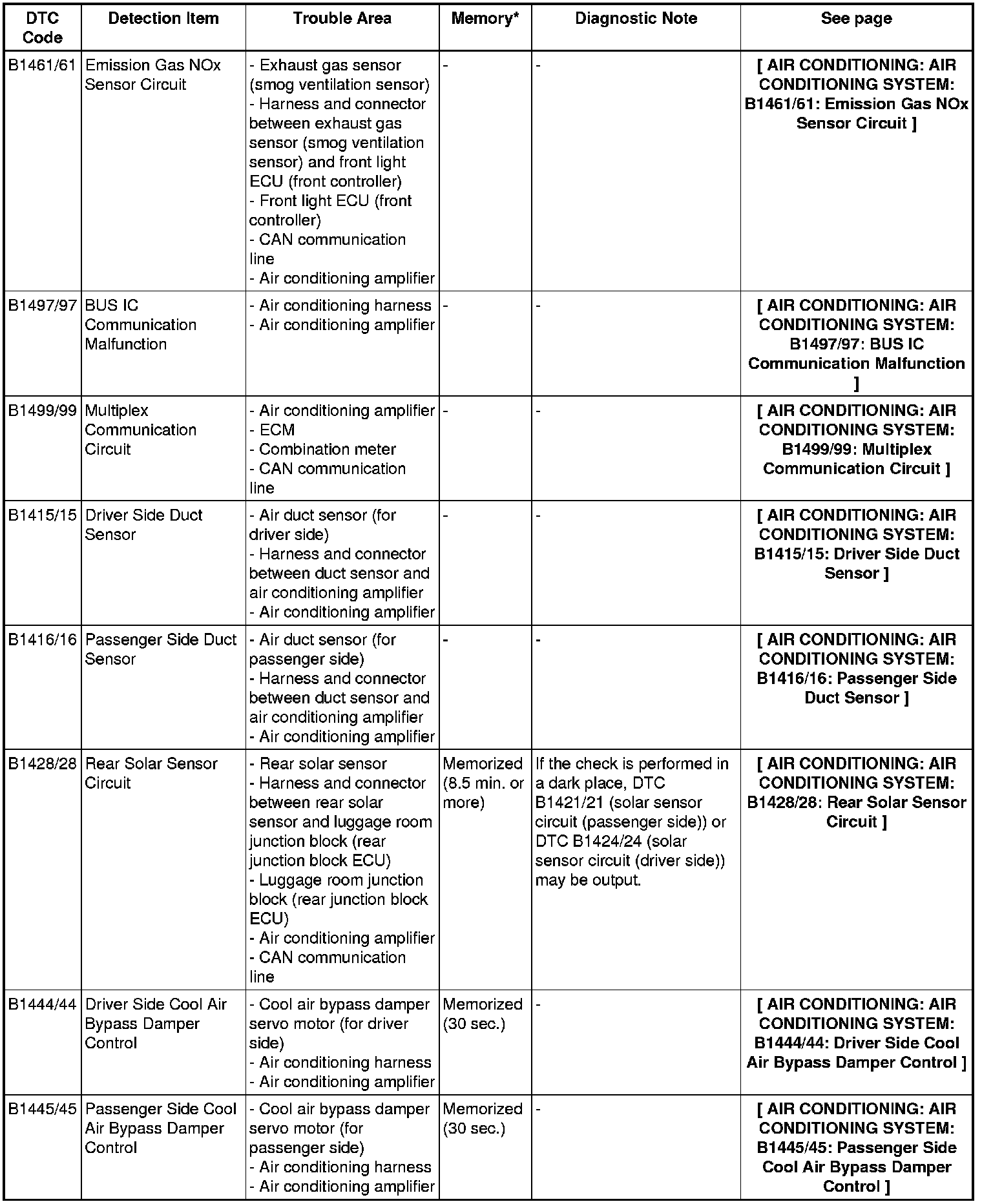

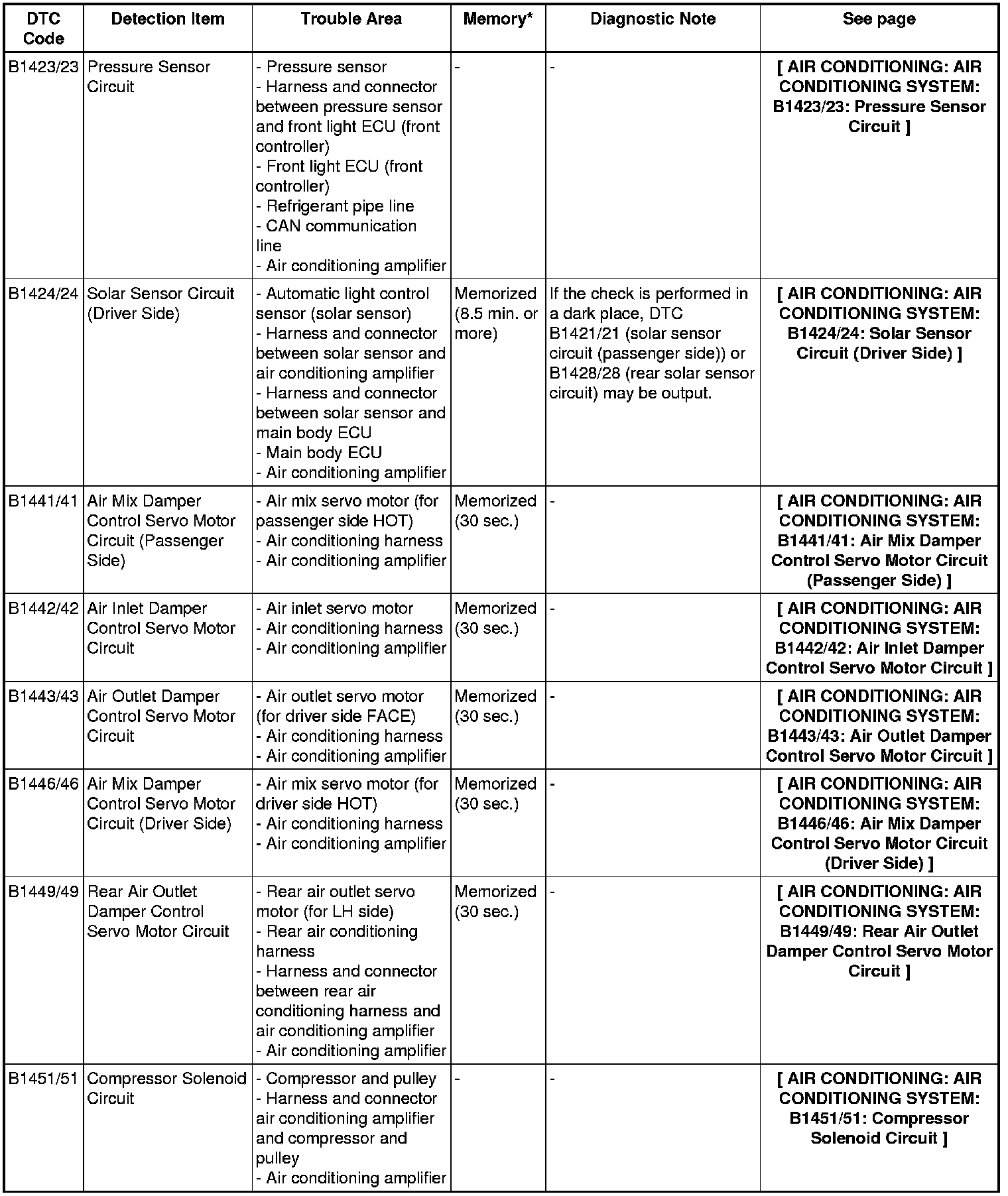

AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Air conditioning amplifier





















HINT
*: The air conditioning amplifier memorizes the DTC of the respective malfunction that has occurred for the period of the time indicated in the brackets.
