C1A50

CRUISE CONTROL: CRUISE CONTROL SYSTEM: C1A50: Brake System
C1A50 - Brake System

DESCRIPTION

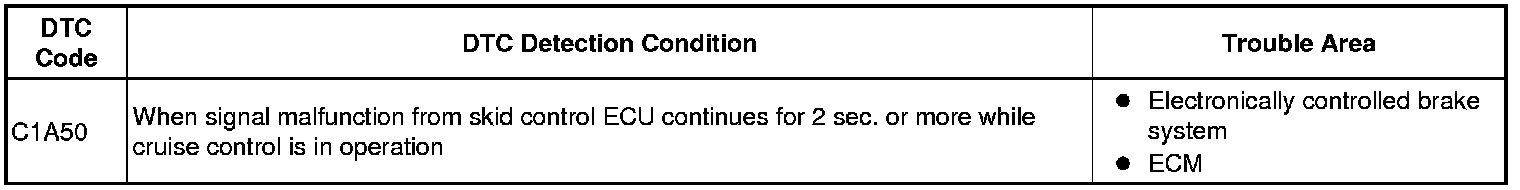

When the ECM receives electronically controlled brake system malfunctioning signal from the skid control ECU via the CAN communication line, DTC C1A50 is output.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTC Reading and Clearing Diagnostic Trouble Codes.

OK:

Electronically controlled brake system DTC is not output.

NG -- GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM Electronically Controlled Brake System
OK -- Continue to next step.

2. CHECK FOR DTC

(a) Clear the DTC DTC Check / Clear.

(b) Recheck for DTC DTC Check / Clear.

OK:

DTC C1A50 is not output.

NG -- REPLACE ECM Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
