Pre-Collision System (w/ Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): C1A46: Yaw Rate Sensor
C1A46 - Yaw Rate Sensor

DESCRIPTION

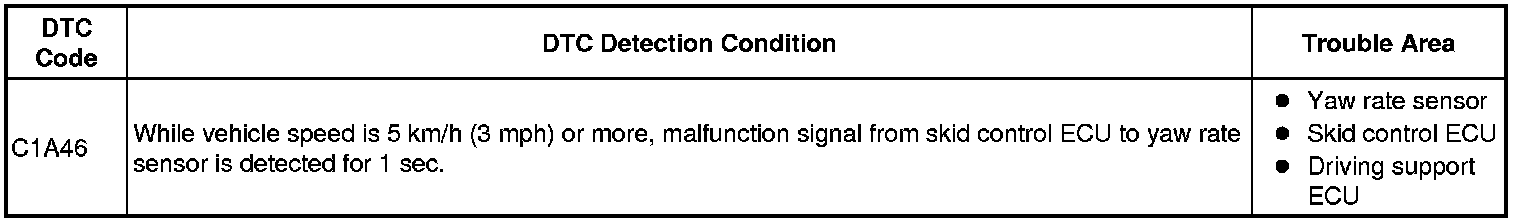

The skid control ECU receives vehicle stability signals from the yaw rate sensor and sends the signals to the driving support ECU and ECM. If the skid control ECU detects that the yaw rate sensor is malfunctioning, the skid control ECU sends a malfunction signal to the driving support ECU and outputs DTC C1A46. Also, when DTC C1A46 is output, the skid control ECU outputs DTC C1234 at the same time.

When DTC C1A46 is detected, DTC C1234 is also output from the "ABS/VSC/TRAC".





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

(a) Enter the following menus: Chassis / ABS/VSC/TRAC / Trouble Code.

(b) Select "Clear" and clear the data.

(c) Recheck for DTC.

OK:

DTC C1234 is not output.

NG -- GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM How To Proceed With Troubleshooting

OK -- REPLACE DRIVING SUPPORT ECU Removal
