Lane-Keeping Assist System

CRUISE CONTROL: LANE-KEEPING ASSIST SYSTEM: C1A0C: Object Recognition Camera Region Code Mismatch
C1A0C - Object Recognition Camera Region Code Mismatch

DESCRIPTION

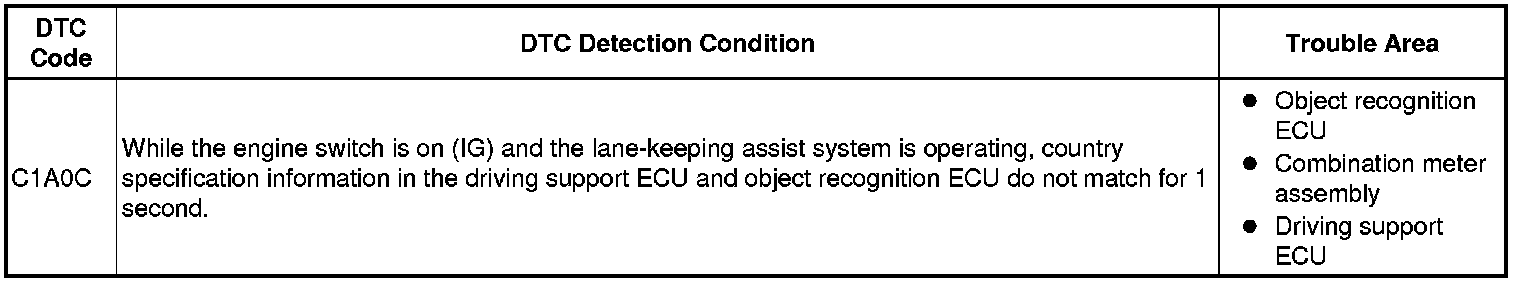

When the object recognition ECU is replaced with a new one, it acquires the country specification information from the driving support ECU. Also, when the driving support ECU is replaced with a new one, it receives the country specification information from the combination meter assembly. When the country specification information in the object recognition ECU and driving support ECU do not match, DTC C1A0C is stored.





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

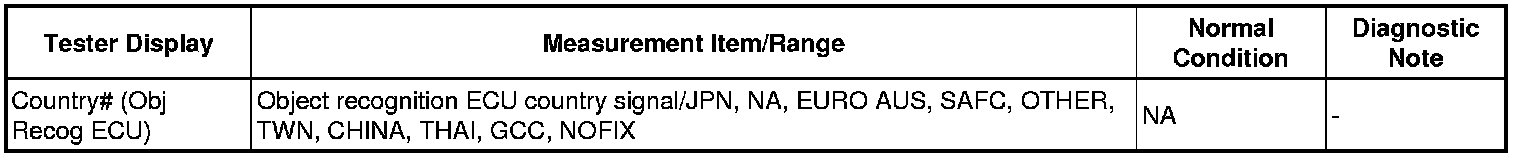

(a) Use the Data List to check if the country specification information is correct Scan Tool Testing and Procedures.

Radar Cruise





OK:

Country specification information for object recognition ECU and vehicle match.

NG -- REPLACE OBJECT RECOGNITION ECU

OK -- REPLACE DRIVING SUPPORT ECU AND COMBINATION METER ASSEMBLY
