C1567

POWER STEERING: POWER STEERING SYSTEM: C1567: Lost Communication between EPS ECU and VGRS ECU
C1567 - Lost Communication between EPS ECU and VGRS ECU

DESCRIPTION

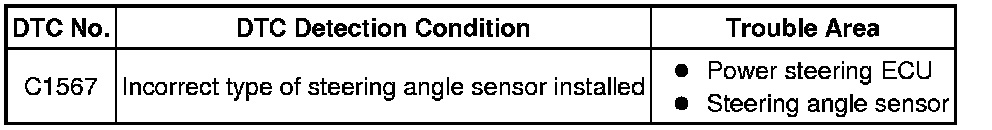

Based on the steering angle sensor signal, the power steering ECU determines if the correct type of steering angle sensor is installed.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK STEERING ANGLE SENSOR

(a) Check if a steering angle sensor that complies with the vehicle's specifications is installed.

OK:

Steering angle sensor that complies with vehicle's specifications is installed.

NG -- REPLACE STEERING ANGLE SENSOR Removal

OK -- REPLACE POWER STEERING ECU Removal
