C1528

POWER STEERING: POWER STEERING SYSTEM: C1528: Motor Rotation Angle Sensor Malfunction
C1528 - Motor Rotation Angle Sensor Malfunction

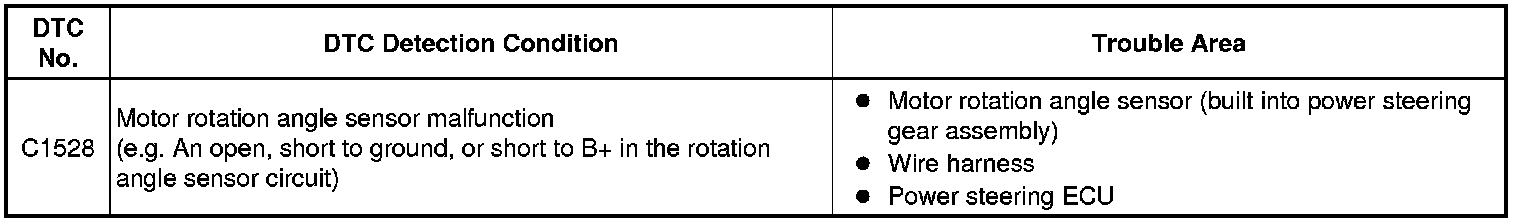

DESCRIPTION

The motor rotation angle sensor detects the motor rotation angle and sends this information to the power steering ECU.

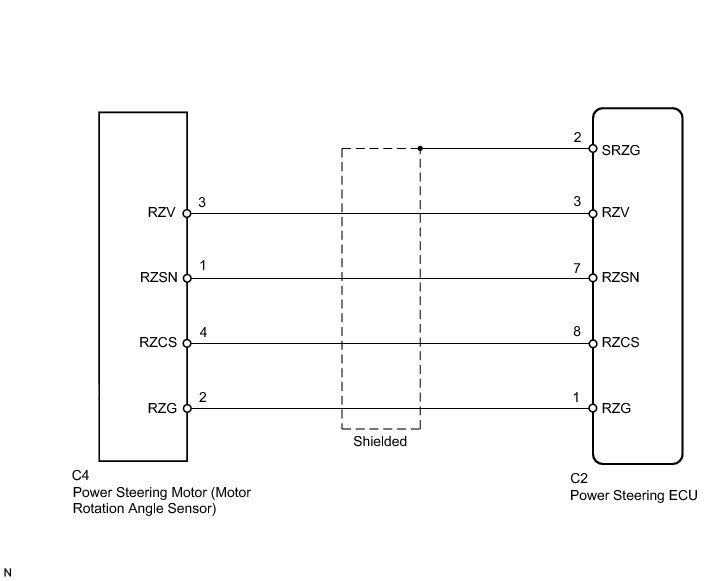

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK CONNECTORS

(a) Check the connection of the power steering ECU and rack and pinion power steering gear connectors.

(b) Visually inspect the terminals of the power steering ECU and rack and pinion power steering gear connectors.

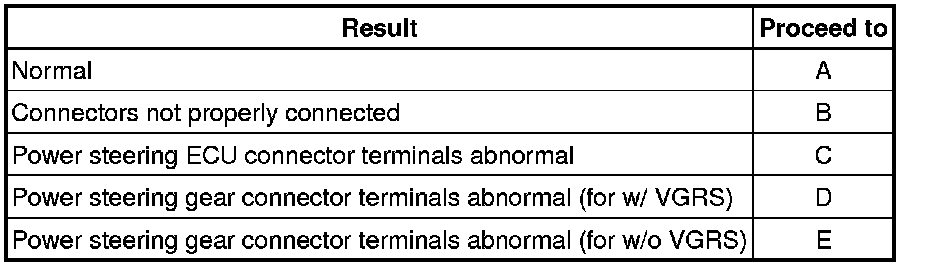

Result:





B -- CONNECT CONNECTORS CORRECTLY

C -- REPLACE POWER STEERING ECU Removal

D -- REPLACE POWER STEERING GEAR ASSEMBLY (w/ VGRS) Removal

E -- REPLACE POWER STEERING GEAR ASSEMBLY (w/o VGRS) Removal
A -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU - MOTOR ROTATION ANGLE SENSOR)

(a) Disconnect the C4 sensor connector.





(b) Disconnect the C2 ECU connector.

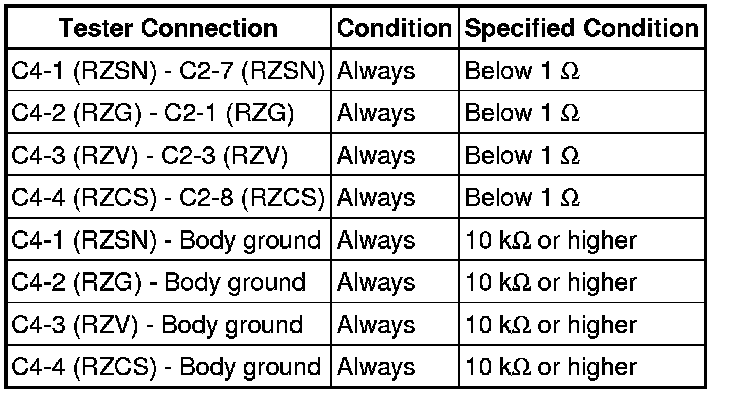

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

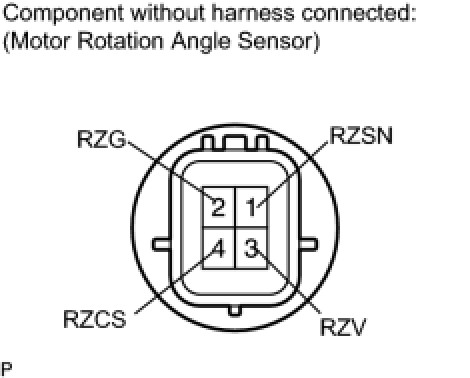

3. INSPECT POWER STEERING GEAR ASSEMBLY (MOTOR ROTATION ANGLE SENSOR)

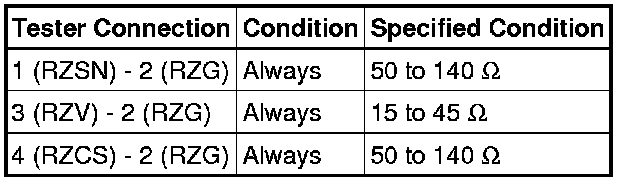

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NOTICE:
If replacing the power steering gear assembly, clear the rotation angle sensor calibration value, initialize the rotation angle sensor value, and calibrate the torque sensor zero point Power Steering System.

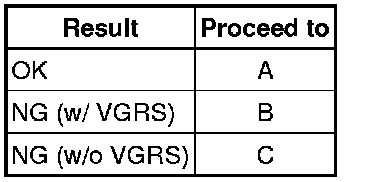

Result:





B -- REPLACE POWER STEERING GEAR ASSEMBLY (w/ VGRS) Removal

C -- REPLACE POWER STEERING GEAR ASSEMBLY (w/o VGRS) Removal
A -- Continue to next step.

4. REPLACE POWER STEERING ECU

(a) Replace the power steering ECU Removal.

NEXT -- Continue to next step.

5. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

(a) Initialize the rotation angle sensor value and calibrate the torque sensor zero point Power Steering System.

NEXT -- Continue to next step.

6. RECONFIRM DTC

(a) Check for DTCs Power Steering System.

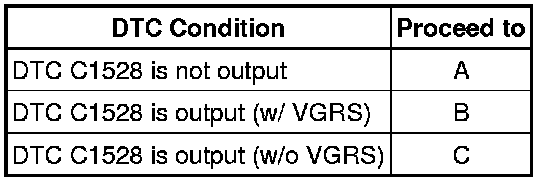

Result:





NOTICE:
If replacing the power steering gear assembly, clear the rotation angle sensor calibration value, initialize the rotation angle sensor value, and calibrate the torque sensor zero point Power Steering System.

B -- REPLACE POWER STEERING GEAR ASSEMBLY (w/ VGRS) Removal

C -- REPLACE POWER STEERING GEAR ASSEMBLY (w/o VGRS) Removal

A -- END
