C13AF

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: C13AF/11: Electric Parking Brake System Malfunction
C13AF/11 - Electric Parking Brake System Malfunction

DESCRIPTION

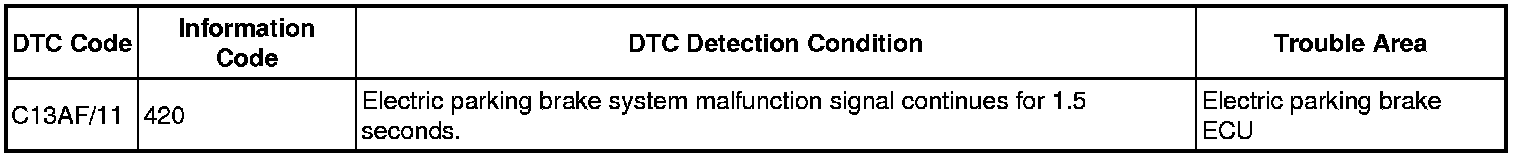

The skid control ECU is connected to the electric parking brake ECU via CAN communication. If an electric parking brake system malfunction occurs, this code is output.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC FOR ELECTRIC PARKING BRAKE SYSTEM

(a) Clear the DTC (Electric parking brake system) Reading and Clearing Diagnostic Trouble Codes.

(b) Check the DTC (Electric parking brake system) Reading and Clearing Diagnostic Trouble Codes.

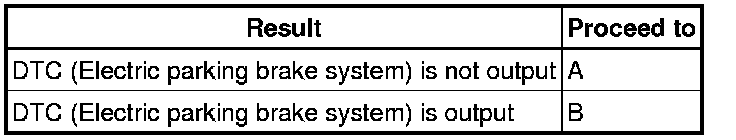

Result





B -- GO TO ELECTRIC PARKING BRAKE SYSTEM How To Proceed With Troubleshooting

A -- END
