STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: B2624: Vehicles Speed Malfunction

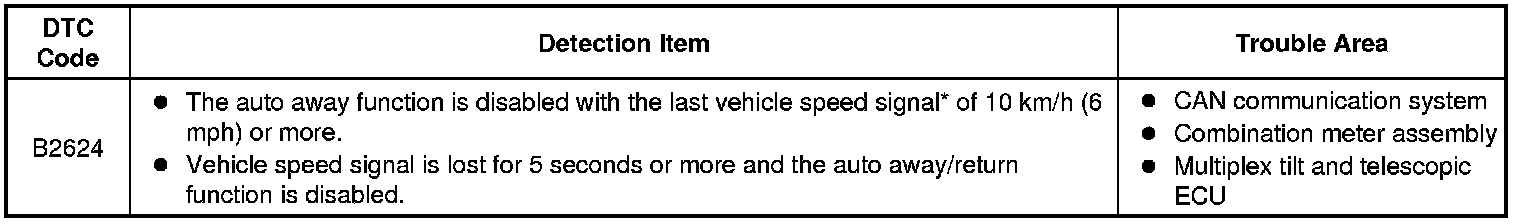

B2624 - Vehicles Speed Malfunction

DESCRIPTION

The multiplex tilt and telescopic ECU forms a network with the ECUs of other systems through the communication bus. Each ECU informs the other ECUs that they are connected to the network by outputting a specified signal (periodic signal) to the communication bus at a regular basis. The multiplex tilt and telescopic ECU receives vehicle speed signals from the combination meter via the communication bus to prevent improper operation of the auto away/return function during driving.





HINT
*: If the engine switch is turned off immediately after the vehicle comes to a sudden stop, the last vehicle speed signal may not be 0 km/h (0 mph).

INSPECTION PROCEDURE

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check the "COMMUNICATION STOP MODE TABLE" of the CAN communication system How to Proceed With Troubleshooting.

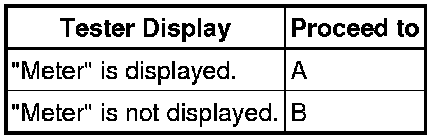

Result:





B -- GO TO CAN COMMUNICATION SYSTEM CAN Communication System
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (SPEED SIGNAL)

(a) Use the Data List to check if the speed signal is functioning properly.

Tilt & Telescopic:

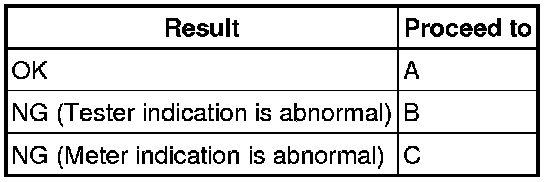

Result:





HINT
Vehicle speed of 3 km/h (2 mph) or more may be displayed on the tester screen immediately after the vehicle comes to a sudden stop. This is caused by a delay in vehicle signal input via the communication bus and is not a malfunction.

B -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal

C -- CHECK COMBINATION METER SYSTEM How To Proceed With Troubleshooting

A -- REPLACE MULTIPLEX TILT AND TELESCOPIC ECU Removal
