B2274 - ACC Monitor Malfunction

DESCRIPTION

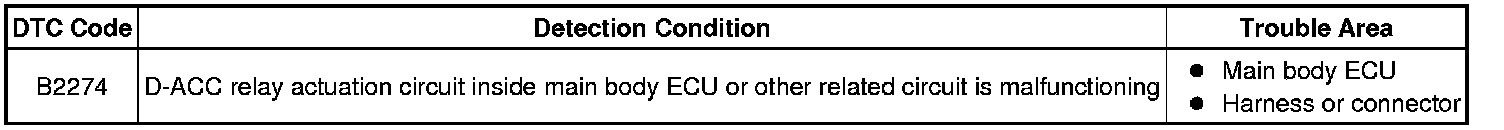

This DTC is output when a malfunction occurs in the ACCD output circuit, which is between the D-ACC relay actuation circuit inside the main body ECU and the D-ACC relay.

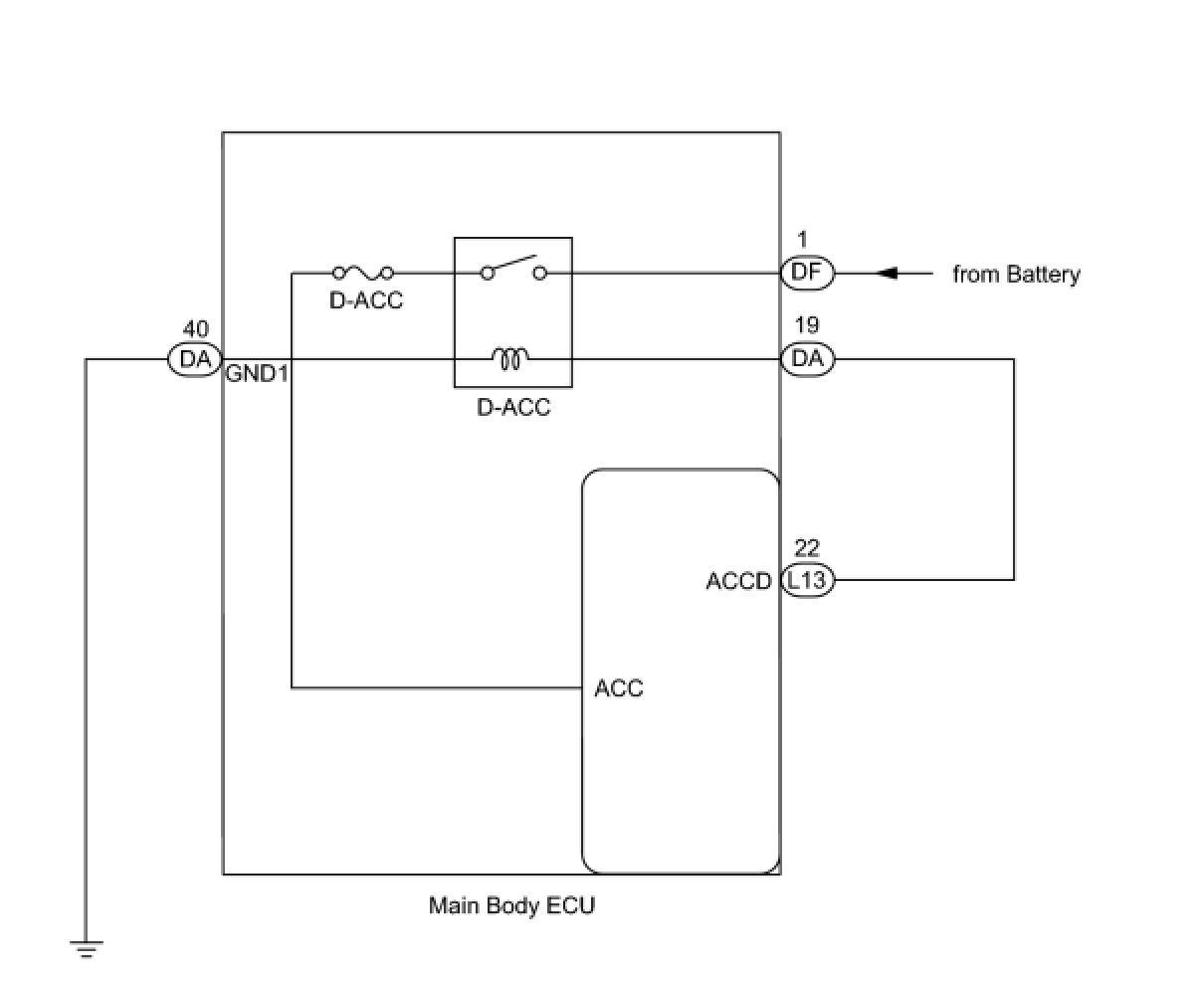

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (D-ACC RELAY MONITOR)

(a) Use the Data List to check if the ACC relay is functioning properly.

Main Body





OK:

When the engine switch is turned on (IG), ON is displayed on the Techstream.

NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BODY GROUND)
OK -- Continue to next step.

2. CHECK ENGINE SWITCH (SWITCH CONDITION)

(a) Ensure the key is inside the cabin.

(b) Check that the power source mode changes as shown below each time the engine switch is pushed.

OK:

off -> on (ACC) -> on (IG) -> off

NG -- GO TO POWER SOURCE MODE DOES NOT CHANGE Power Source Mode does not Change

OK -- NORMAL

3. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BODY GROUND)

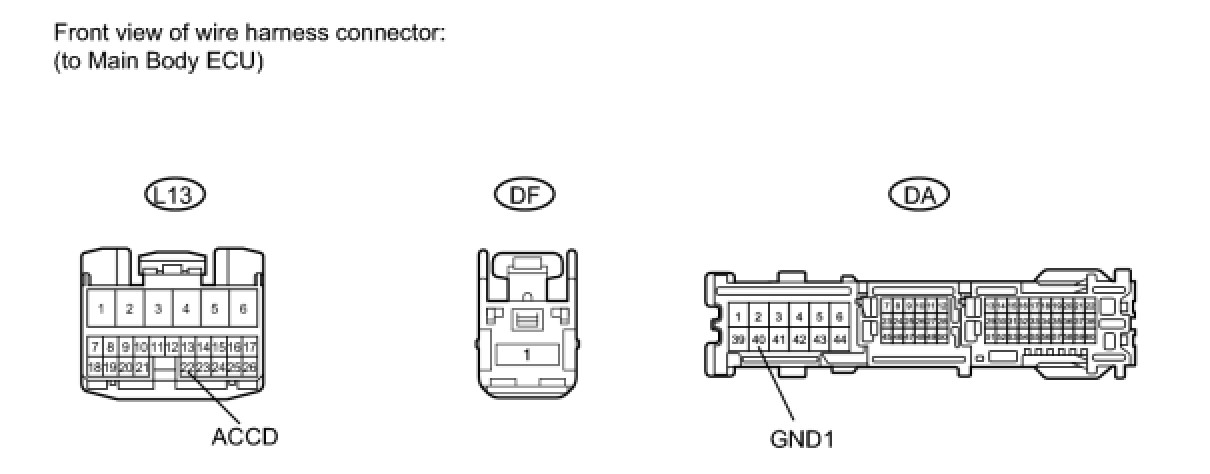

(a) Disconnect the L13, DF and DA main body ECU connectors.

(b) Measure the resistance and voltage according to the value(s) in the table below.

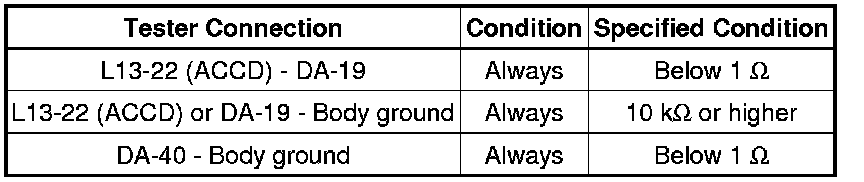

Standard resistance:





Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE MAIN BODY ECU
