Pre-Collision System (w/o Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/o Driver Monitor Camera): B2090: Driving Support System Malfunction
B2090 - Driving Support System Malfunction

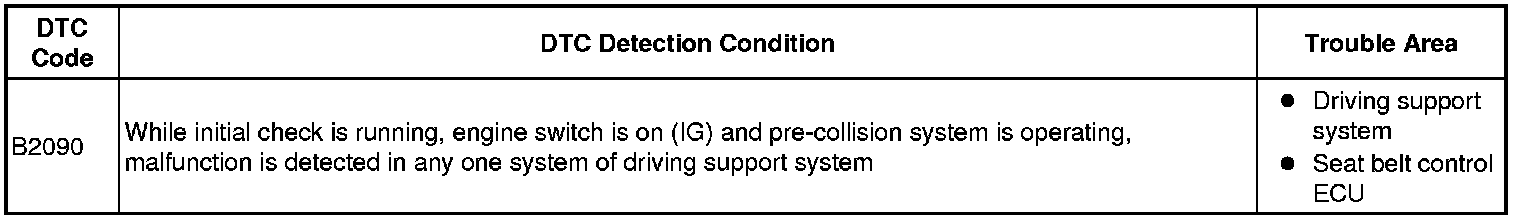

DESCRIPTION

The seat belt control ECU receives collision information from the driving support ECU and skid control ECU via CAN communication, and tightens the seat belt by operating the motor inside the front seat outer belt assembly.

When the driving support ECU detects a malfunction in the dynamic radar cruise control system, lane-keeping assist system, and pre-collision system ("Pre-Collision 2" part), or detects that the object recognition camera has not been adjusted, the malfunction information is sent to the seat belt control ECU, which outputs this DTC.

When DTC B2090 is detected, other DTCs output by the driving support ECU (dynamic radar cruise control system, and pre-collision 2 also are output.





INSPECTION PROCEDURE

HINT
When clearing the DTCs, first clear the DTC output from the driving support ECU, and then clear the DTC output from the seat belt control ECU.

PROCEDURE

1. CHECK DRIVING SUPPORT ECU

(a) Enter the following menus: Body Electrical / Pre-Collision 2, Cruise Control / Trouble Code.

(b) Check for DTCs.

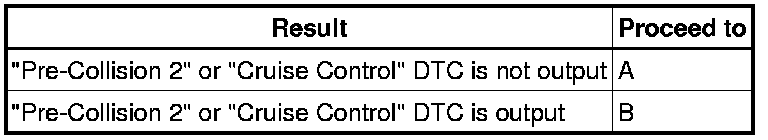

Result





B -- GO TO RELEVANT FLOWCHART
A -- Continue to next step.

2. CHECK SEAT BELT CONTROL ECU

(a) Enter the following menus: Body Electrical / Pre-Collision 1 / Trouble Code /

(b) Select "Clear" and clear the data.

(c) Recheck for DTCs.

OK:

DTC B2090 is not output.

NG -- REPLACE SEAT BELT CONTROL ECU Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
