Pre-Collision System (w/ Driver Monitor Camera)

PRE-COLLISION: PRE-COLLISION SYSTEM (w/ Driver Monitor Camera): B2060: ABS Malfunction
B2060 - ABS Malfunction

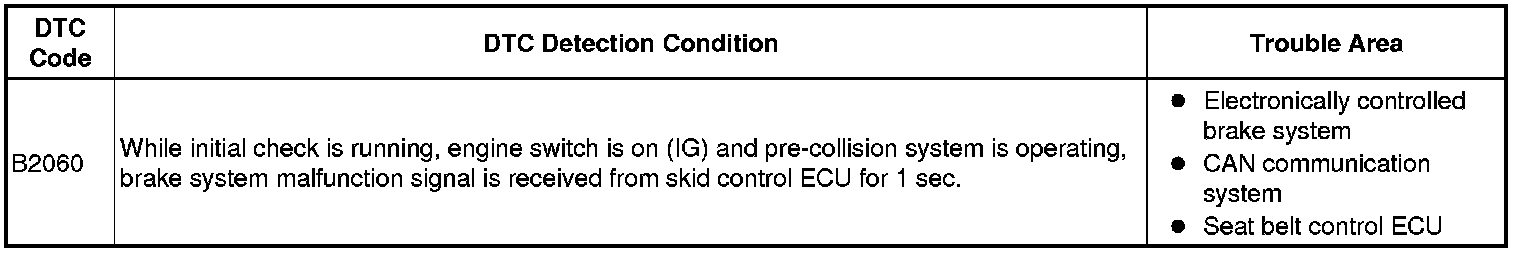

DESCRIPTION

This DTC is output when a malfunction in the brake system is detected. This circuit consists of the skid control ECU and seat belt control ECU. Signals are sent from the skid control ECU to the seal belt control ECU through the CAN communication line.

When DTC B2060 is detected, ABS system DTCs will also be detected.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC (ELECTRONICALLY CONTROLLED BRAKE SYSTEM)

(a) Enter the following menus: Chassis / ABS/VSC/TRAC / Trouble Code.

(b) Check for DTCs.

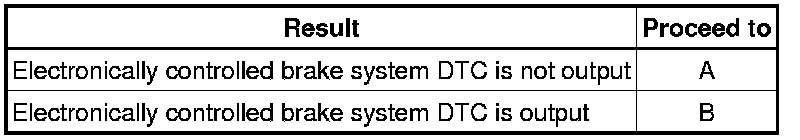

Result





B -- GO TO ELECTRONICALLY CONTROLLED BRAKE SYSTEM How To Proceed With Troubleshooting

A -- REPLACE SEAT BELT CONTROL ECU Removal
