B1610

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1610/13: Front Airbag Sensor RH Malfunction
B1610/13 - Front Airbag Sensor RH Malfunction

DESCRIPTION

The front airbag sensor RH consists of the diagnostic circuit, the frontal deceleration sensor, etc.

If the center airbag sensor receives signals from the frontal deceleration sensor, it determines whether the SRS should be activated.

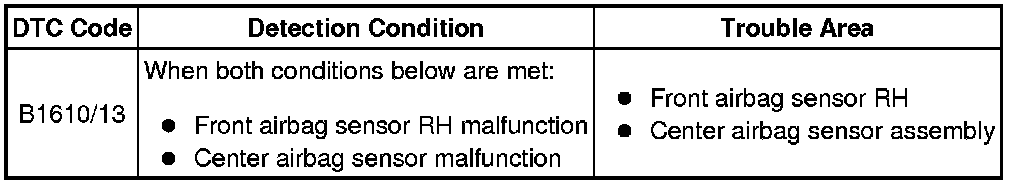

DTC B1610/13 is recorded when a malfunction is detected in the front airbag sensor RH circuit.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

PROCEDURE

1. CHECK FRONT AIRBAG SENSOR RH





(a) Turn the engine switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Interchange the front airbag sensor LH with RH and connect the connectors to them.

(d) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(e) Turn the engine switch on (IG), and wait for at least 60 seconds.

(f) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.

(g) Turn the engine switch off.

(h) Turn the engine switch on (IG), and wait for at least 60 seconds.

(i) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

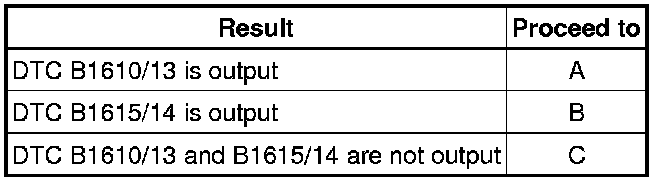

Result





HINT
Codes other than DTC B1610/13 and B1615/14 may be output at this time, but they are not related to this check.

A -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Components

B -- REPLACE FRONT AIRBAG SENSOR RH Components

C -- USE SIMULATION METHOD TO CHECK Diagnosis System
